ReadyLift - 2.5" SST Lift Kit - 2011-2016 Ford Super Duty F250/F350 (4WD) - 69-2524

2.5" front / 2.0" rear SST lift kit for the 2011-2016 Ford Super Duty F250/F350 4WD with one-piece drive shaft.

This ReadyLift SST kit builds on the F250 leveling package by adding an OEM-style 4.0" cast-iron rear block for near-factory rake, giving a lifted stance with a slight rake ideal for towing or hauling while retaining the smooth OEM ride. It uses ReadyLift Smart Suspension Technology and installs with no cutting or drilling.

Fits: 2011-2016 Ford Super Duty F250/F350 4WD with one-piece drive shaft. Not compatible with aftermarket or factory add-on air spring/load-leveling kits that attach to the bump stop tangs.

Features

• 2.5" front lift and 2.0" rear lift for a slight tow/haul rake
• Powder-coated steel coil spring spacers with poly sound isolators retain OEM ride and quiet
• Front shock extensions let you keep the factory front shocks
• Front sway bar frame mount spacers to level the front suspension
• Track bar relocation bracket for improved steering quality
• Carrier bearing spacer to adjust driveshaft angle
• OEM-style 4.0" cast-iron rear lift blocks with longer U-bolts
• No cutting or drilling required (Smart Suspension Technology)

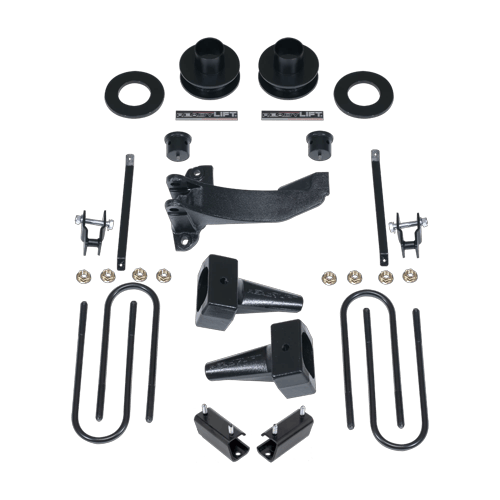

Kit Includes

• Two coil spring spacers with poly sound isolators
• Two front shock extensions
• Two front sway bar mount spacers
• One front track bar relocation bracket
• Two OEM-style cast rear lift blocks with longer U-bolts and hardware
• Two bump stop extensions
• Extended-length front brake line brackets

Tire Fitment

Up to 35" tires (35x12.50 on a 9" wide, 0-offset wheel). 18": 315/70R18; 20": 295/65R20 or 325/60R20; 22": 35x12.5R22.

Notes

For F250 trucks with one-piece drive shaft only. Estimated installation time about 6 hours; alignment recommended after installation. Backed by ReadyLift's lifetime warranty against manufacturing defects.
