Manufactured with 0.6" large internal bores, the Radium Engineering fuel rails can support all necessary engine power requirements. The 2 end ports are 3/4"-16 threaded (8AN ORB). The upper area of the engine is very narrow so the 2 top ports are 9/16"-18 threaded (6AN ORB).

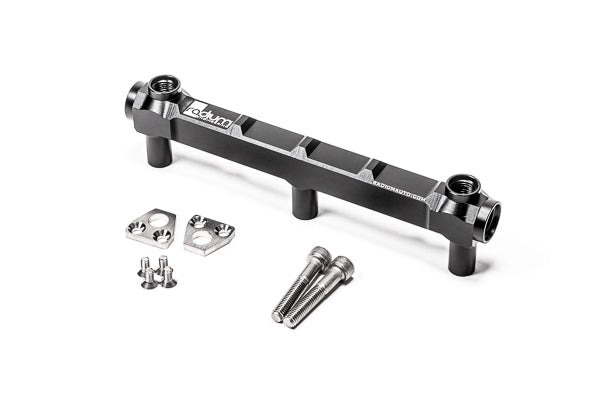

20-0766 Fuel Rail Toyota G16E-GTS
Includes the fuel rail and all of the necessary mounting hardware. This is ideal for those wanting to make a custom fuel system.
The fuel rail ports are tapped for 6AN ORB and 8AN ORB.
- 6AN ORB Adapter Fittings can be found HERE
- 8AN ORB Adapter Fittings can be found HERE
- 8AN ORB Fuel Pulse Dampers can be found HERE
- Fuel Pressure Gauge Adapters can be found HERE
- Direct Mount Regulators can be found HERE
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
FEATURES
- Anodized surface finish for wear and corrosion resistance
- Lightweight aluminum construction
- Inner bore diameter: 0.6 inch
- Can be converted to a pressure regulated return system
- No special tools required for installation

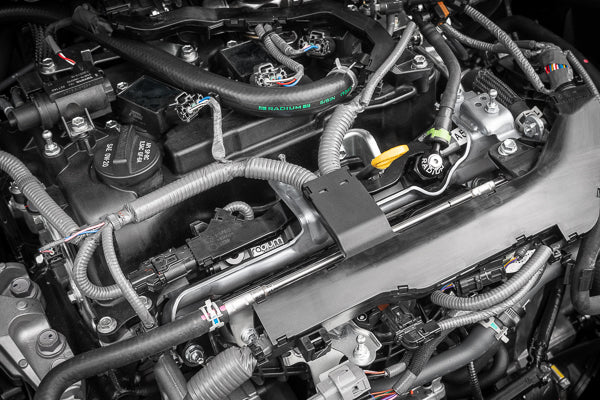

- Fits under the factory engine cover

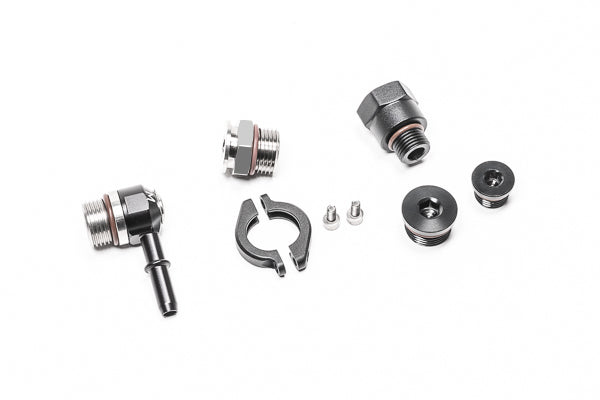

20-0766-PK Fuel Rail Plumbing Kit Toyota G16E-GTS
When used in conjunction with he 20-0766 fuel rail, the 20-0766-PK add-on plumbing kit permits a plug and play connection to the factory G16E-GTS fuel system. This kit includes all fittings needed for installation.
