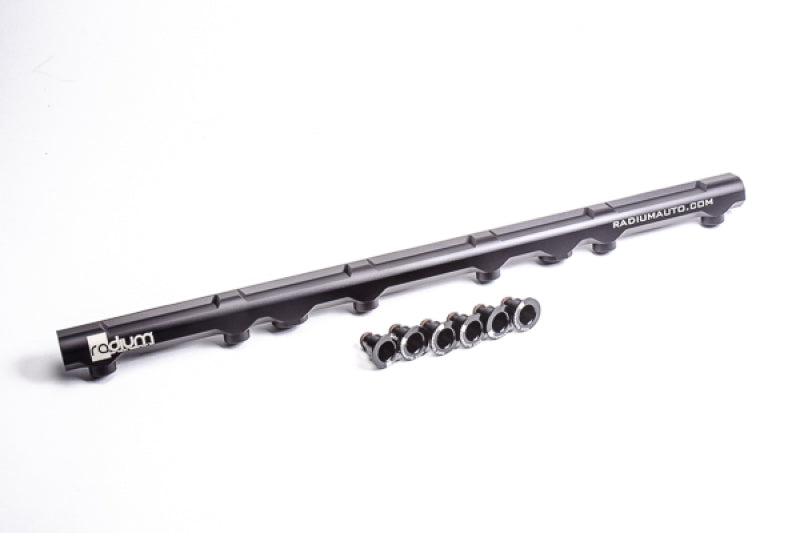

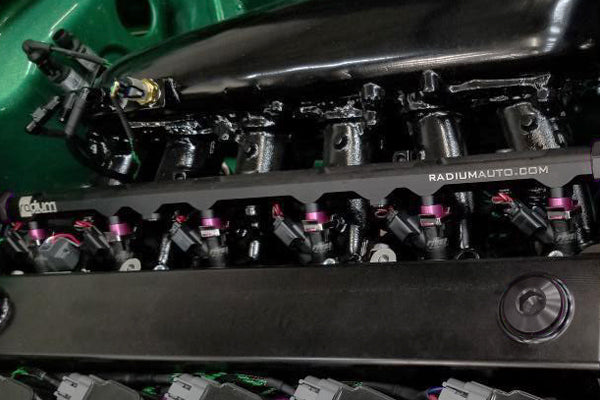

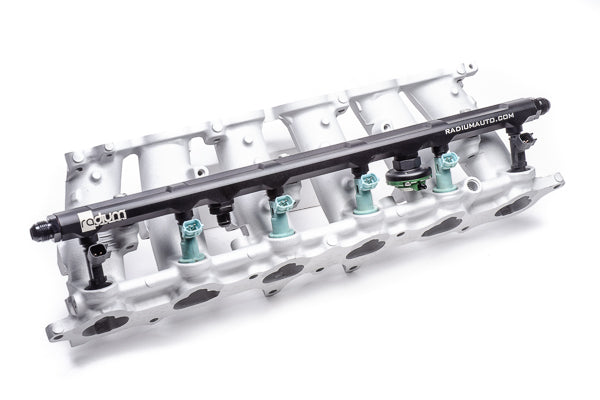

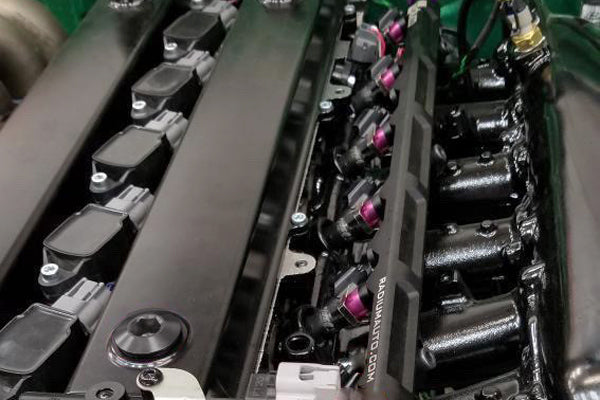

The Radium fuel rail for the 6-cylinder Toyota 2JZ-GE (Non-Turbo) engine is manufactured with a large 8AN ORB internal bore supporting all horsepower requirements. They are CNC machined from 6063 aluminum, black anodized, and laser etched for a high quality surface finish. For flexibility, the fuel rail features four 8AN ORB ports and is compatible with all fuel types including popular alcohol mixtures such as E85.
Late model 2JZ-GE vehicles use a returnless fuel system where the fuel pressure regulator (FPR) is integrated into the pump assembly. However, early model 2JZ-GE vehicles use a traditional fuel system with the FPR mounted directly to the fuel rail. For these setups, an aftermarket fuel pressure regulator will be required.
This fuel rail features four ports (both ends and two on the bottom) that are female tapped for 8AN ORB fittings. However, the front port is not useable unless the OEM engine harness is modified.
- 8AN ORB Adapter Fittings can be found HERE
- 8AN ORB Direct Mount Regulators can be found HERE
- 8AN ORB Fuel Pulse Dampers can be found HERE
- Fuel Pressure Gauge Adapters can be found HERE
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
