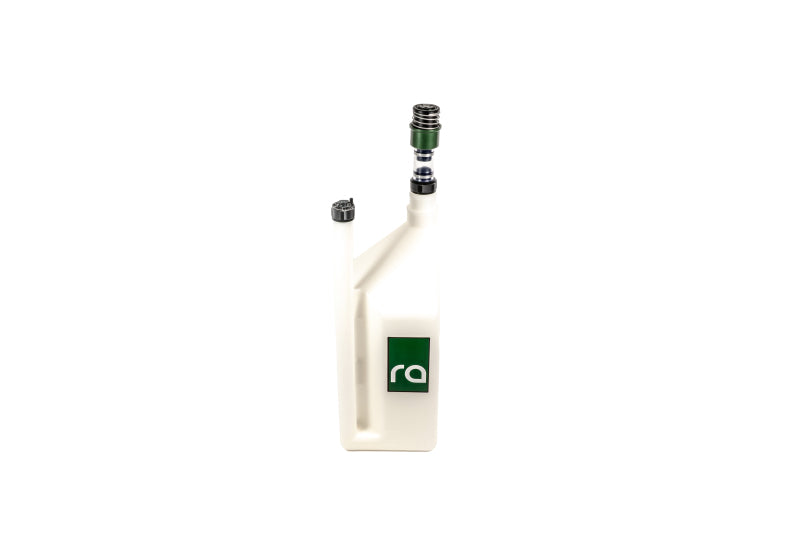

This dump can assembly includes a Radium Engineering dry break probe compatible with 1.5" dry break receptacles. The short tube is clear for fuel fill monitoring. The new PRV (pressure relief valve) feature permits the sealed side of the dump can to be vented when exposed to warm temperatures. To purge air pressure, simply push down on the center stainless steel valve.
This dump can features knurled aluminum pour and vent caps. And because these unscrew, filling the dump can is a quick efficient process.

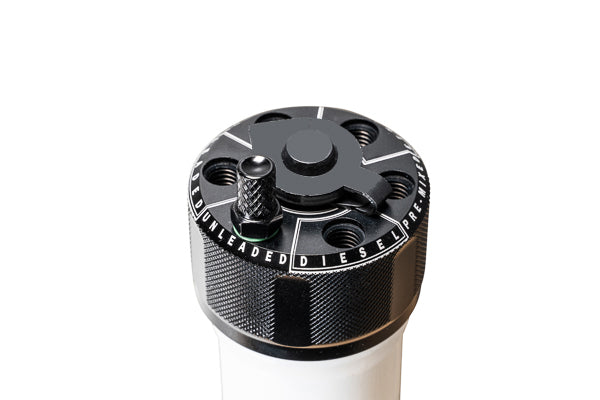

The vent cap features 6 different fuel type indicators: (UNLEADED, LEADED, METHANOL, ETHANOL, PRE-MIXED, DIESEL). The small knob can be screwed into the appropriate threaded hole to mark the fuel type inside. For a slower and more controlled filling, the plastic flip cap can be simply unlatched. For quicker filling, the entire vent cap can be unscrewed. Use this method with caution.
NOTES
- The plastic pour spout can be cut to suit 2.5" and 3" dry breaks
- For maximum flow efficiency, the fuel tank (or fuel cell) should have a large vent (see Radium P/N: 20-0535)
