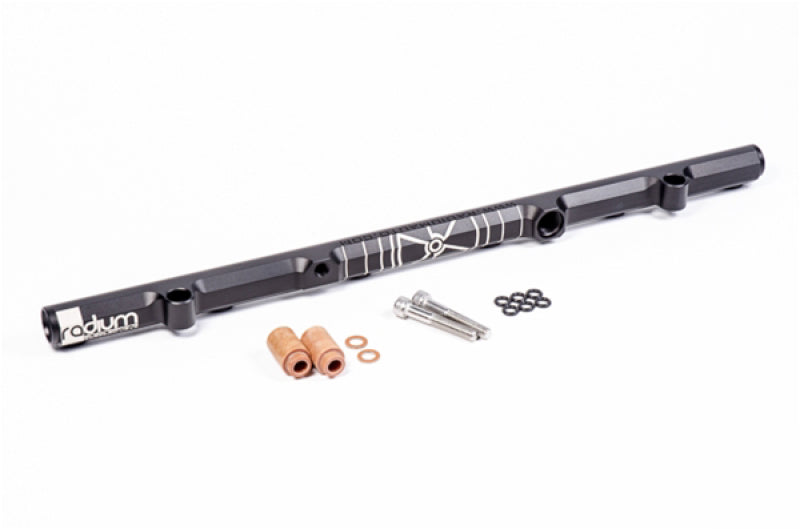

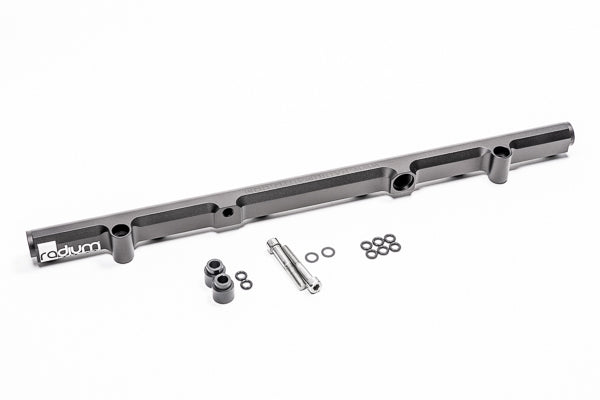

This 89-02 Nissan Skyline GT-R fuel rail is designed specifically for OEM (R32/R33/R34) RB26DETT intake manifolds. Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from a custom 6063 aluminum extrusion and black anodized and laser etched for a high quality surface finish. The rail is compatible with all fuel types including popular alcohol mixtures such as E85.
For thermal insulation, press-fit machined spacers and washers are included to completely isolate the fuel rail from heat transfer via the manifold and mounting bolts.

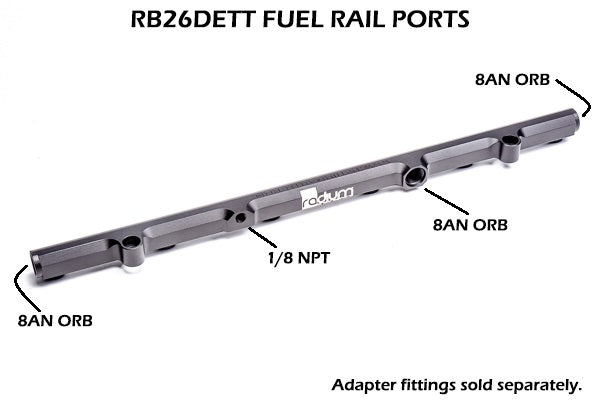

This fuel rail features three 8AN ORB ports, two located at the ends and one in the middle. It also features one 1/8NPT port.
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
The front, rear, and center ports use 8AN ORB (3/4"-16 O-ring threads) to accept many adapter fittings for custom high flow fuel system builds.
NOTE: This fuel rail does NOT come standard with fittings (see plumbing kit below).
