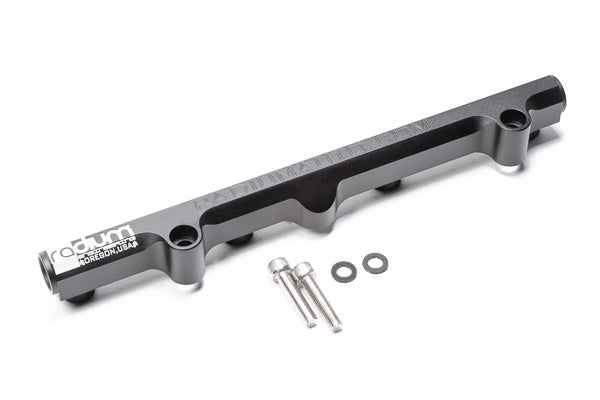

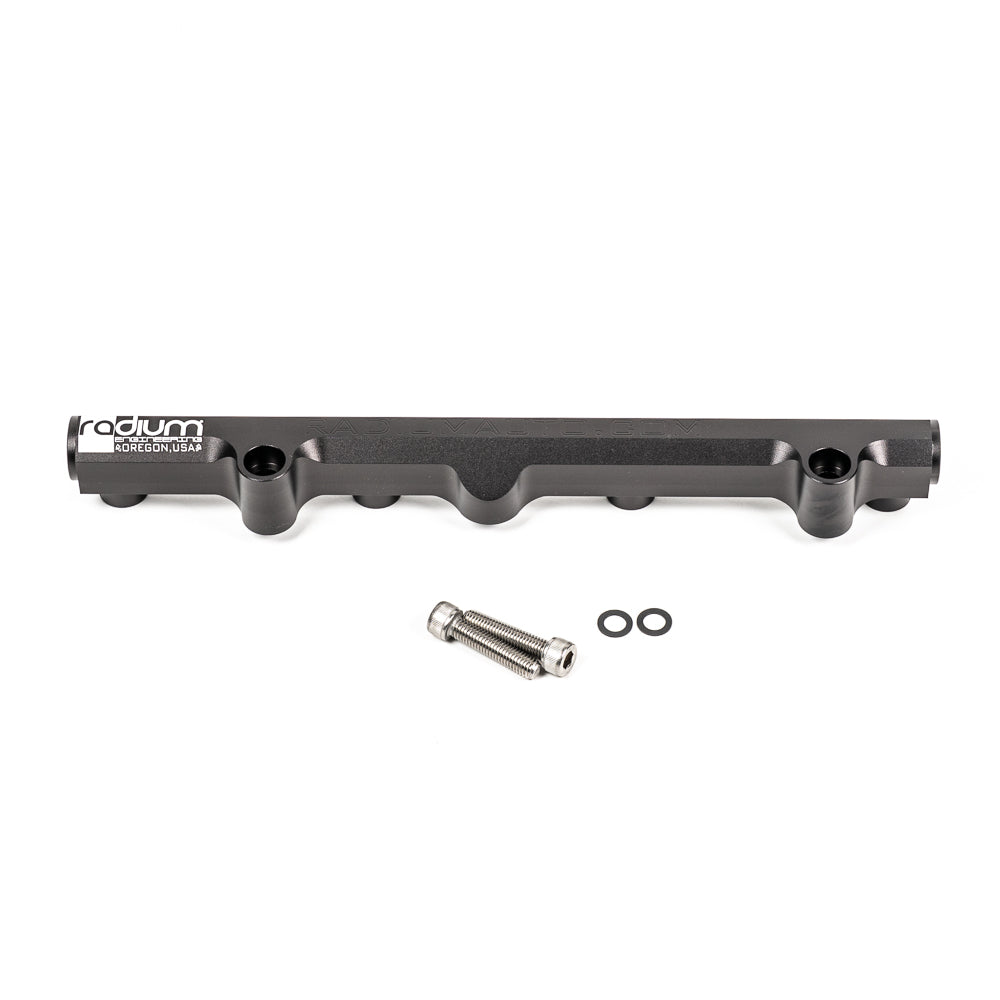

Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from extruded 6063 aluminum, media blasted, black anodized, and laser etched for a high quality surface finish. Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. The fuel rail is equipped with features to accept the OEM fuel injector clips (shown below).
The fuel rail ports are tapped for 8AN ORB. Fittings ARE NOT included with the fuel rail and must be purchased separately.
- 8AN ORB Adapter Fittings can be found HERE
- 8AN ORB Direct Mount Regulators can be found HERE
- 8AN ORB Fuel Pulse Dampers can be found HERE
- Fuel Pressure Gauge Adapters can be found HERE
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

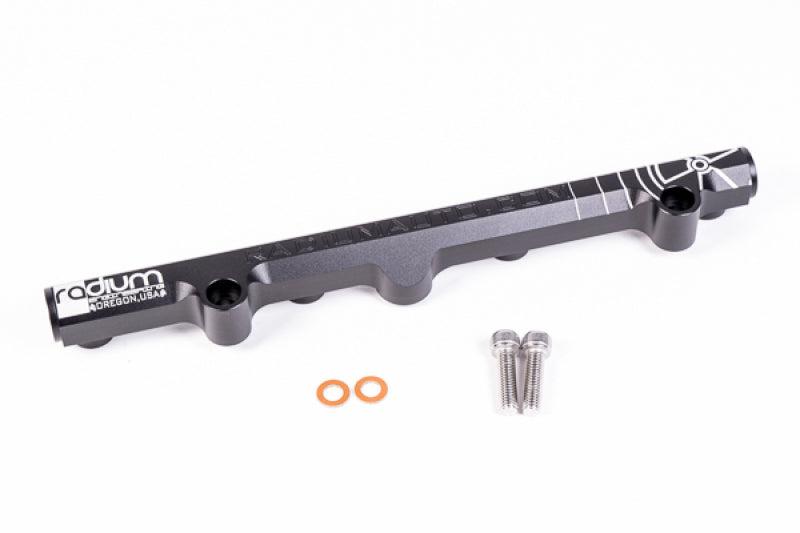

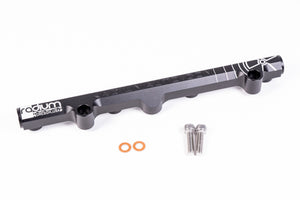

This part only includes the fuel rail and the mounting hardware making it ideal for custom fuel plumbing applications. If using the stock fuel feed line, select the plumbing kit shown below.
