Radium Engineering Fuel Rails Audi R8 Lamborghini Huracan - 20-0866

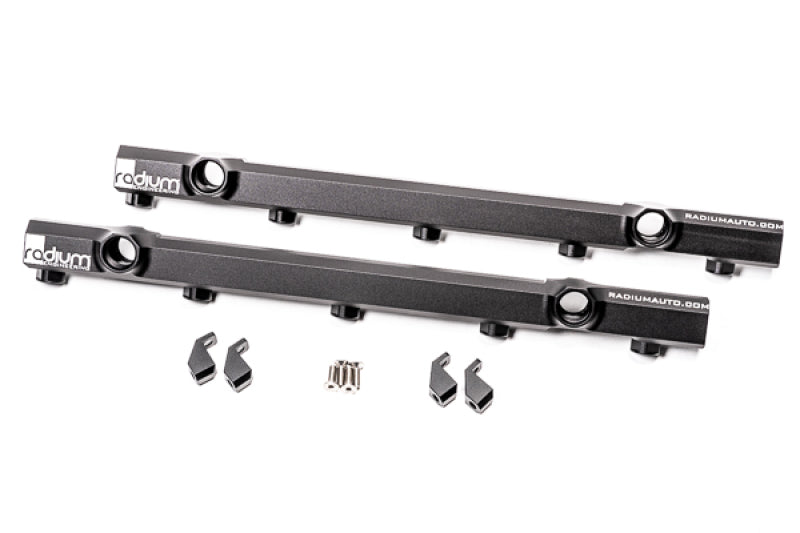

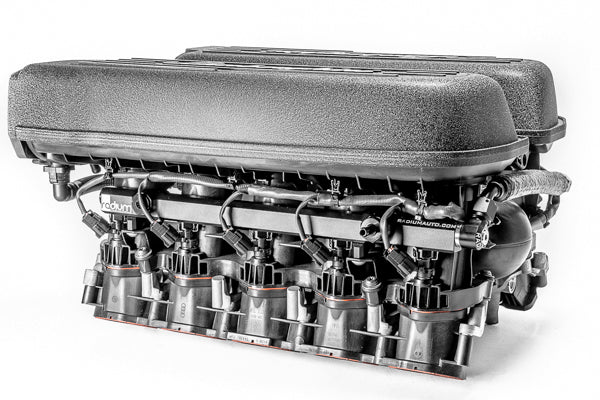

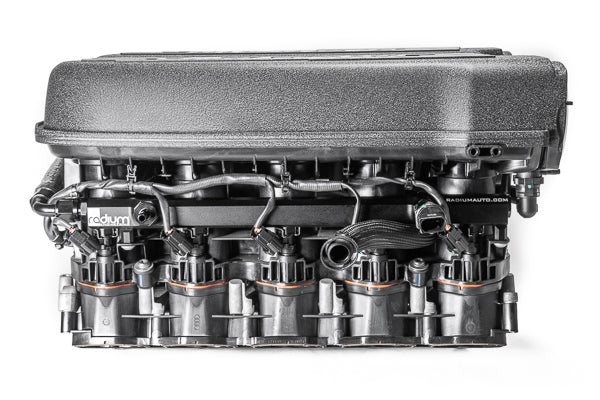

Manufactured with very large 0.7" internal bores, the fuel rails can support all necessary engine power requirements. They are CNC machined from 6061 aluminum, anodized, and laser etched for a high quality surface finish. Each fuel rail has four 8AN ORB ports. Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors, or any equivalent aftermarket injector, can be used. As shown below, the factory injector retaining clips can be reused.

The fuel rail ports are tapped for 8AN ORB fittings.

• 8AN RB Adapter Fittings can be found HERE
• 8AN ORB Direct Mount Regulators can be found HERE
• Fuel Pressure Gauge Adapters can be found HERE

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers.

This kit includes the parts necessary to plumb your fuel rails to the OEM fuel system. It includes the 14-0119 and 14-0359 adapter fittings needed to install the OEM fuel pressure sensor, an 8AN crossover hose and fittings for the fuel feed lines.
