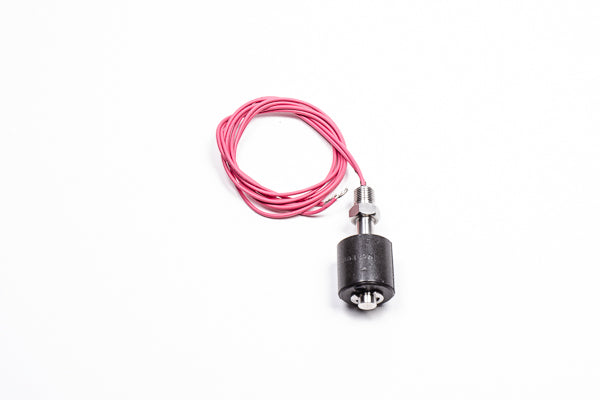

This 1/8" NPT fuel level switch should be installed inside the container, as shown. When fuel level drops, a switched signal can be used for many different purposes including:
- Dashboard mounted indicator
- Programmable ECU input for safety purposes
- To turn ON/OFF the lift pump when applicable
The level switch is constructed of corrosion resistant stainless steel compatible with all fuel types. It includes 24" long, 20AWG flying leads.
NOTES
- Prior to installing, check the direction of the signal on a test bench
- Switch polarity can easily be reversed by removing the E-clip and flipping the float
- 1/8" NPT threaded port is required for installing
- Always apply PTFE thread sealant to tapered pipe threads
