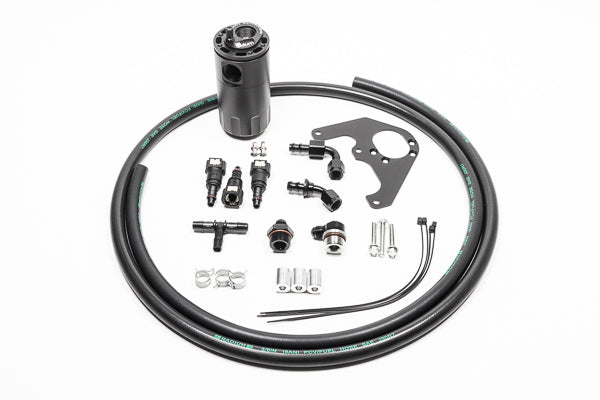

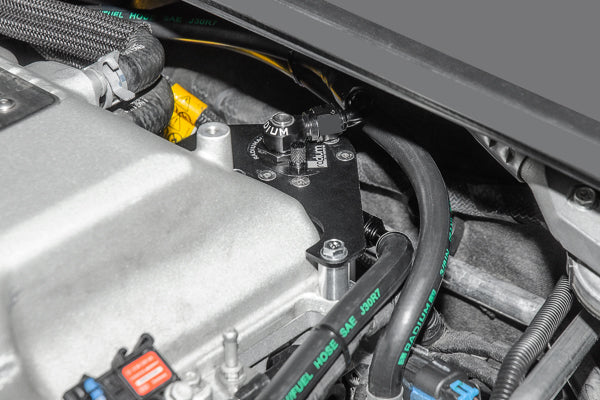

The CCV catch can mounts to 3 OEM threaded bosses at the rear of the supercharger housing. To retain factory functionality, the CCV catch can runs inline between the crankcase vent (CCV) ports and the intake pipe. At low loads, this catch can experiences atmospheric pressure. However, when the engine is at high load (WOT), these vents will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation in the air filter intake pipe. Oil accumulation will occur in the intercooler which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance.
NOTES
- The CCV catch can kit does NOT address blow-by from the PCV valve side of the crankcase.
- The CCV catch can kit is compatible and recommended to be used with the PCV catch can kit.
