ORACLE Lighting Part # ORL5921-7-001

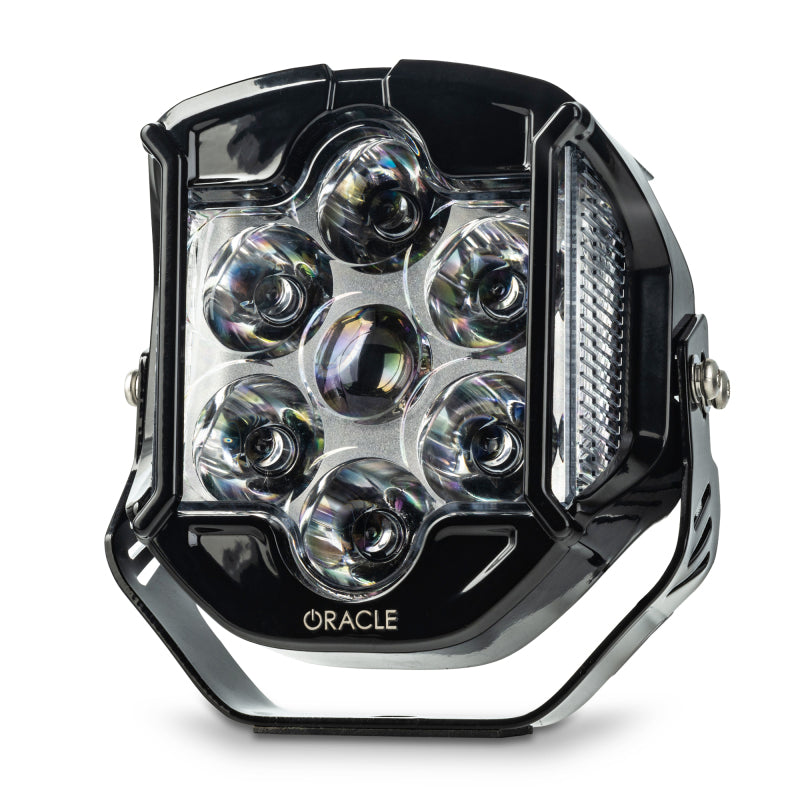

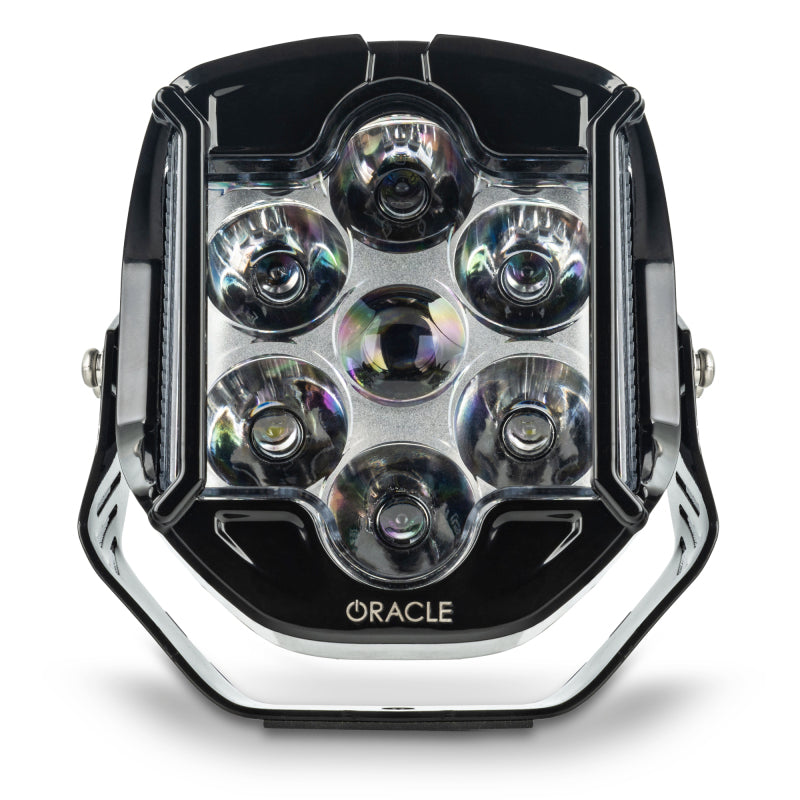

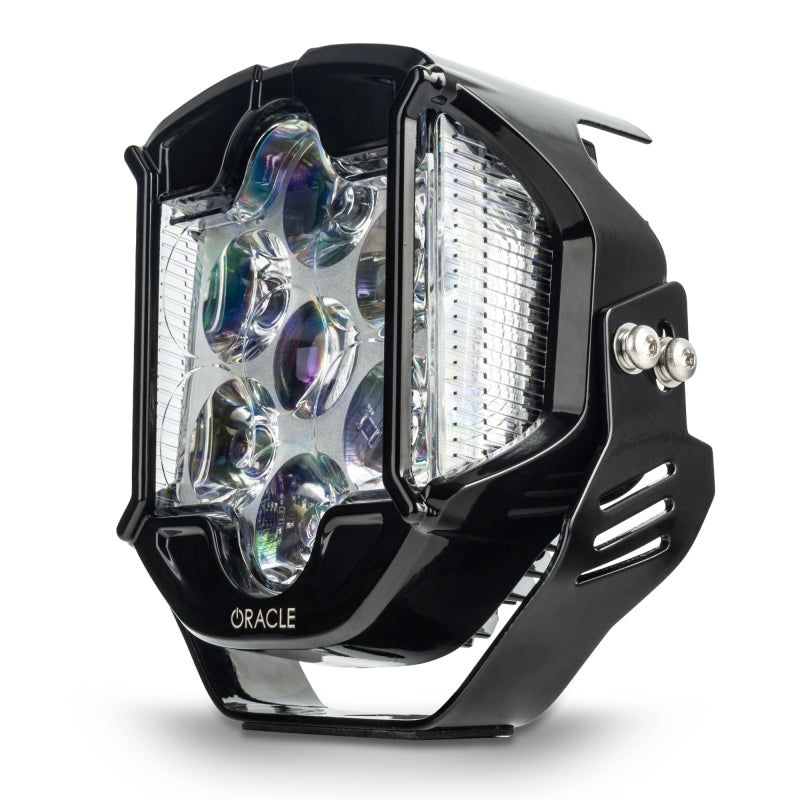

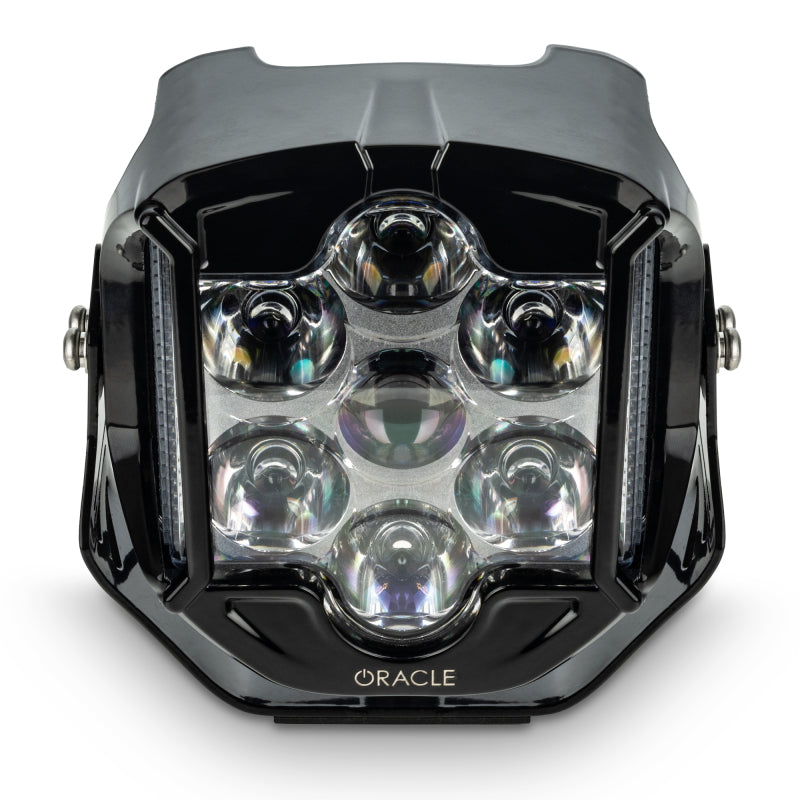

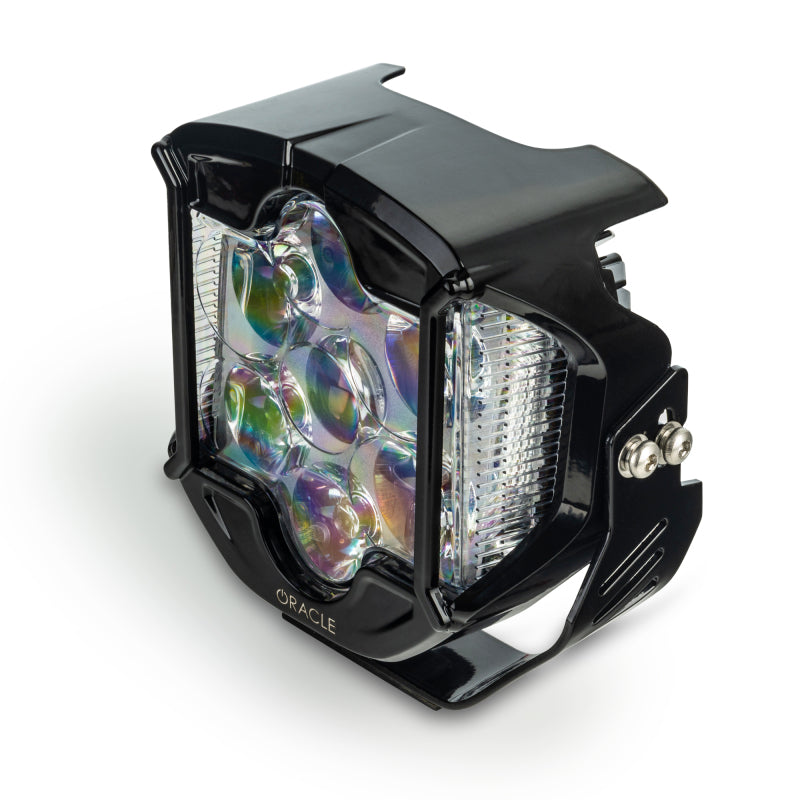

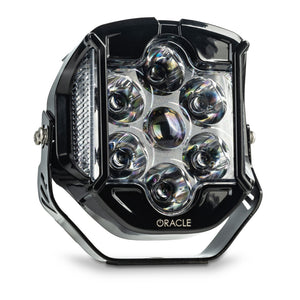

Oracle Lighting VEGA Series 7 Laser+LED Combo Auxiliary Light Pod - 6000K - 5921-7-001

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Built to outshine. Priced to win. Premium off-road output with IP69K durability and active cooling - outperforms the Baja Designs LP6 in both peak candela and throw distance, at a lower price point.
ORACLE Part #s: 5921-7-001 (LED+Laser) / 5921-7-504 (LED+LED)
Priced per single pod. Most customers purchase a pair.

vs. Baja Designs LP6: The VEGA 7 LED+Laser delivers 676,900 candela and projects to 840m (2,755 ft) - more than two football fields further than the LP6 - and costs less. Read the independent customer review ->

Product Overview

Using only high-quality components in a clean-slate design, VEGA 7 is optimized for performance, value, and durability. CAE analysis helped refine lens optics and thermal dynamics to create a product that's both powerful and reliable.

Key Features

  • Over 12,000 raw lumens intense light output (variant dependent)
  • Focused spotlight with up to 2,755 ft projection (variant dependent)
  • Active Thermal Management via integrated high-efficiency cooling fan
  • IP69K ingress protection for harsh environments
  • OE-level Deutsch DT connector + 24" cable whip
  • OSRAM BOOST HX primary chip platform
  • Symmetrical beam pattern - mount upside down or right-side up
  • 5-year replacement warranty

Details & Accessories

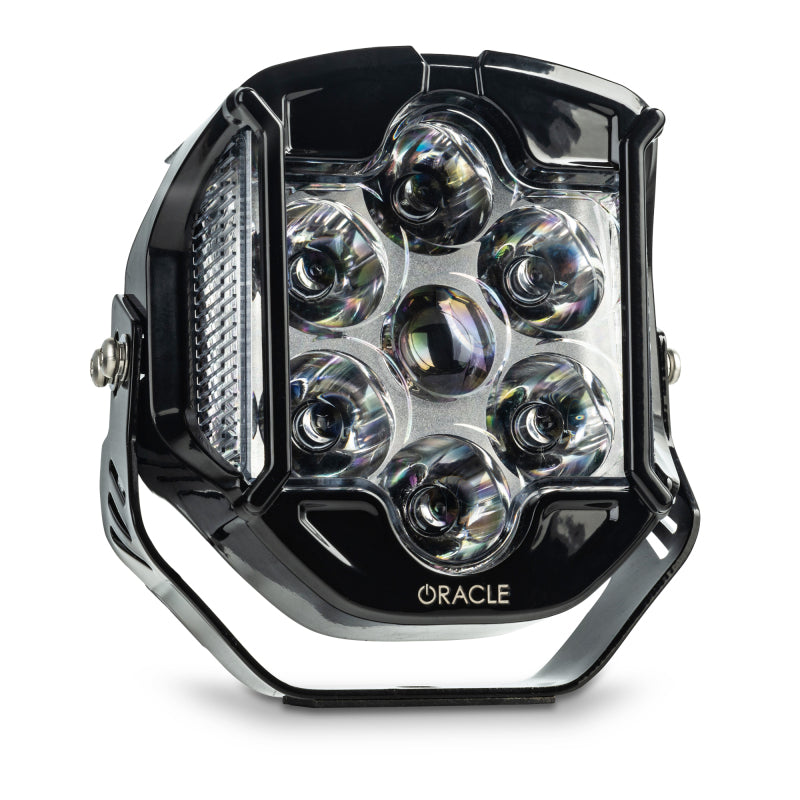

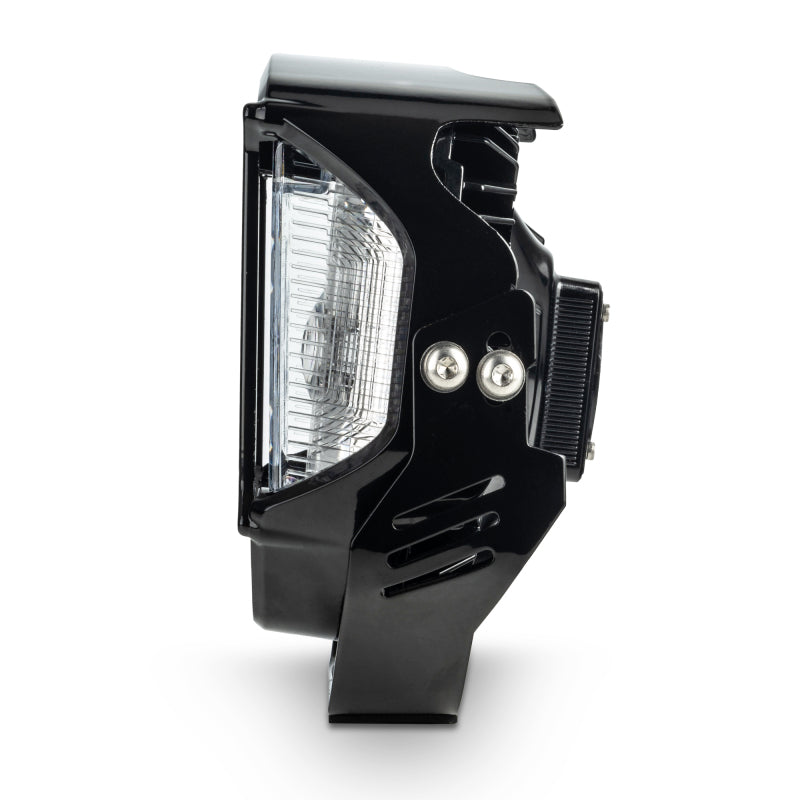

Versatility: Angled front lens + patent-pending styling that matches OEM surfaces in common mounting positions. Symmetrical optics keep beam orientation consistent.

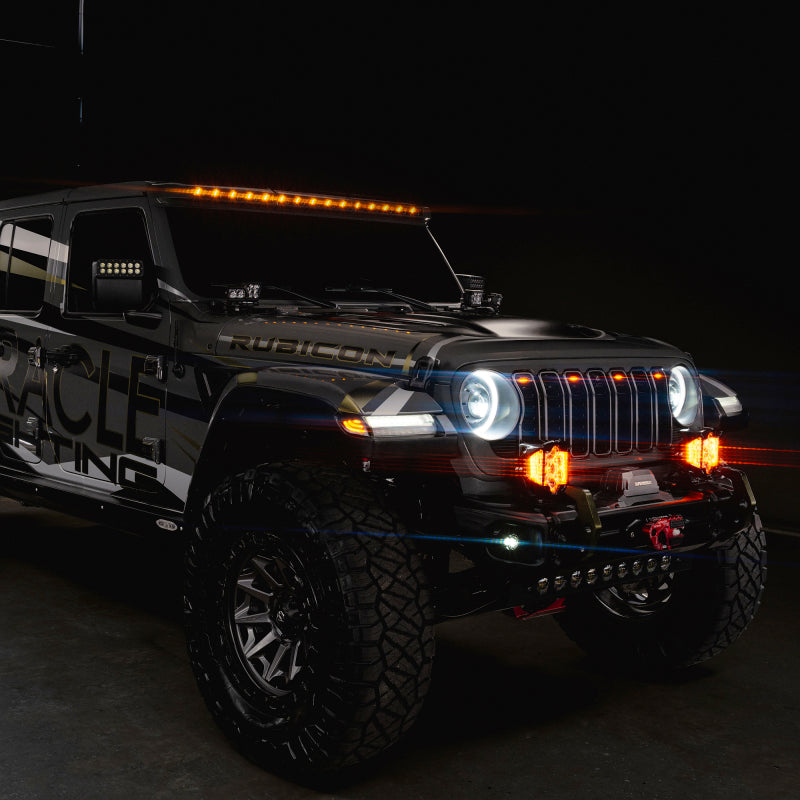

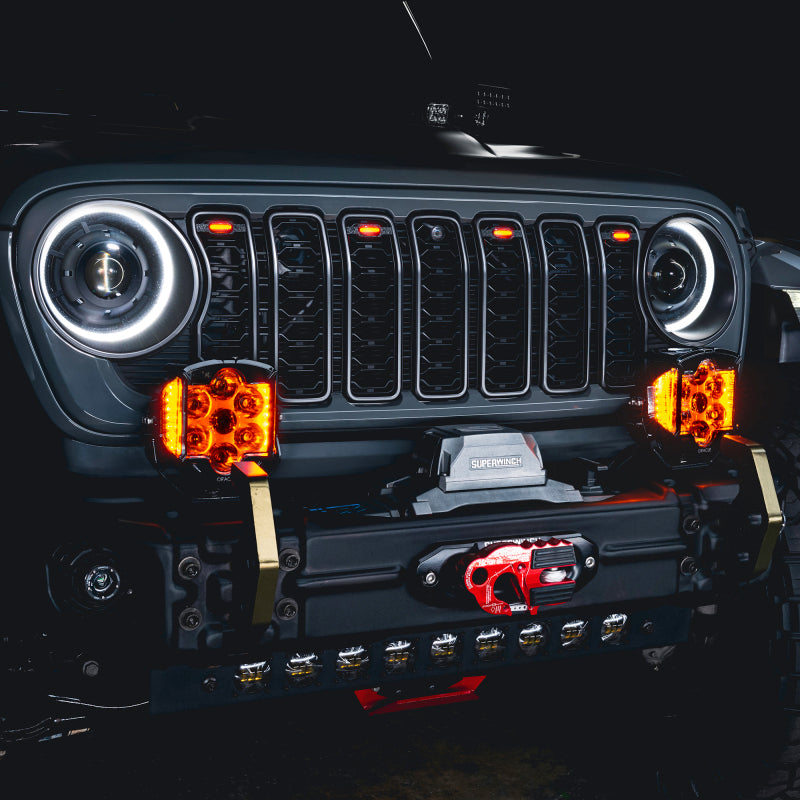

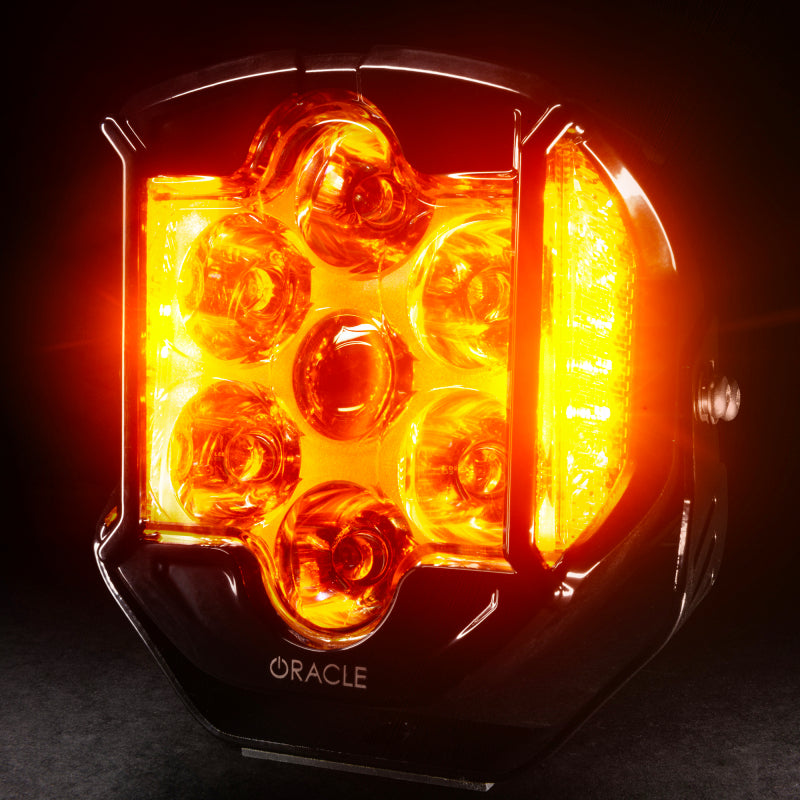

Lens Covers (Optional): Tool-free snap-fit covers sold separately to switch output color to Yellow or Amber, or use blackout covers for compliance needs.

Origin: Vega is one of the brightest stars in the northern sky - used as a baseline for photometric calibration. VEGA lights are built with that same "baseline" mindset: consistent output you can trust.

Performance & Technical Specifications

Two variants shown below, plus shared specs.

Variant: LED + LED 135W

  • Projection: 2,460' / 750m
  • Lumens (Raw): 11,990 lm
  • Tested Candela: 583,900
  • Center Chip: Q4 LED

Variant: LED + Laser 135W

  • Projection: 2,755' / 840m
  • Lumens (Raw): 12,340 lm
  • Tested Candela: 676,900
  • Center Chip: 15W Laser

Shared Specs (Both Variants)

  • Power (Watts): 135W
  • Draw (Amps): 8.5A
  • Input Voltage: 9-32V DC
  • OSRAM Chip: BOOST-HX
  • Beam Type: Spotlight
  • Beam Angle: 40° Sym
  • Ingress Rating: IP69K
  • LED Color CCT: 5000K
  • LED Lifetime: 50,000 hrs
  • Connector Type: DT06-4S
  • Lens Material: Hardcoat PC
  • Housing Material: Aluminum
  • Housing Finish: Black PC

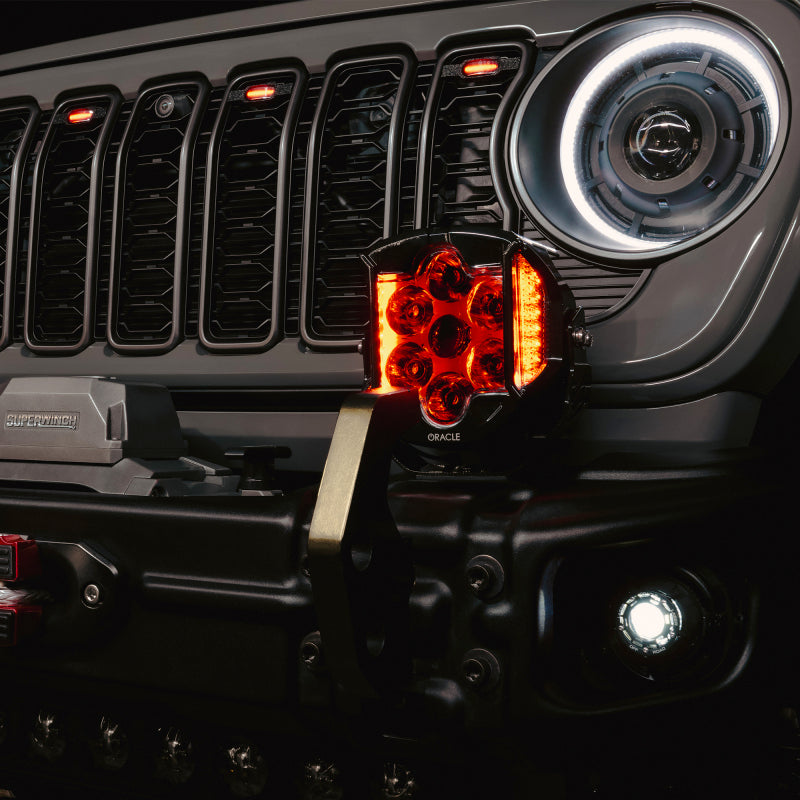

  • Marker Color: Amber
  • Marker Watts: 2W

Vehicle Fitment

Universal Auxiliary Lighting Application: Compatible with off-road vehicles and equipment using a 9V-32V DC electrical system and a suitable mounting location.

Verify bracket clearance, circuit capacity, wiring-harness requirements, and local laws before installation.

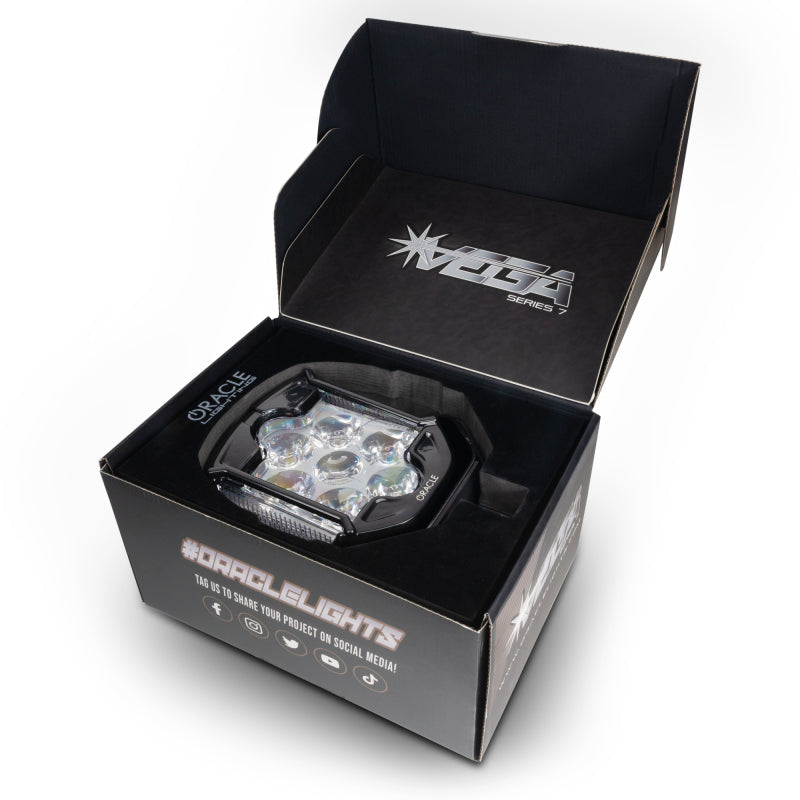

What's Included

  • VEGA 135W Series 7 Spotlight (LED+Laser or LED+LED) - single pod

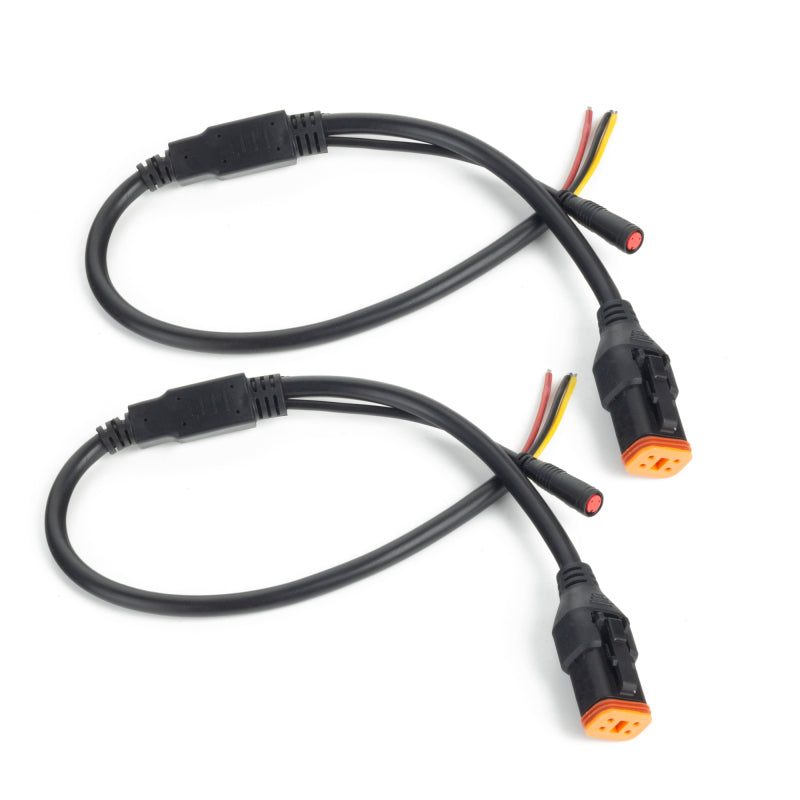

  • Deutsch DT 24" cable whip
  • Standard universal bracket
  • Stainless steel hardware set

Frequently Asked Questions

Engineered to Lead, Priced to Win

The VEGA 7 isn't just an incremental upgrade - it's a full reinvention of what a compact off-road auxiliary light can do. Engineered from the ground up and unveiled at the 2025 SEMA Show, the VEGA 7 outperforms competitors like the Baja Designs LP6 in both raw candela output and throw distance - by more than two football fields - while coming in at a more accessible price point.

Available in two performance configurations, LED+LED (Part #5921-7-504) and LED+Laser (Part #5921-7-001), the VEGA 7 sets a new benchmark for off-road lighting performance, durability, and value.

Performance Specs That Demand Attention

Unmatched Light Output

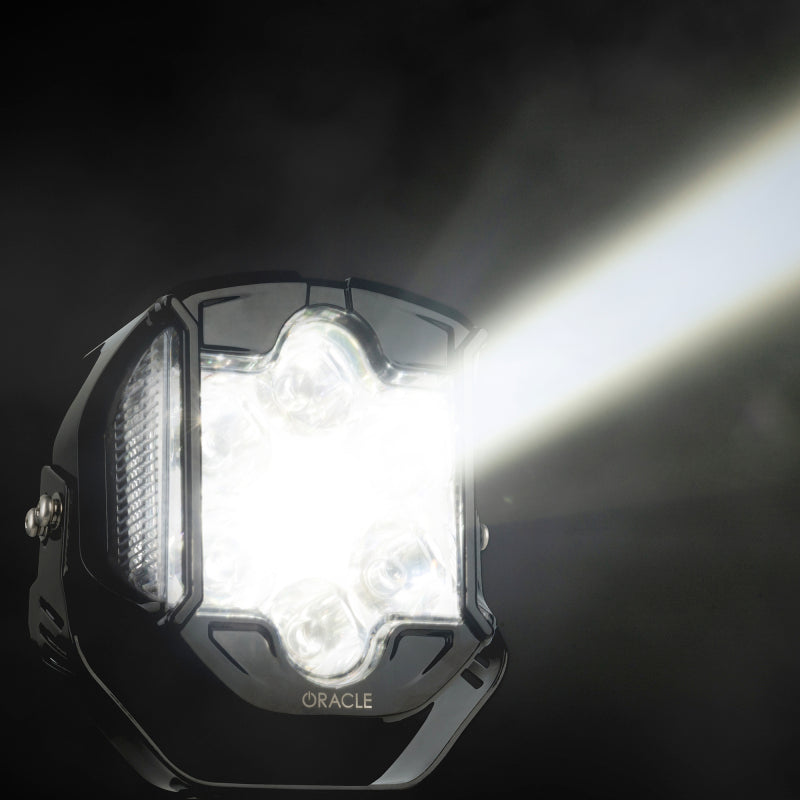

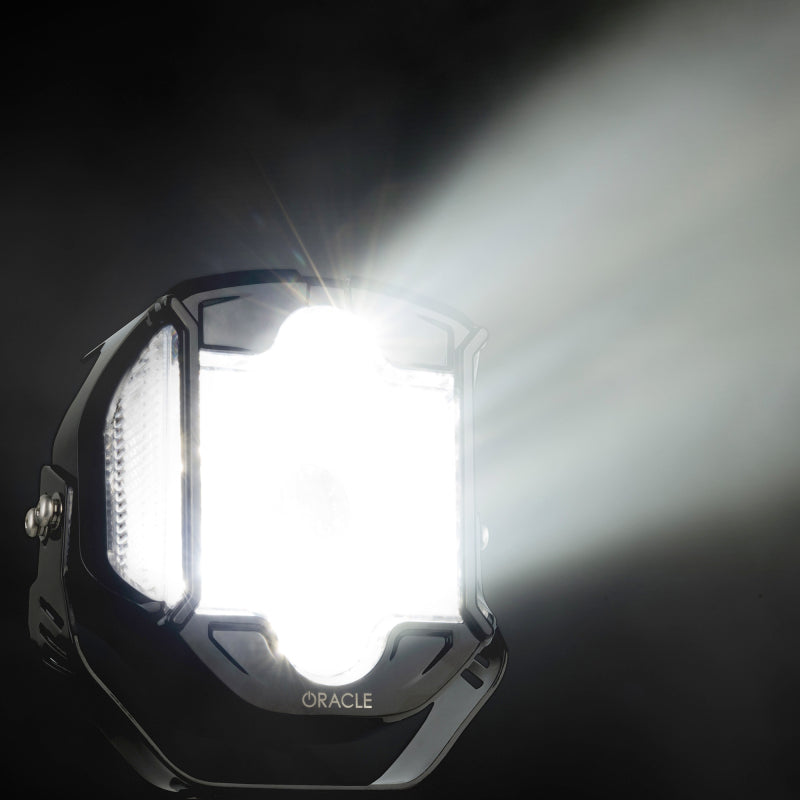

The LED+Laser configuration delivers an astonishing 676,900 candela and a projection distance of 840 meters (2,755 feet) - the kind of reach that turns night trails into daylight. The LED+LED version produces over 12,000 raw lumens with a focused spotlight beam. Both configurations use a symmetrical 40° beam angle that can be mounted right-side up or inverted without changing the beam pattern.

OSRAM BOOST-HX LED Chips

At the heart of the VEGA 7 are premium OSRAM BOOST-HX LED chips, chosen for their exceptional brightness, color accuracy, and long-term reliability - the same class of components used in high-end automotive OEM applications.

Active Cooling Technology

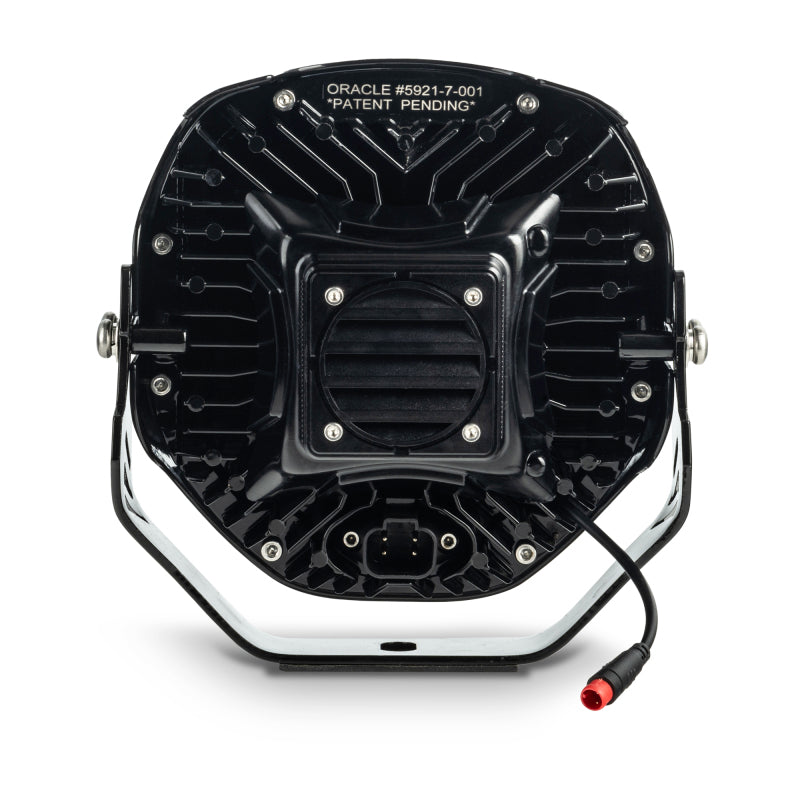

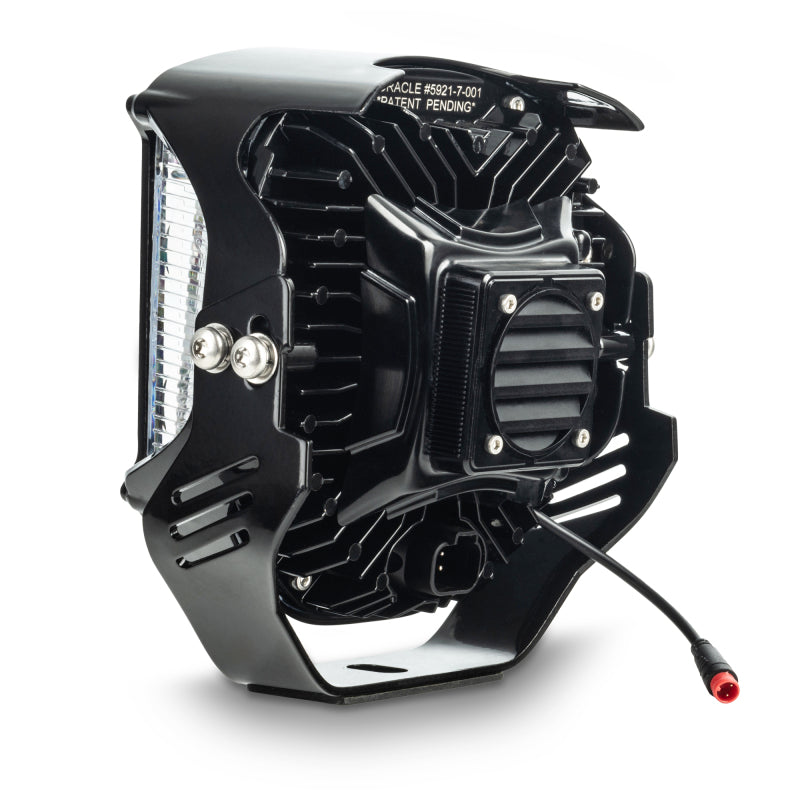

A built-in high-efficiency cooling fan continuously circulates air through specially designed rear fins, maintaining optimal LED operating temperatures even during sustained, high-output use. No thermal dimming, no performance degradation.

Built for the Harshest Conditions on Earth

IP69K Ingress Protection

The VEGA 7 carries an IP69K rating - the highest level of ingress protection available. Whether you're blasting through river crossings, muddy desert trails, or driving rain, the VEGA 7 is sealed to keep performing.

OE-Level Deutsch DT Connectors

The VEGA 7 uses Deutsch DT06-4S connectors - the same connectors found in OEM automotive and military-grade applications - for a secure, vibration-resistant, weatherproof electrical connection.

VEGA 7 vs. The Competition

In third-party and lab-based testing, the LED+Laser VEGA 7 outshines the Baja Designs LP6 in both peak candela and throw distance - past the 2,700-foot mark - at a lower price point.


FAQs

Q: What is the difference between the LED+LED and LED+Laser configurations?

The LED+Laser (Part #5921-7-001) adds a center laser projection element, increasing throw distance to 840m (2,755 ft) and peak candela to 676,900. The LED+LED (Part #5921-7-504) delivers over 12,000 raw lumens in a pure LED spotlight configuration.

Q: Do I need to buy two for a pair?

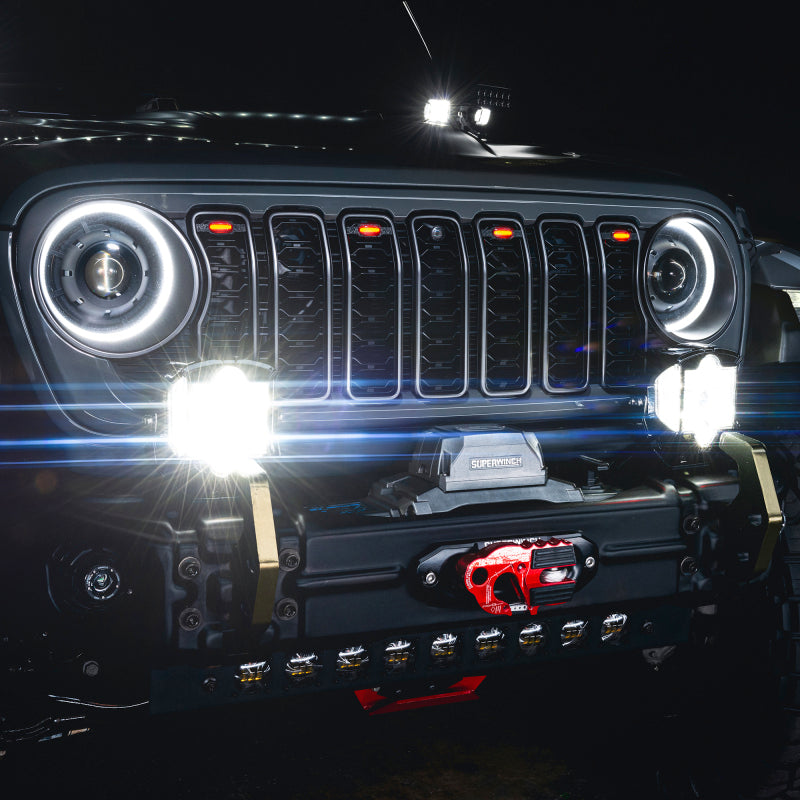

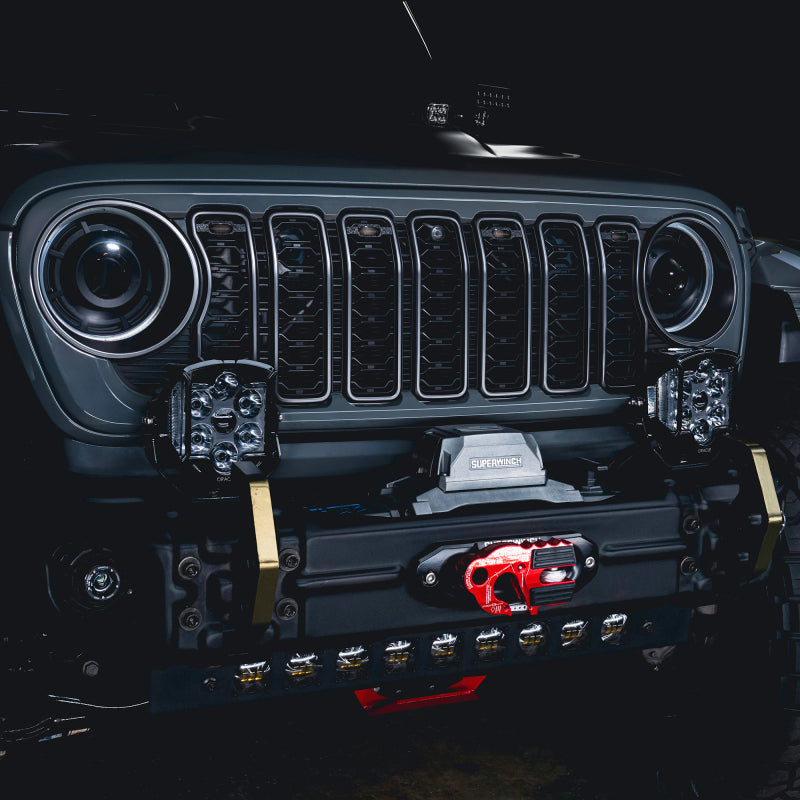

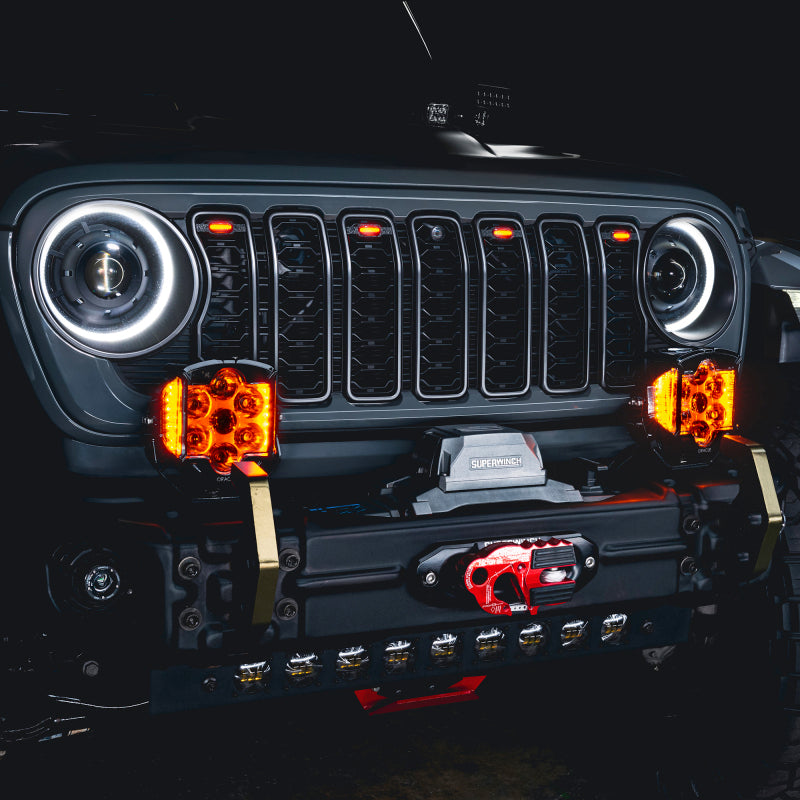

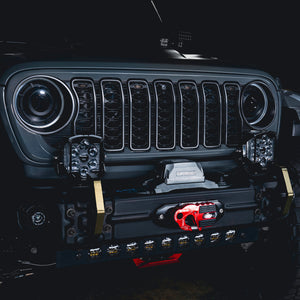

Yes - this listing is for a single pod. Most customers purchase two for a matched ditch light or A-pillar setup. Add two to your cart for a complete pair.

Q: Is the ORACLE VEGA 7 waterproof?

Yes. The VEGA 7 carries an IP69K ingress protection rating - fully sealed against dust and rated to withstand high-pressure, high-temperature water jets.

Q: Can the VEGA 7 be mounted upside down?

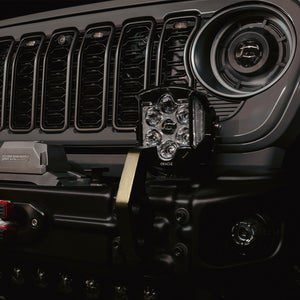

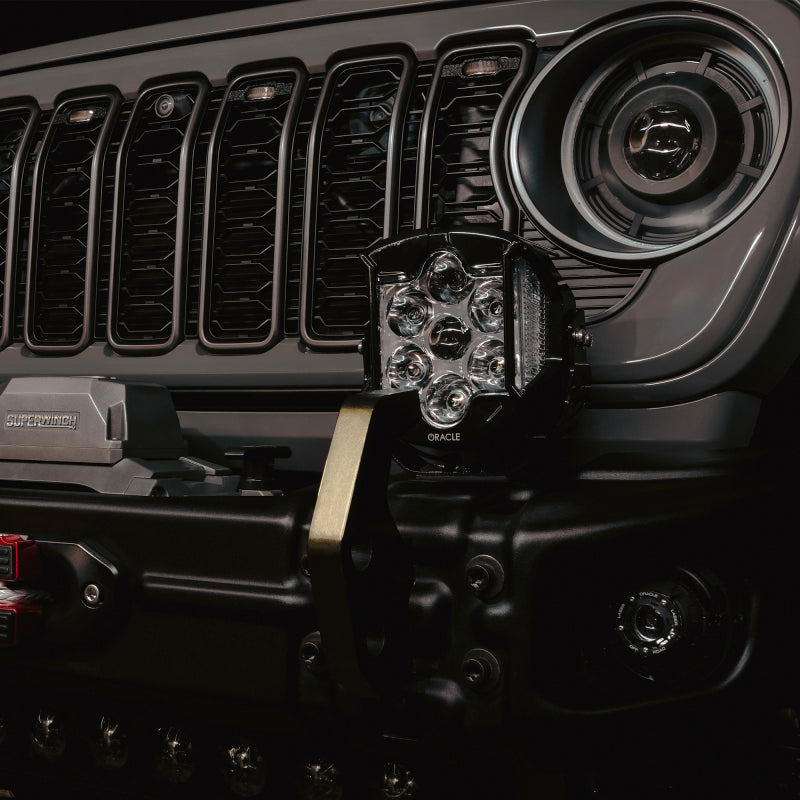

Yes. The horizontally symmetrical beam pattern means output is identical whether mounted right-side up or inverted - ideal for ditch mounts, bull bars, bumpers, and A-pillars.

Q: How does the VEGA 7 compare to the Baja Designs LP6?

In independent lab testing, the VEGA 7 LED+Laser outperforms the LP6 in both peak candela and throw distance by more than two football fields, at a lower price point.

Q: What connectors does the VEGA 7 use?

The VEGA 7 uses Deutsch DT06-4S connectors - an OEM- and military-grade standard known for superior vibration resistance, weatherproofing, and long-term reliability.
