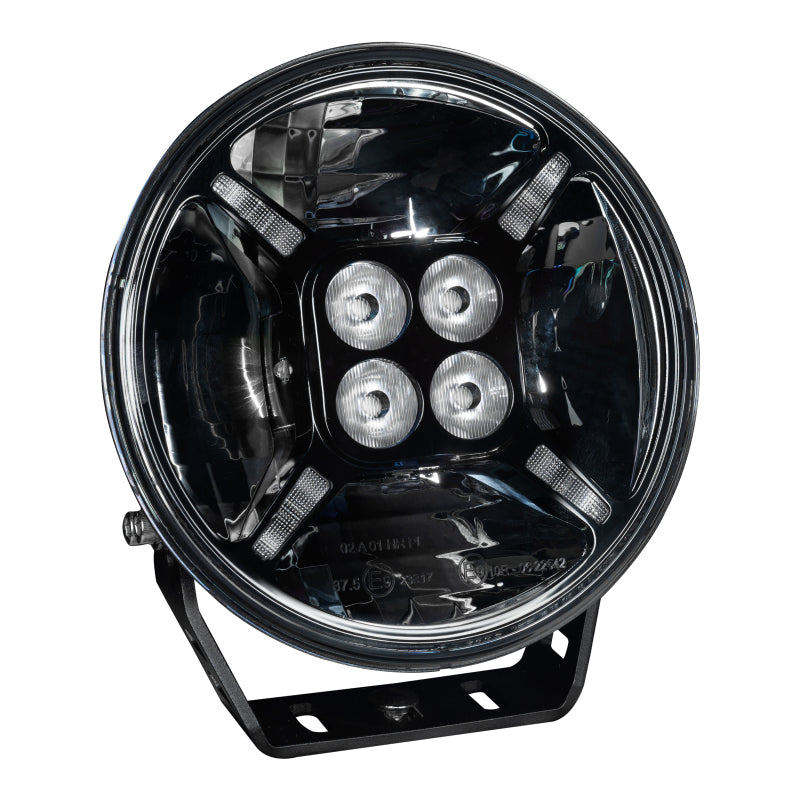

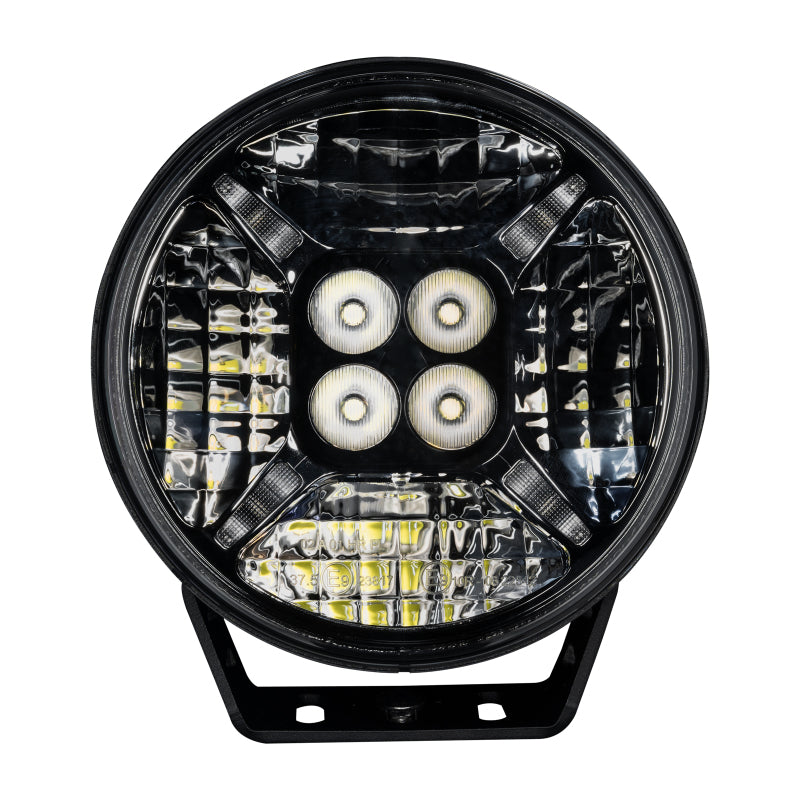

The ORACLE EXO 7" Multifunction 60W LED Spotlight combines TIR lens and reflector-facing optics for a precision 30° beam that throws up to 500m. Integrated selectable amber/white LED markers handle DRL, parking, and turn signal duty - all in a single blacked-out, IP68-rated housing.
Product Overview
Whether you're conquering the off-road or exploring at night, having adequate lighting is critical to spotting obstacles in your path. The ORACLE EXO 7" Multifunction 60W Round LED Spotlight is engineered to deliver superior illumination for any Jeep, truck, or off-road vehicle - without compromise.
By combining TIR (Total Internal Reflection) lens technology with LED Reflector Facing Technology, this spotlight produces a high-quality, precision 30° beam pattern that projects up to nearly 500m. The dual-optic approach maximizes both intensity and throw distance in a compact 7" round form factor.

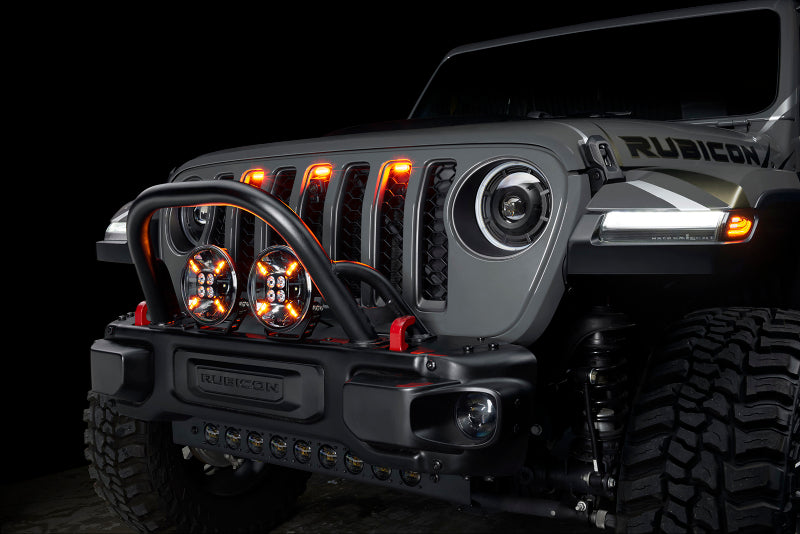

The integrated LED marker ring features selectable white and amber LEDs, giving you the flexibility to wire them as parking lights, DRL, or turn signals - or all three with the right wiring setup. Housed in a heavy-duty blacked-out enclosure with IP68 waterproofing and an 80,000+ hour LED lifespan, this spotlight is built to outlast your adventures.
Key Features
-
TIR Lens + Reflector Combo Optics - dual-optic system maximizes beam precision and throw distance
-

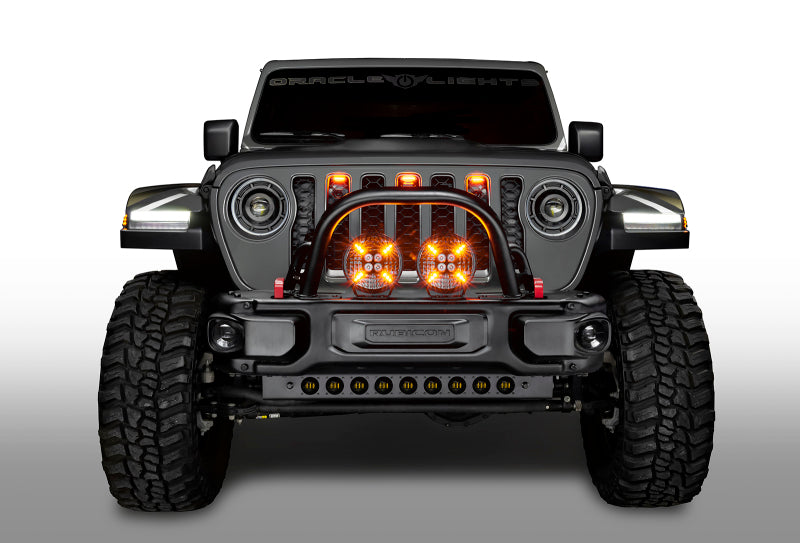

Selectable Amber/White LED DRL - integrated marker ring wires as parking light, DRL, and/or turn signal
-
ETM Thermal Management Technology - electronic thermal management prevents overheating
-
Blacked-out housing design - aggressive stealth aesthetic for any build
-

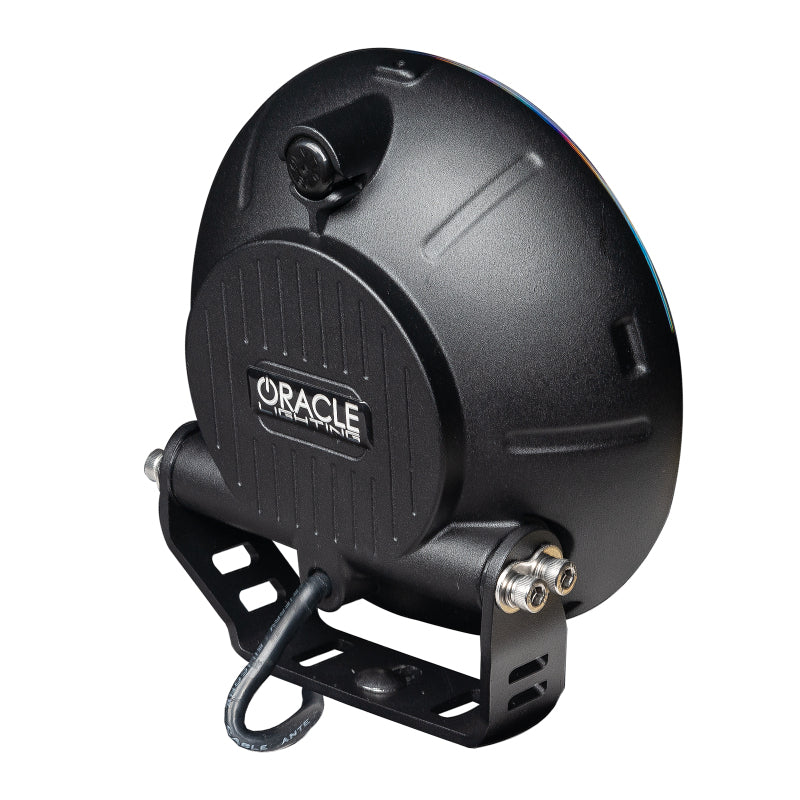

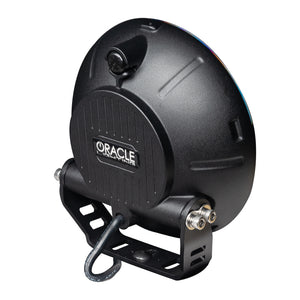

Heavy-duty U mounting bracket - post mount with stainless steel 304 hardware
-
IP68 waterproof rating - fully submersible and weather-resistant
-
Under/over voltage protection - safe across 9V-36V DC input range
-
Reverse polarity protection - protects against wiring errors
-
ECE R112/R7/R10 compliant - meets international lighting standards
-
80,000+ hour LED lifespan - built for the long haul
- 1-year warranty
Performance & Technical Specifications
-
LED Configuration: 4x 10W + 4x 5W LEDs
-
Total Wattage: 60W
-
Amp Draw: 4A @ 12V DC
-
Raw Lumens: 6,000 lm
-
Effective Lumens: 4,800 lm
-
Peak Intensity: 141,000 cd
-

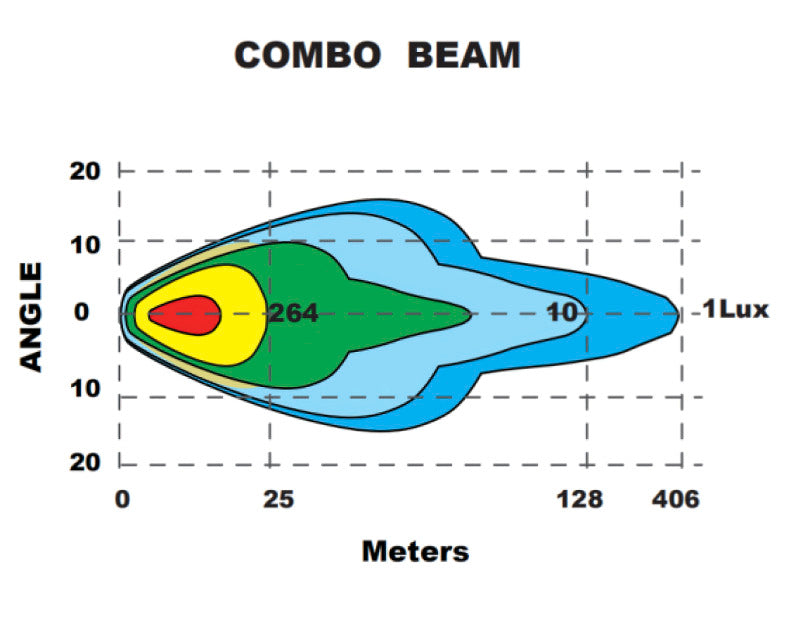

Beam Angle: 30° Average
-
Max Throw Distance: ~500m
-
Input Voltage: 9V-36V DC
-
Waterproof Rating: IP68
-
LED Lifespan: 80,000+ hours
-
Warranty: 1 Year
-
Compliance: ECE R112 / R7 / R10
Vehicle Fitment
Universal post mount - compatible with any Jeep, truck, SUV, or off-road vehicle with a standard post or A-pillar mount. Commonly installed on:

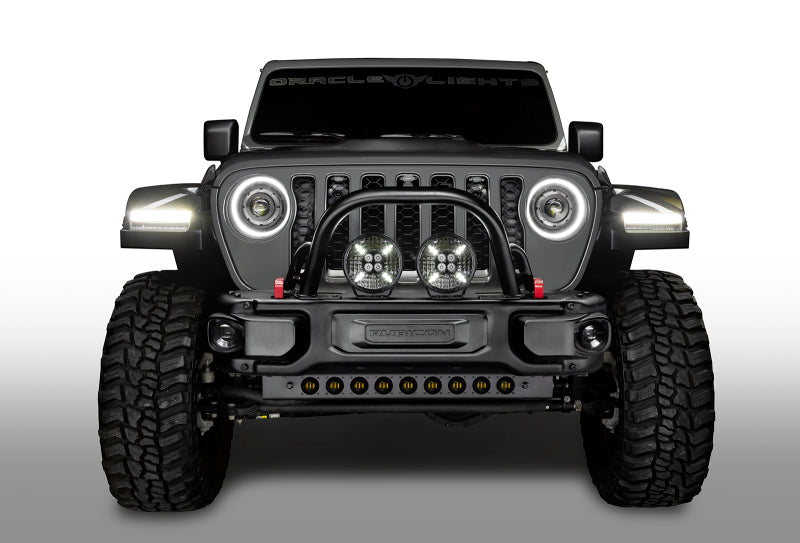

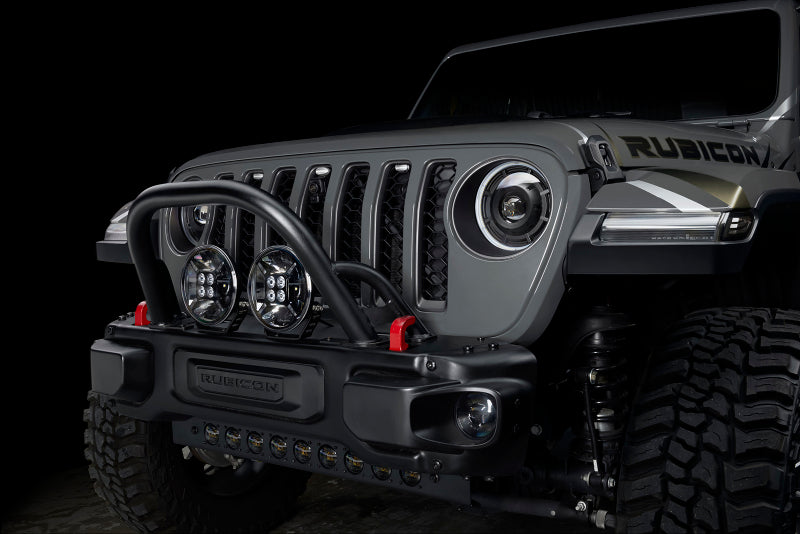

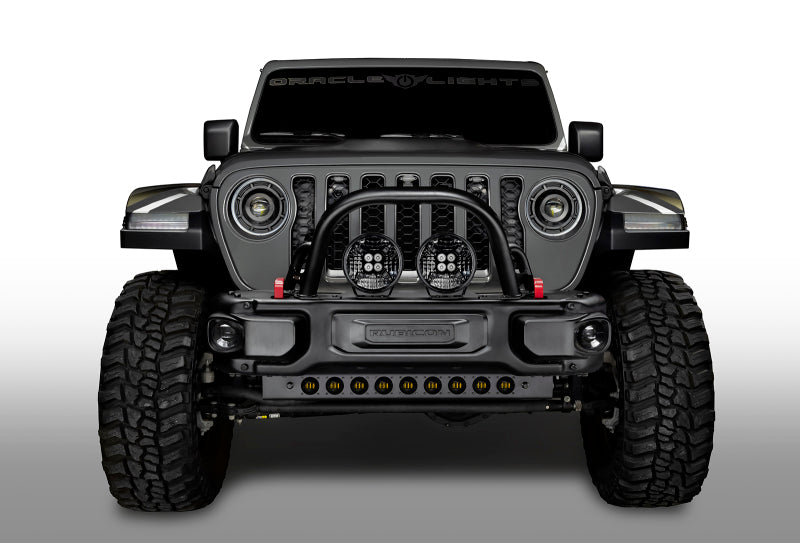

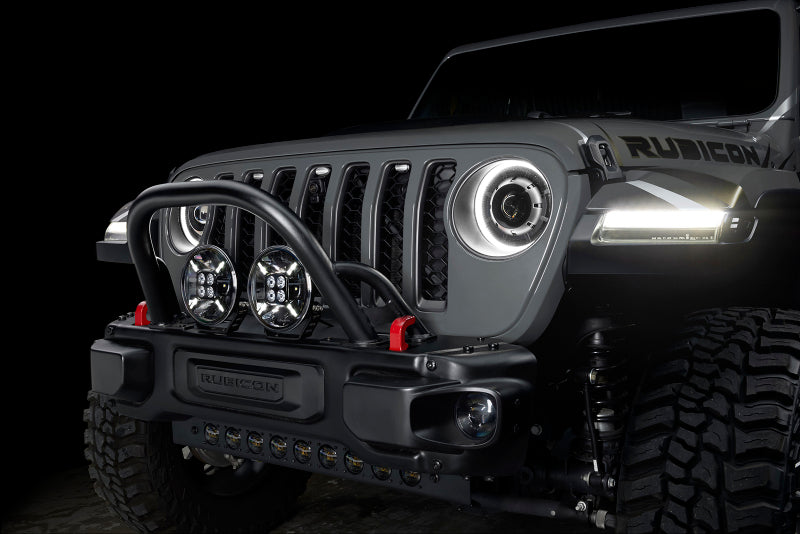

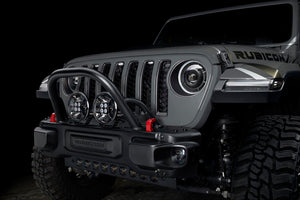

- Jeep Wrangler (JK, JL)
- Jeep Gladiator (JT)
- Ford Bronco

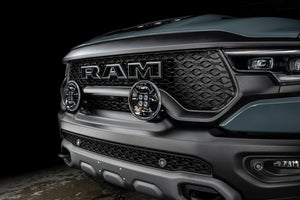

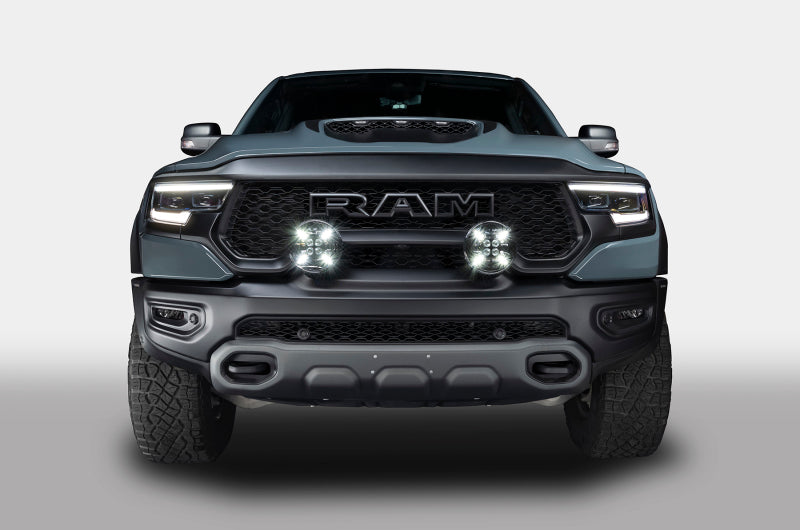

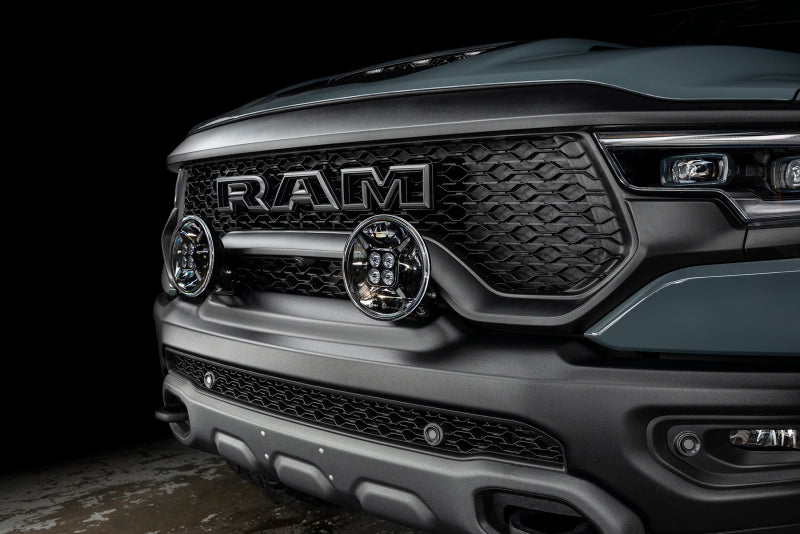

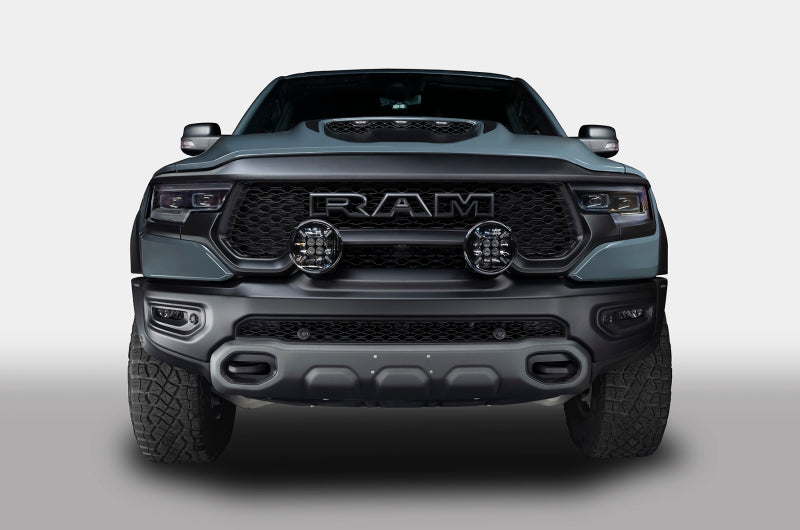

- RAM 1500 TRX
- Toyota Tacoma / 4Runner
- Any vehicle with a compatible post or pillar mount
What's Included
- (1) 7" Multifunction 60W Round LED Spotlight - Post Mount
- Heavy-duty U mounting bracket
- Stainless Steel 304 mounting hardware
