ORACLE Lighting 2019+ Jeep Wrangler JL Skid Plate w/ Integrated LED Emitters - Yellow- 5883-006

Two-in-one underbody protection and high-powered LED lighting for the 2018-2025 Jeep Wrangler JL & 2020-2025 Gladiator JT. 3/16" steel plate, 9× 15W LED modules, 9,000 lumens, IP68 rated - no-drill installation with all hardware included.

Product Overview

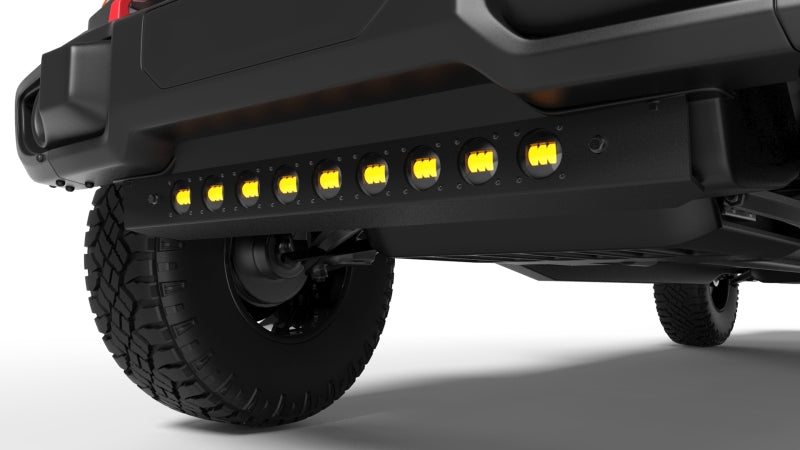

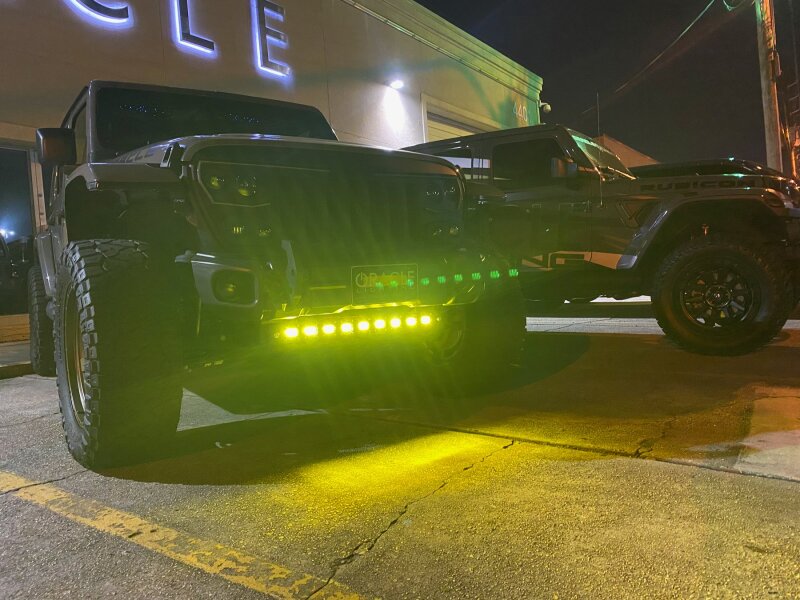

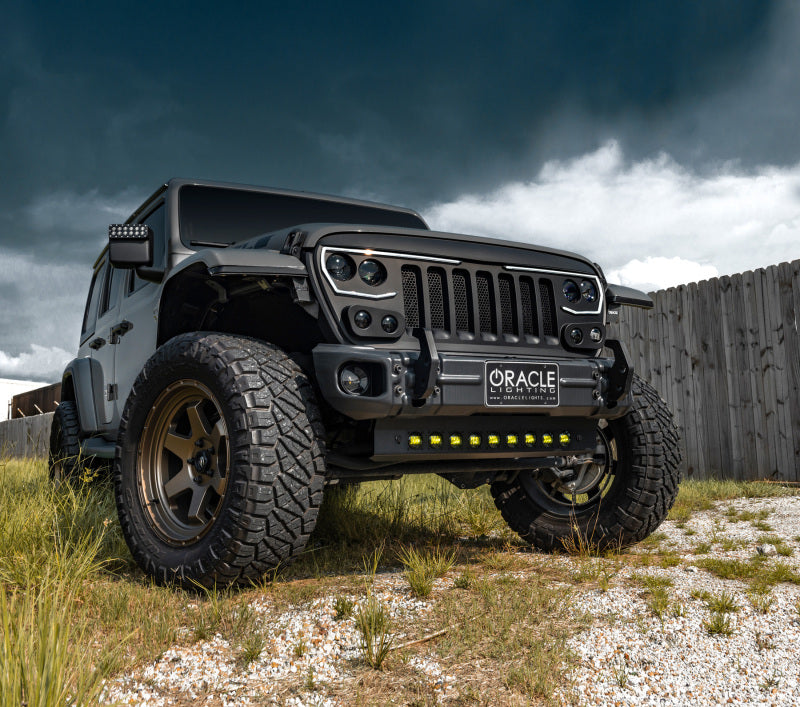

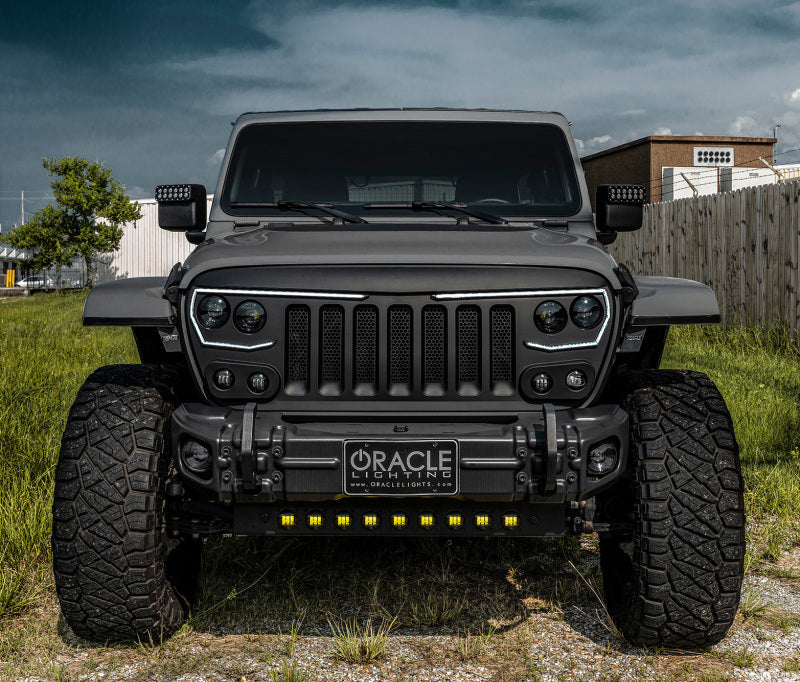

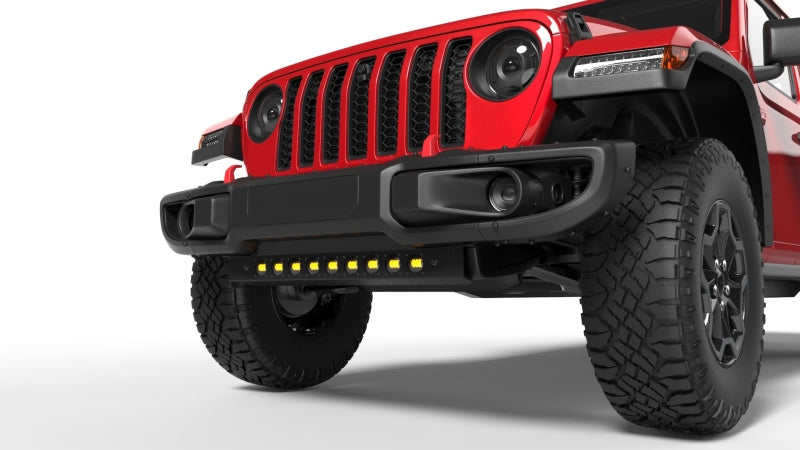

The ORACLE Skid Plate with Integrated LED Emitters is an innovative two-in-one product that adds durable underbody protection for your Jeep's sway bar and steering box while integrating high-powered LED lighting for improved trail and road visibility.

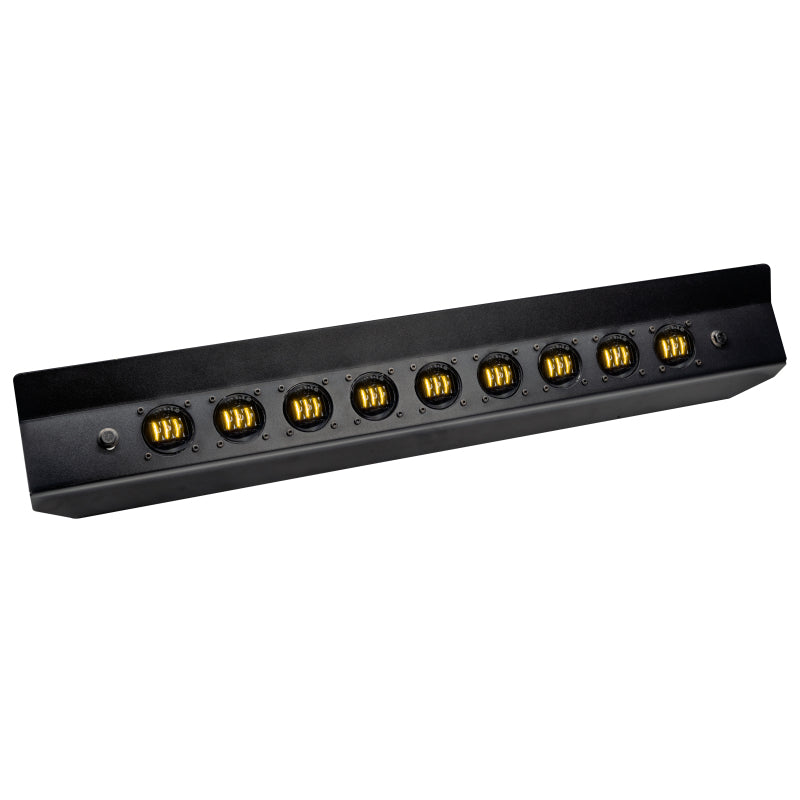

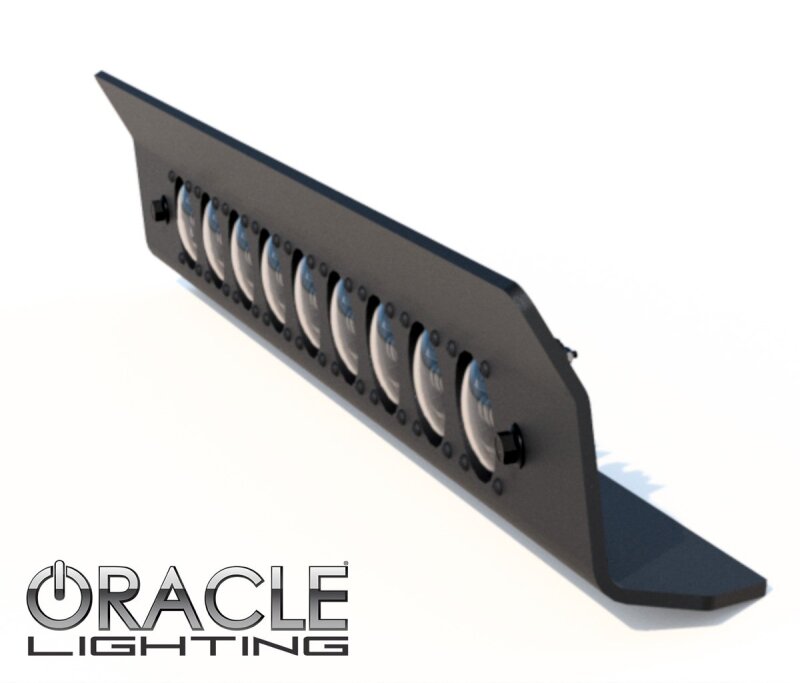

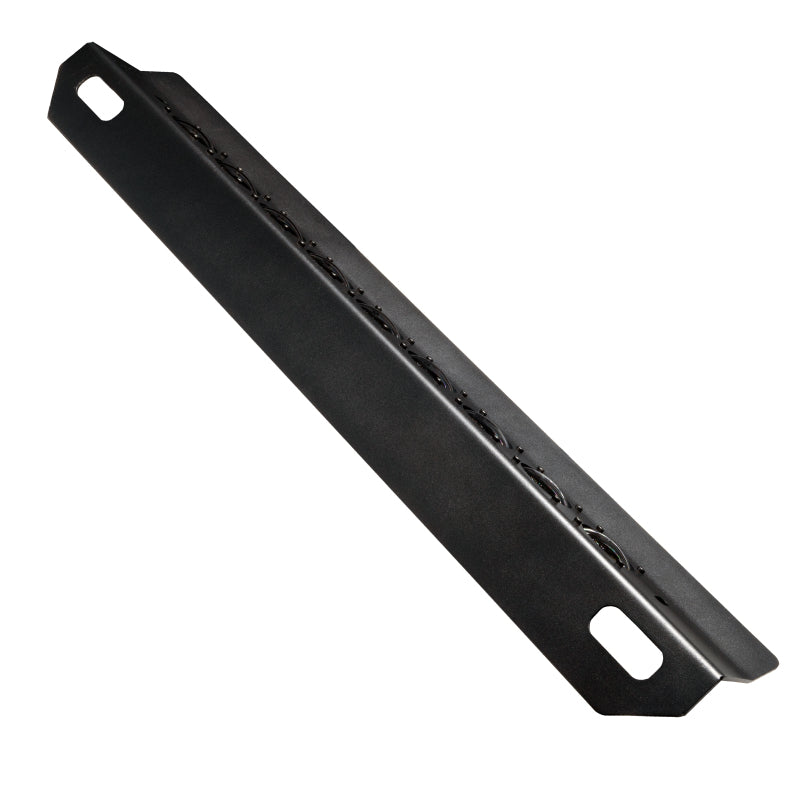

Formed from a 3/16" steel plate with a satin black powdercoat finish, this skid plate is built to take a beating. The 9× high-output 15W LED modules feature precision optics for a focused 30° beam width and are rated IP68 for full ingress protection - rugged enough for any terrain. Each module can be individually replaced for long-term peace of mind.

Installation is a simple no-drill process with all necessary hardware included. The included switched relay wiring harness makes wiring easy, with a dedicated switch for on/off operation or direct connection to the factory AUX switches on equipped Jeeps.

Mojave Gladiator: Shock reservoir relocation is required for Gladiator JT Mojave models.

Bumper Compatibility: Designed to work with the factory-style Jeep bumper. May work with many aftermarket bumpers, but ORACLE Lighting does not guarantee fitment with aftermarket winch or bumper configurations.

Key Features

• 3/16" Steel Plate Construction - satin black powdercoat finish; heavy-duty underbody protection
• 9× High-Output 15W LED Modules - 135W total; 9,000 lumens of precision-focused light
• 30° Beam Width - advanced optic design for optimal forward and trail illumination
• IP68 Ingress Protection - fully sealed against dust and water immersion
• DOT, SAE & E9 Marked - meets international lighting compliance standards

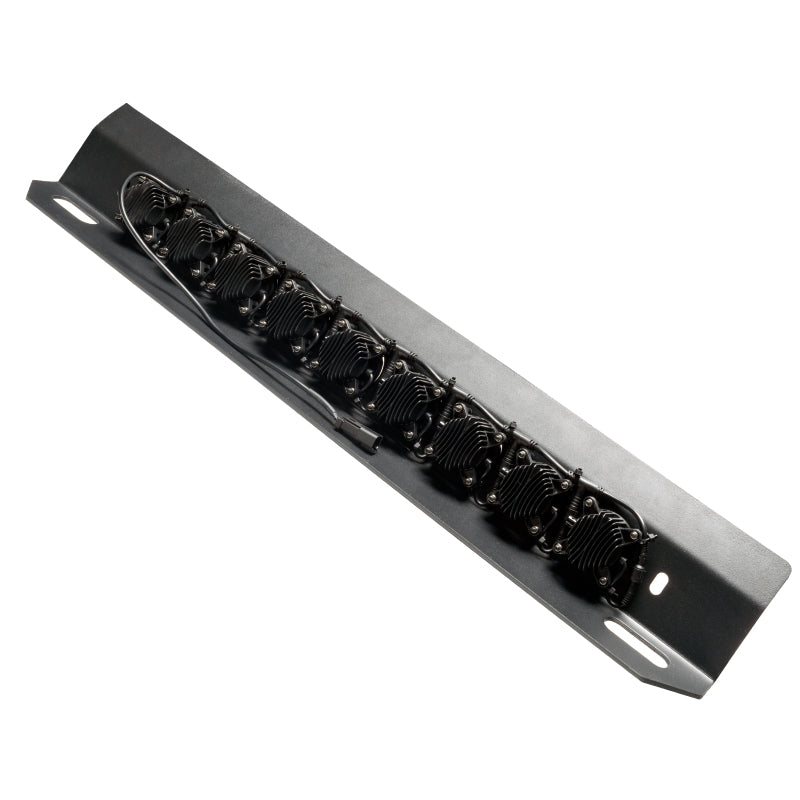

• Individually Replaceable Modules - replace a single emitter without replacing the entire unit
• No-Drill Installation - all mounting hardware included
• Switched Relay Wiring Harness - included; dedicated on/off switch or AUX switch compatible
• Factory AUX Switch Compatible - integrates with equipped Jeep JL/JT AUX switch panels
• 1-Year Warranty - backed by ORACLE Lighting

Performance & Technical Specifications

• LED Modules: 9× High-Output 15W
• Total Wattage: 135W
• Total Lumens: 9,000 lm
• Power Draw: 6A @ 12V DC
• Beam Width: 30°
• Optics: Advanced LED Optic Design
• IP Rating: IP68
• Compliance: DOT, SAE & E9 Marked
• Plate Material: 3/16" Steel
• Finish: Satin Black Powdercoat
• Emitter Colors: White, Amber, Yellow
• Module Replacement: Individually Replaceable
• Installation: No-Drill; Hardware Included
• Wiring: Switched Relay Harness + AUX Switch Compatible
• Warranty: 1 Year

Vehicle Fitment

• 2018-2025 Jeep Wrangler JL (all trims)
• 2020-2025 Jeep Gladiator JT (all trims)

Gladiator JT Mojave: Shock reservoir relocation required.

Bumper Note: Designed for factory-style Jeep bumper. Aftermarket bumper/winch fitment not guaranteed.

What's Included

• Skid Plate Lighting System

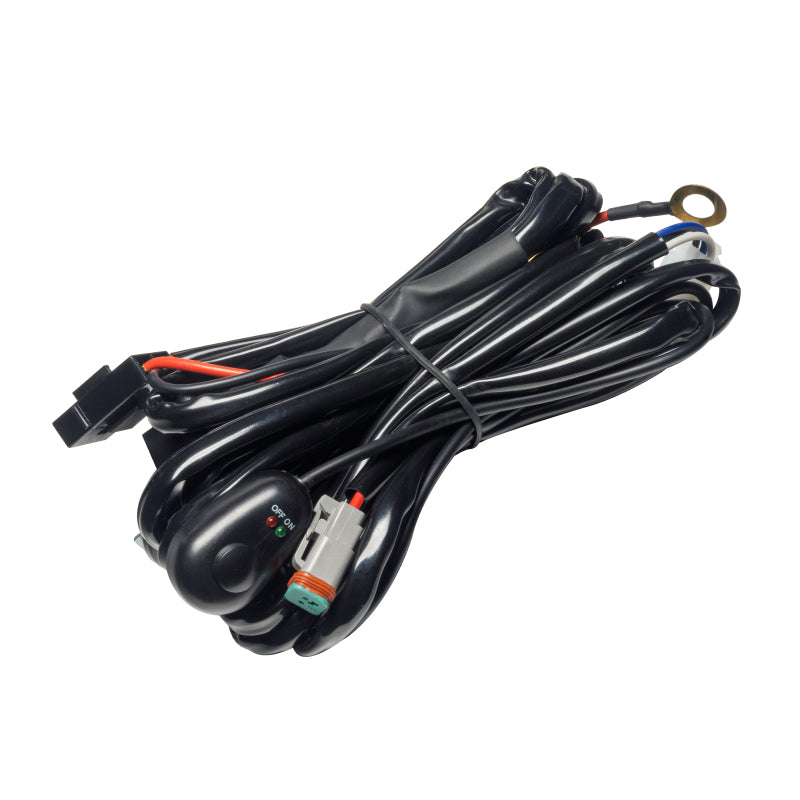

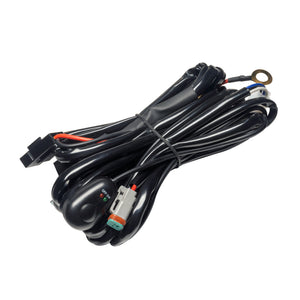

• Switched Relay Wiring Harness (with on/off switch)
• Mounting Hardware
