Two-in-one underbody protection and high-powered LED lighting for the 2018-2025 Jeep Wrangler JL & 2020-2025 Gladiator JT. 3/16" steel plate, 9× 15W LED modules, 9,000 lumens, IP68 rated - no-drill installation with all hardware included.
Product Overview

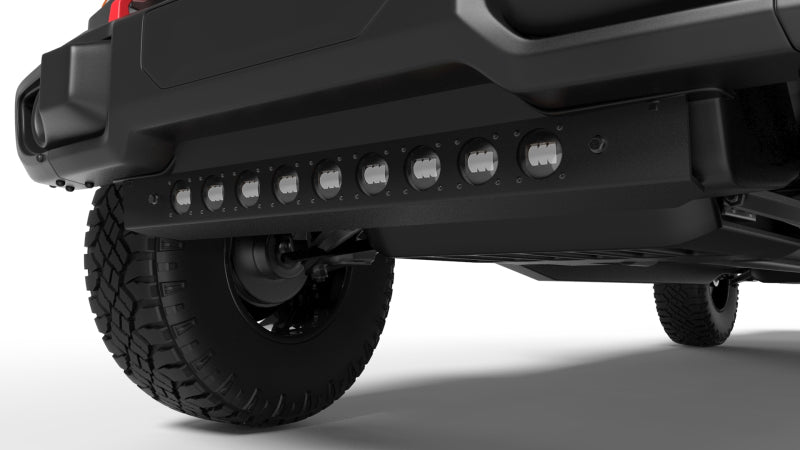

The ORACLE Skid Plate with Integrated LED Emitters is an innovative two-in-one product that adds durable underbody protection for your Jeep's sway bar and steering box while integrating high-powered LED lighting for improved trail and road visibility.

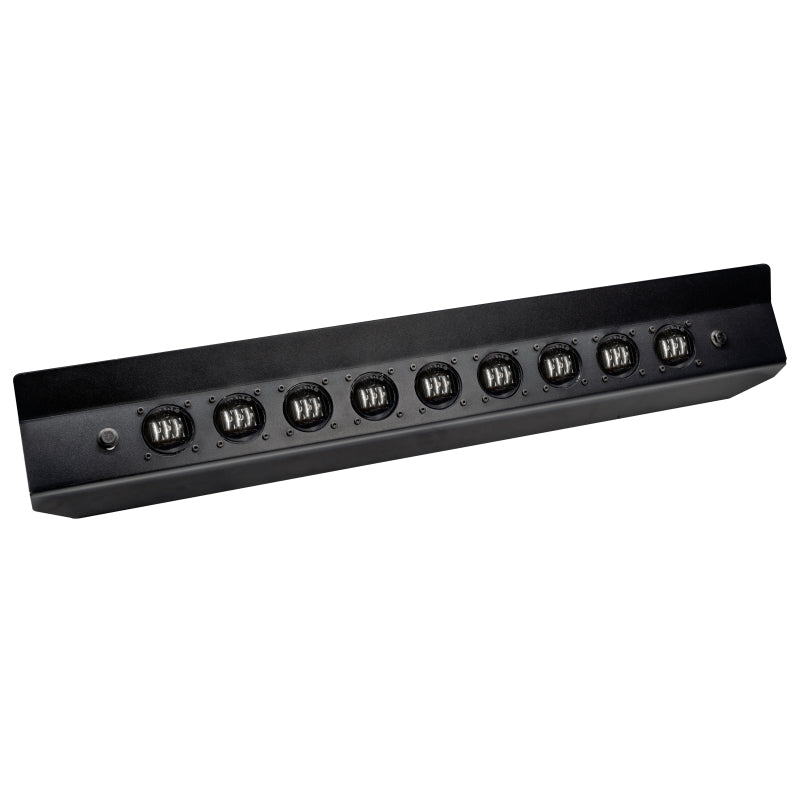

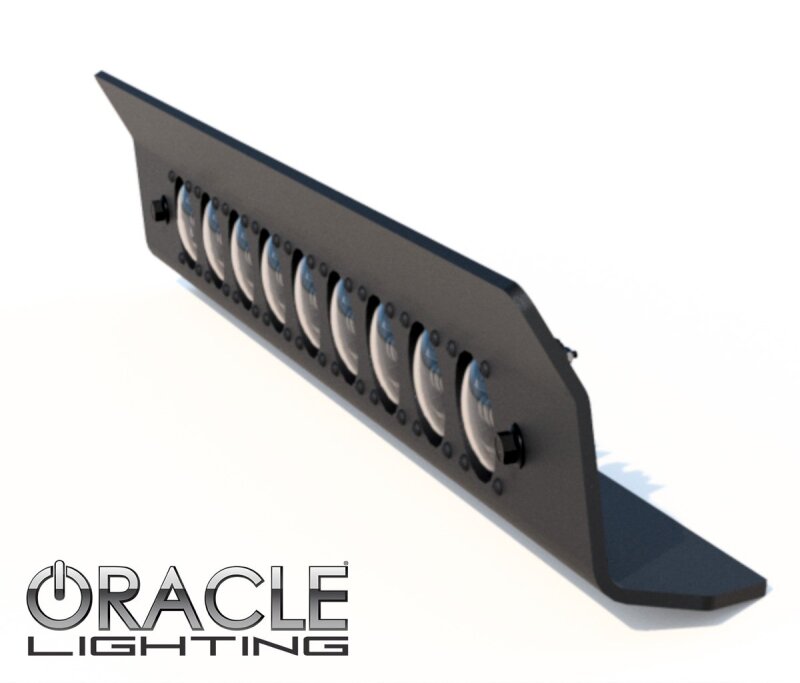

Formed from a 3/16" steel plate with a satin black powdercoat finish, this skid plate is built to take a beating. The 9× high-output 15W LED modules feature precision optics for a focused 30° beam width and are rated IP68 for full ingress protection - rugged enough for any terrain. Each module can be individually replaced for long-term peace of mind.
Installation is a simple no-drill process with all necessary hardware included. The included switched relay wiring harness makes wiring easy, with a dedicated switch for on/off operation or direct connection to the factory AUX switches on equipped Jeeps.
Mojave Gladiator: Shock reservoir relocation is required for Gladiator JT Mojave models.
Bumper Compatibility: Designed to work with the factory-style Jeep bumper. May work with many aftermarket bumpers, but ORACLE Lighting does not guarantee fitment with aftermarket winch or bumper configurations.
Key Features
-

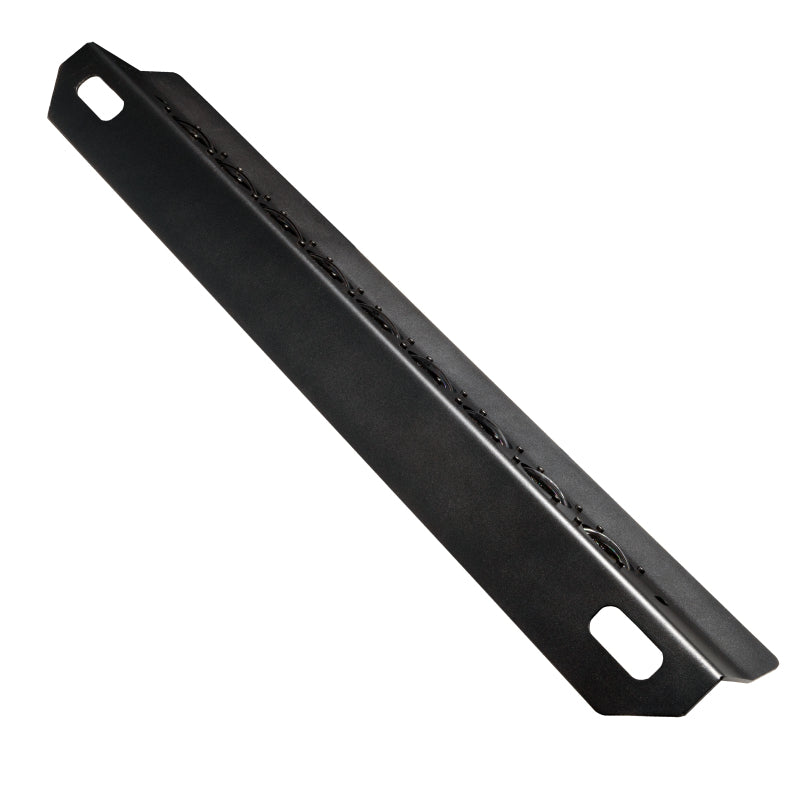

3/16" Steel Plate Construction - satin black powdercoat finish; heavy-duty underbody protection
-
9× High-Output 15W LED Modules - 135W total; 9,000 lumens of precision-focused light
-
30° Beam Width - advanced optic design for optimal forward and trail illumination
-
IP68 Ingress Protection - fully sealed against dust and water immersion
-
DOT, SAE & E9 Marked - meets international lighting compliance standards
-

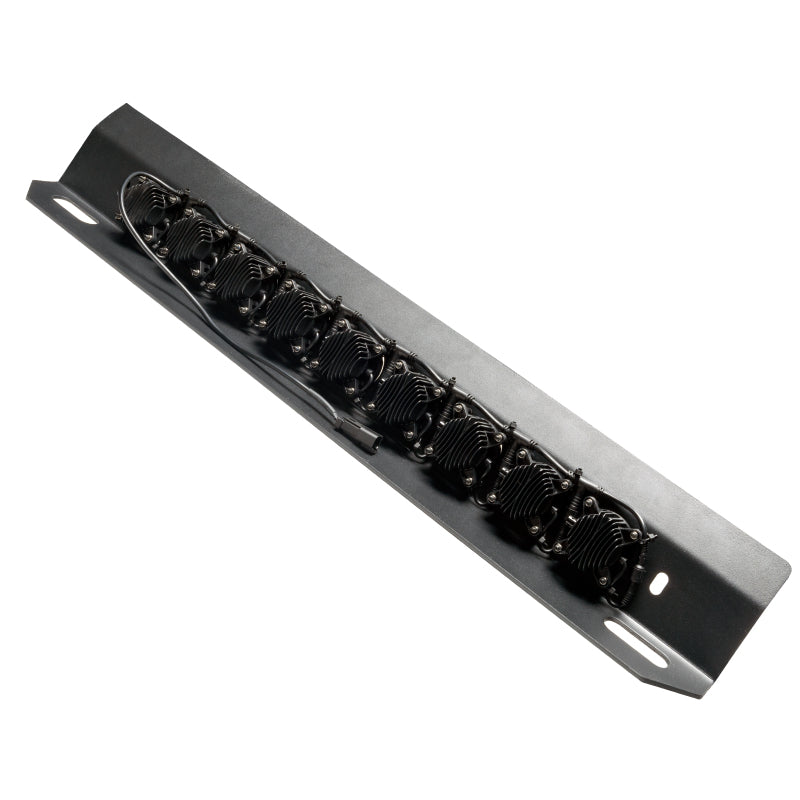

Individually Replaceable Modules - replace a single emitter without replacing the entire unit
-
No-Drill Installation - all mounting hardware included
-
Switched Relay Wiring Harness - included; dedicated on/off switch or AUX switch compatible
-
Factory AUX Switch Compatible - integrates with equipped Jeep JL/JT AUX switch panels
-
1-Year Warranty - backed by ORACLE Lighting
Performance & Technical Specifications
-
LED Modules: 9× High-Output 15W
-
Total Wattage: 135W
-
Total Lumens: 9,000 lm
-
Power Draw: 6A @ 12V DC
-
Beam Width: 30°
-
Optics: Advanced LED Optic Design
-
IP Rating: IP68
-
Compliance: DOT, SAE & E9 Marked
-
Plate Material: 3/16" Steel
-
Finish: Satin Black Powdercoat
-
Emitter Colors: White, Amber, Yellow
-
Module Replacement: Individually Replaceable
-
Installation: No-Drill; Hardware Included
-
Wiring: Switched Relay Harness + AUX Switch Compatible
-
Warranty: 1 Year
Vehicle Fitment

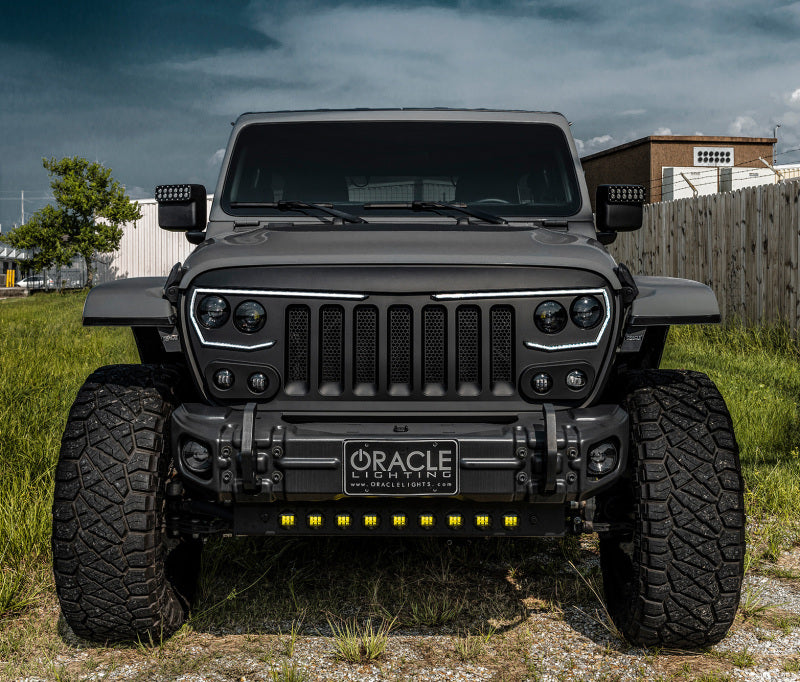

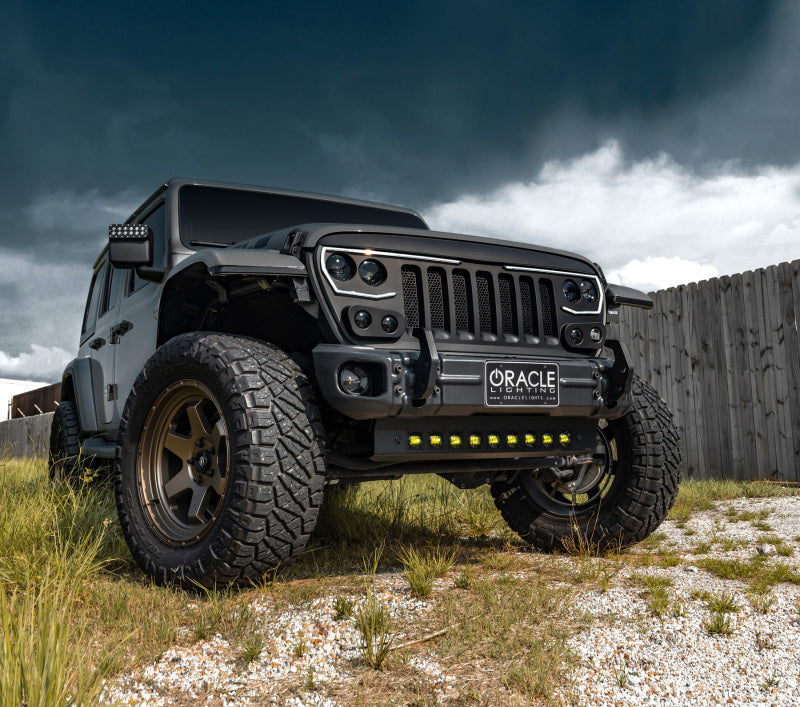

- 2018-2025 Jeep Wrangler JL (all trims)
- 2020-2025 Jeep Gladiator JT (all trims)
Gladiator JT Mojave: Shock reservoir relocation required.

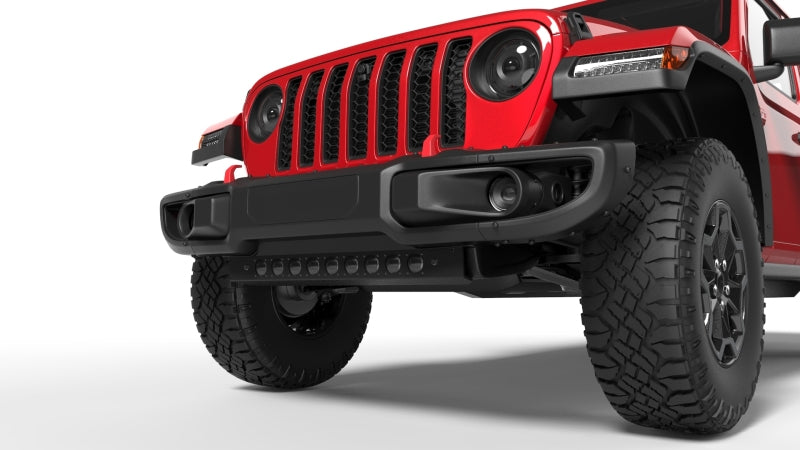

Bumper Note: Designed for factory-style Jeep bumper. Aftermarket bumper/winch fitment not guaranteed.
What's Included
- Skid Plate Lighting System
- Switched Relay Wiring Harness (with on/off switch)
- Mounting Hardware
