Everything you need to mount a powerful off-road light bar on your 2007-2015 Jeep Wrangler JK hood - no drilling, no fabrication required. This combo bundles ORACLE's Black Series 7D 22" 120W dual-row LED bar (10,200 lumens, CREE LEDs) with a pair of bolt-on hood hinge mounting brackets built specifically for the JK.
Product Overview

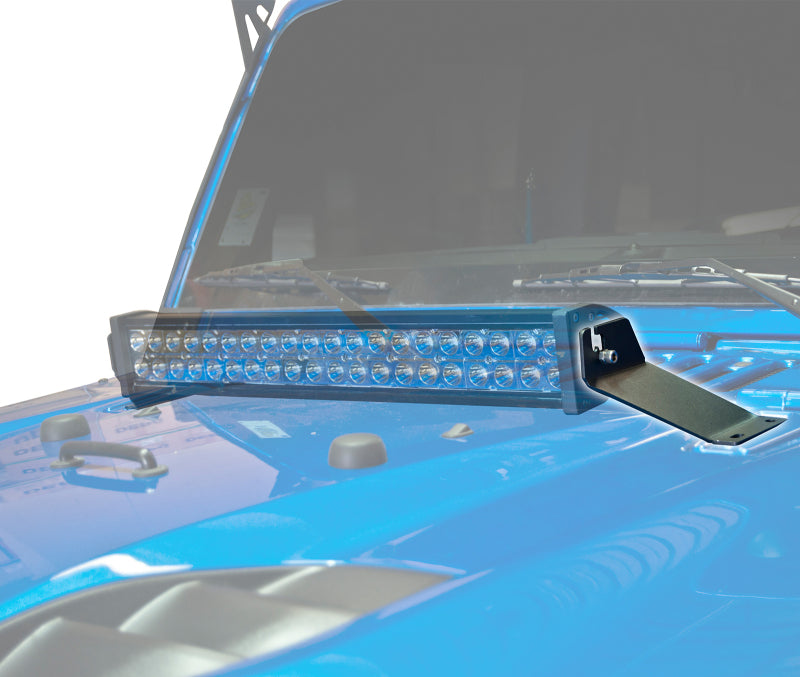

This combo kit gives you everything needed to add a high-output off-road light bar to your 2007-2015 Jeep Wrangler JK hood in one box. The welded steel mounting brackets attach directly to your factory hood hinges using the existing bolt hardware - no drilling, no modification, no fabrication required.
The included ORACLE Black Series 7D 22" 120W dual-row LED bar delivers 10,200 lumens of CREE-powered wide and narrow beam output with the signature BlackSeries inner blackout bezel, IP67 waterproofing, and a 50,000-hour LED lifespan built to handle whatever the trail throws at it.
Designed and engineered specifically for the JK platform, this kit fits all 2007-2015 Jeep Wrangler JK models and includes all mounting hardware for a complete, clean installation.

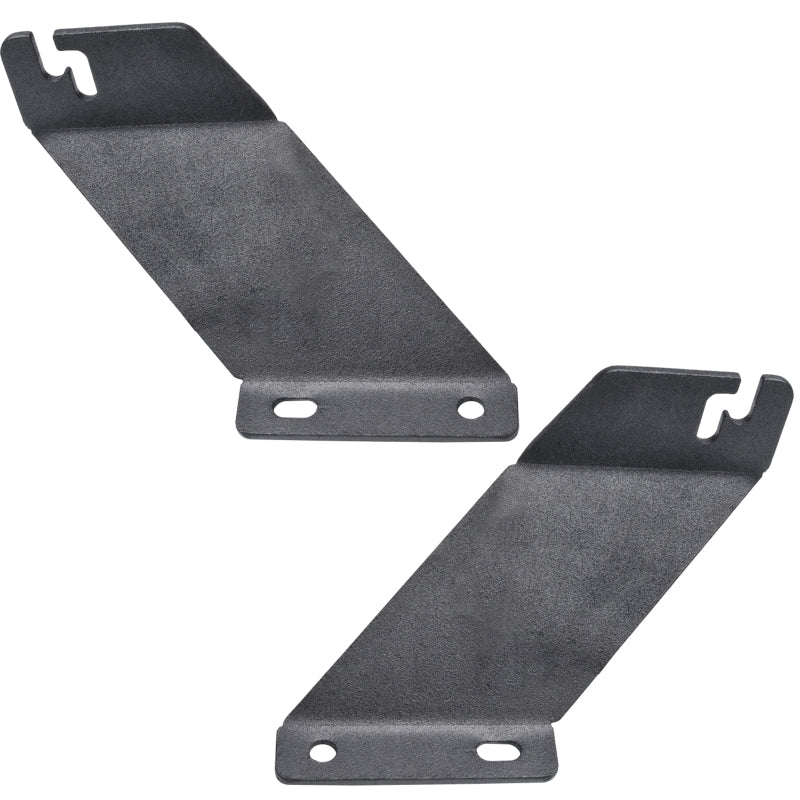

Hood Mount Brackets (x2) - Part# 2043-504
- Welded steel construction
- Weather-resistant coating
- Mounts to factory hood hinge
- Uses factory bolt hardware
- Dims: 6.5"W x 3.25"H x 5.1"L
- Weight: 15.6 oz each

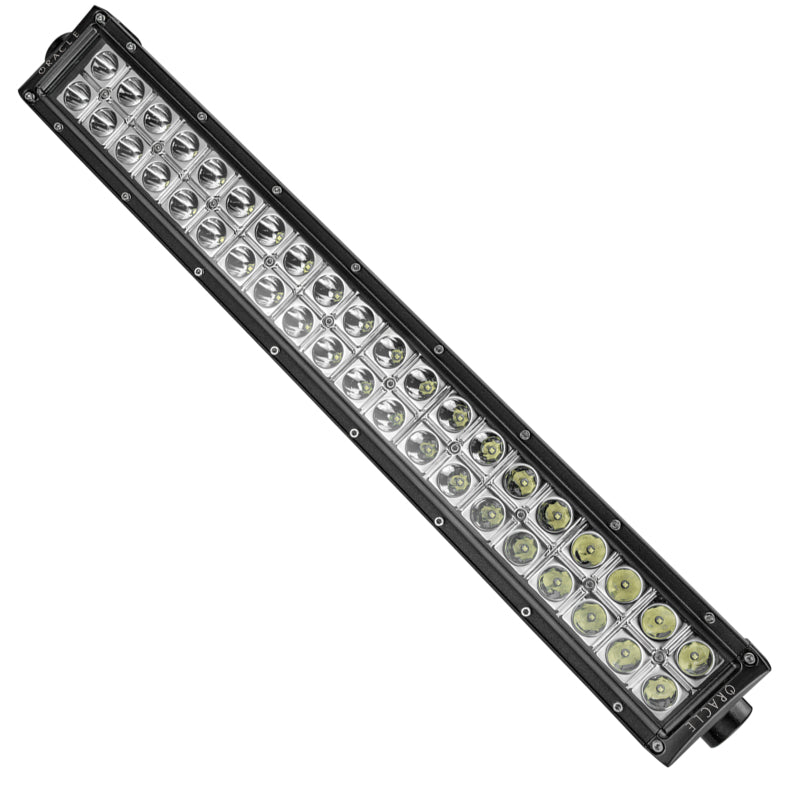

22" 120W Light Bar (x1) - Part# 5807-001
- 10,200 lumens, CREE 7D optics
- Wide + narrow dual beam
- BlackSeries blackout bezel
- IP67 waterproof, shockproof
- 10A @ 12V / 5A @ 24V
- 50,000-hour lifespan
Key Features
-
Bolt-On Hood Mount - Attaches to factory hood hinge hardware, no drilling or modification required
-
JK-Specific Fit - Engineered specifically for all 2007-2015 Jeep Wrangler JK models
-
Welded Steel Construction - Heavy-duty brackets with weather-resistant coating
-
10,200 Lumens - ORACLE Black Series 7D 22" 120W CREE dual-row LED bar
-
Wide + Narrow Beams - Dual beam output for maximum trail visibility
-
"BlackSeries" Inner Blackout Bezel - Aggressive, stealthy appearance
-
IP67 Waterproof Rating - Protected against dust and water intrusion
-
Shockproof Design - Built for off-road vibration and impact
-
Low Power Draw - 10A @ 12V / 5A @ 24V
- 50,000-Hour LED Lifespan
-
Complete Kit - All mounting hardware included
Performance & Technical Specifications
-
Combo Part Number: 2143-504
-
Bracket Part Number: 2043-504 (x2)
-
Light Bar Part Number: 5807-001
-
Light Bar Wattage: 120W
-
Lumens: 10,200 lm
-
Color Temperature: 6,000K
-
Amp Draw: 10A @ 12V / 5A @ 24V
-
Beam Pattern: Wide + Narrow (Dual)
-
Waterproof Rating: IP67
-
LED: CREE (7D Optic)
-
LED Lifespan: 50,000 hours
-
Light Bar Length: 22"
-
Light Bar Weight: 5 lbs 7 oz
-
Bracket Dimensions: 6.5"W x 3.25"H x 5.1"L
-
Bracket Weight: 15.6 oz each
-
Bracket Construction: Welded Steel, Weather-Resistant Coating
-
Fitment: 2007-2015 Jeep Wrangler JK (All)
-
Warranty: 1 Year
Vehicle Fitment
Fits: 2007-2015 Jeep Wrangler JK - All Models (2-door and 4-door Unlimited)
Note: This kit is designed for the 2007-2015 JK generation only. It does not fit the 2018+ Jeep Wrangler JL.

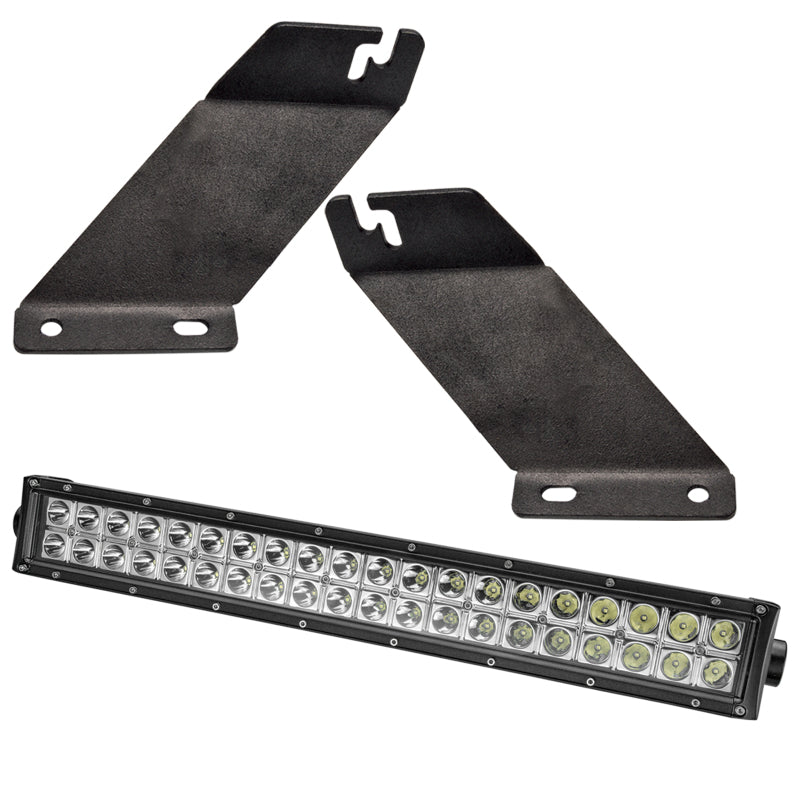

What's Included
- (2) ORACLE Jeep JK Hood Mounting Brackets SM (Part# 2043-504)
- (1) ORACLE Black Series 7D 22" 120W Dual Row LED Light Bar (Part# 5807-001)
- Mounting Hardware
