Rugged 40W LED replacement for 5.75" sealed beam applications. Built for off-road conditions with a die-cast aluminum housing, polycarbonate lens, and epoxy-sealed electronics - plug-in H4 fitment, 30,000-hour rated life.
Product Overview

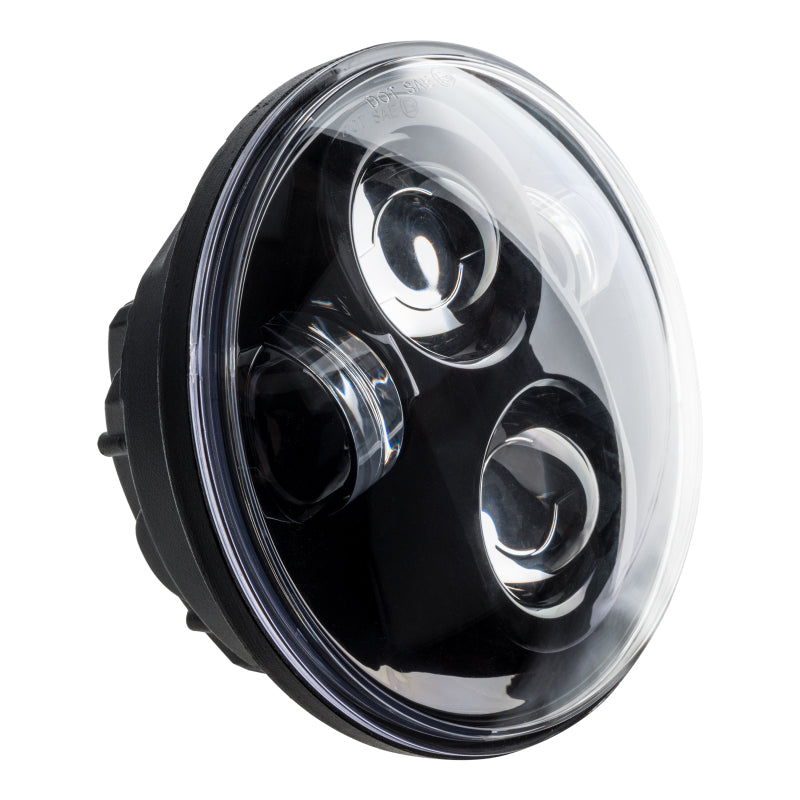

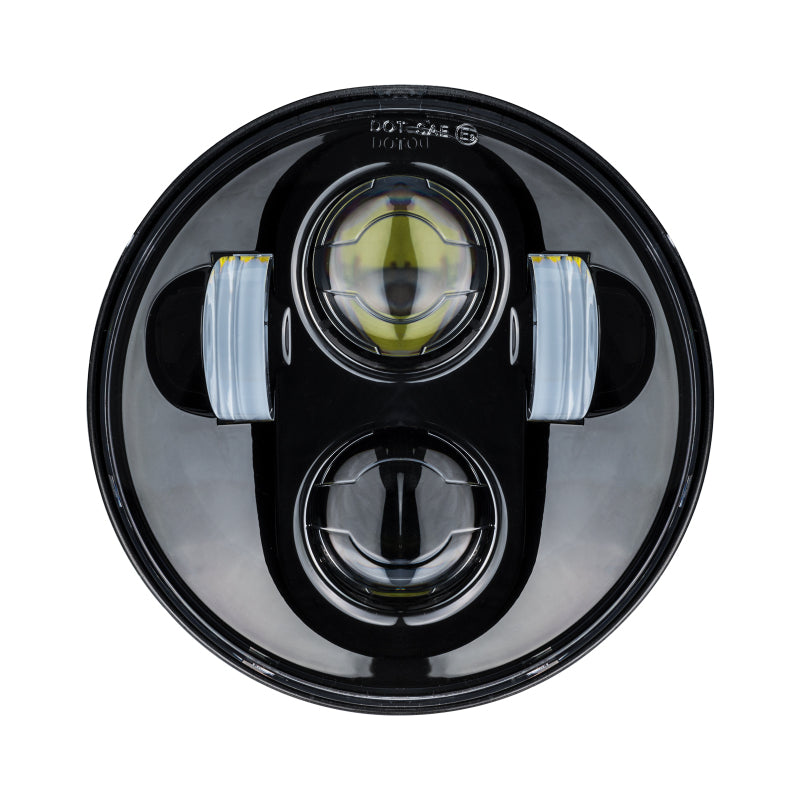

The ORACLE 5.75" 40W Replacement LED Headlight is purpose-built for vehicles that still run 5.75" sealed beam lamps - think classic muscle cars, Jeep CJ models, motorcycles, and off-road builds. This is the drop-in upgrade that eliminates the dim, inefficient halogen sealed beam and replaces it with a high-output LED unit engineered to handle whatever the trail throws at it.
The die-cast aluminum housing dissipates heat efficiently while the polycarbonate lens resists impact and UV degradation. The solid-state LED design eliminates filament breakage from vibration - a major failure point on rough terrain - and the epoxy-sealed electronics block moisture and corrosion from the inside out. Whether you are rock crawling in mud or running dusty desert tracks, this headlight is built to stay on.
Output is rated at 2,550 lumens on low beam and 3,400 lumens on high beam with a clean 6,000K daylight color temperature. Installation is straightforward: the H4 connector plugs directly into the factory harness on most applications, making this a genuine plug-and-play swap for any 5.75" sealed beam vehicle.
Key Features
-
True replacement fit for any vehicle with a 5.75" sealed beam lamp opening
-

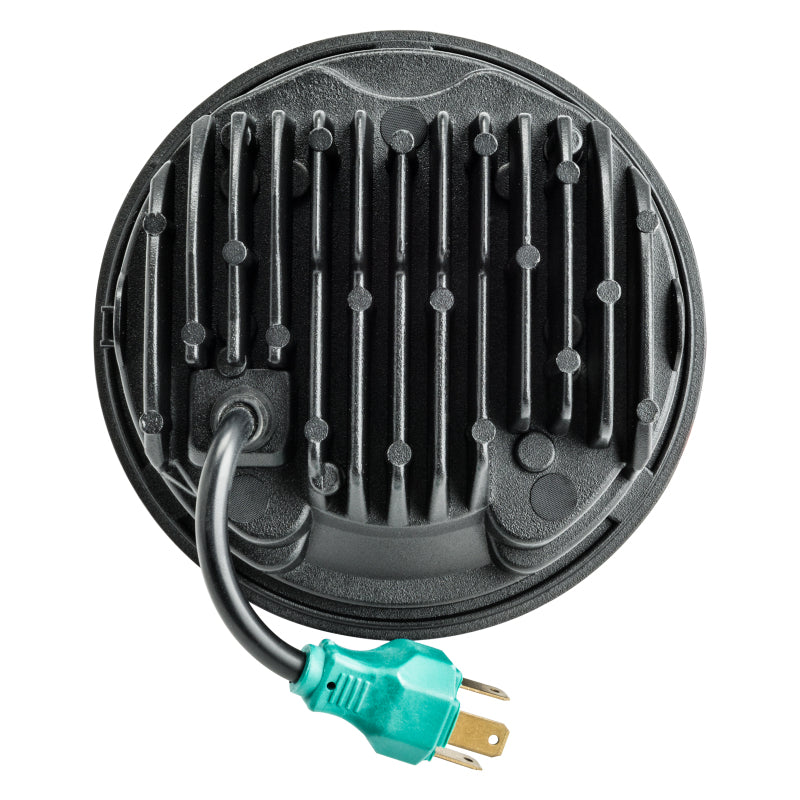

Die-cast aluminum housing for superior heat management and structural rigidity
-
Solid-State luminaire design eliminates filament failure from vibration
-
Epoxy-sealed electronics provide moisture and corrosion resistance
-
Polycarbonate lens resists impact and UV damage
-
H4 plug connector for direct factory harness compatibility on most vehicles
-
Dual-beam output: 2,550lm low / 3,400lm high beam
-
6,000K daylight color temperature for improved visibility and aesthetics
-
Wide voltage range: 10-32V DC - compatible with 12V and 24V systems
-
30,000-hour rated lifespan - outlasts incandescent and halogen alternatives many times over
-
Black bezel finish for a clean, aggressive appearance
Performance & Technical Specifications
-
Low Beam Lumens: 2,550 lm
-
High Beam Lumens: 3,400 lm
-
Low Beam Wattage: 30W
-
High Beam Wattage: 40W
-
Voltage Range: 10-32V DC
-
Color Temperature: 6,000K
-
Housing Construction: Die-cast Aluminum
-
Lens Material: Polycarbonate (PC)
-
Bezel Color: Black
-
Plug Type: H4
-
Rated Lifespan: 30,000 hrs
-
Quantity: Sold individually (1 light per package)
Vehicle Fitment
Fits any vehicle equipped with a 5.75" round sealed beam headlight opening. Common applications include:
- Jeep CJ series (CJ-5, CJ-7, CJ-8)
- Classic muscle cars and trucks with 5.75" round headlights
- Motorcycles and cafe racers with 5.75" headlight buckets
- Off-road builds and custom vehicles using a 5.75" lamp
Verify your vehicle uses a 5.75" sealed beam (not a 5.5" or 7" lamp) before ordering. Plug type is H4 - confirm harness compatibility before purchase.
What's Included
- (1) ORACLE 5.75" 40W Replacement LED Headlight - Black Bezel
Sold as a single unit. Order two for a complete headlight replacement on dual-headlight vehicles.
