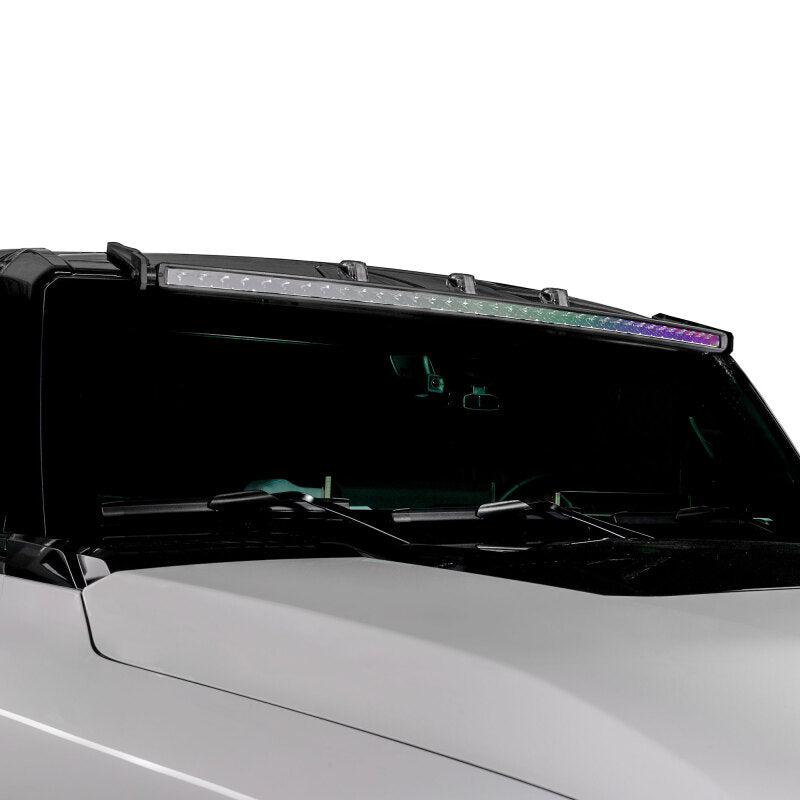

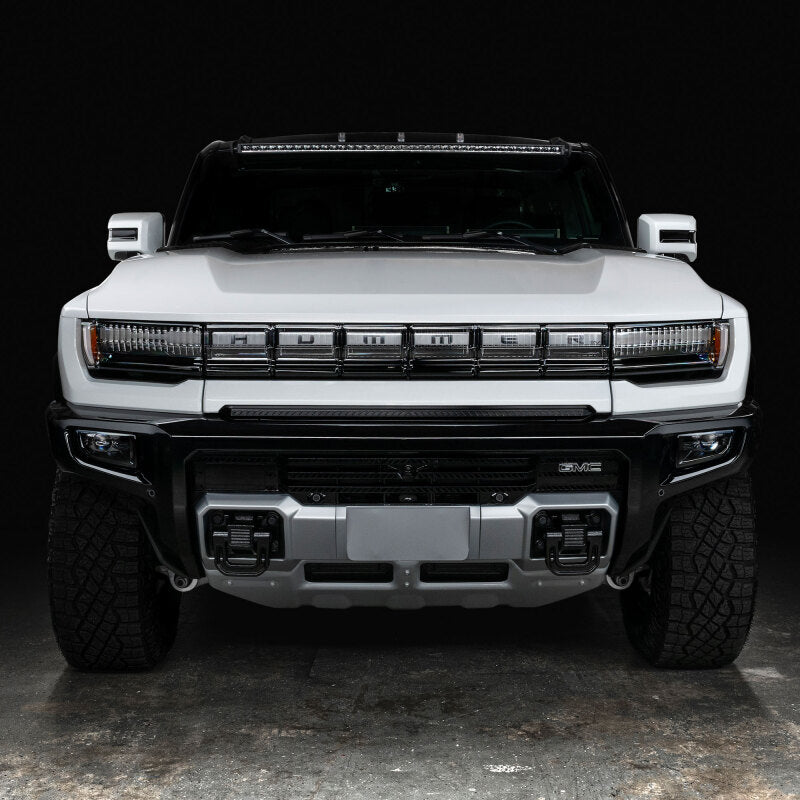

Low-profile, windshield-curved roof light bar for Hummer EV with reduced wind noise, unobstructed factory cab clearance lights, and long-range driving beam performance with selectable amber or white clearance lighting.
Part Number: 6923-023 (Now In Stock)
Product Overview

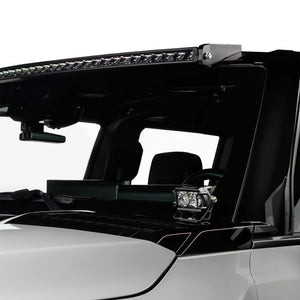

The ORACLE LED Light Bar for the Hummer EV features a unique low-profile design that helps reduce wind noise and does not block factory cab clearance lights. CAD-designed brackets are engineered specifically for this application for a straightforward DIY-friendly install.

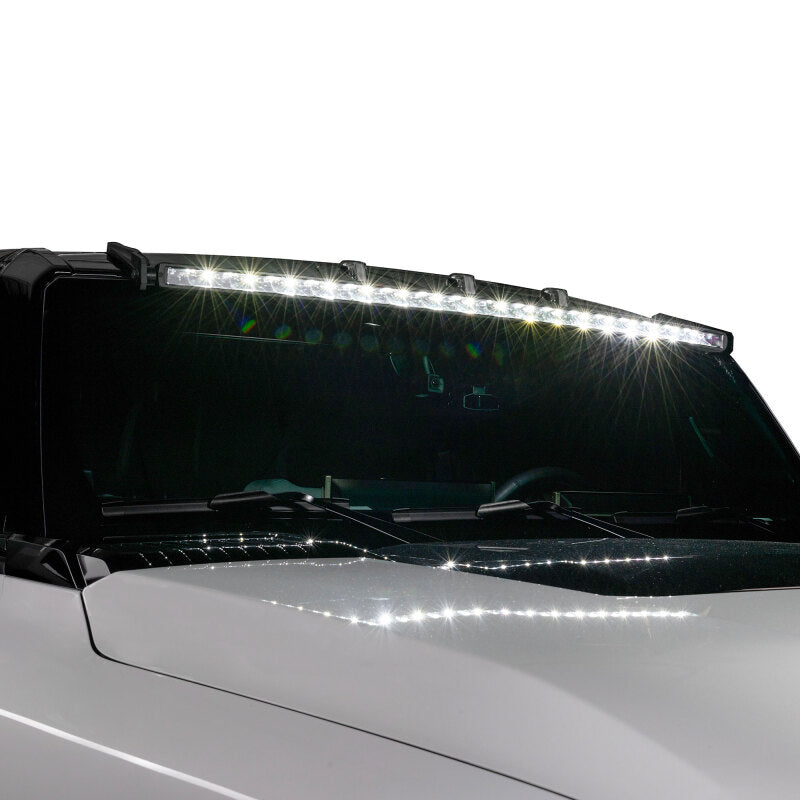

Designed to match the curvature of the Hummer windshield, this system stands apart from generic options with application-specific fitment, clean styling, and strong performance-delivering up to 22,200 raw lumens with long-range projection.

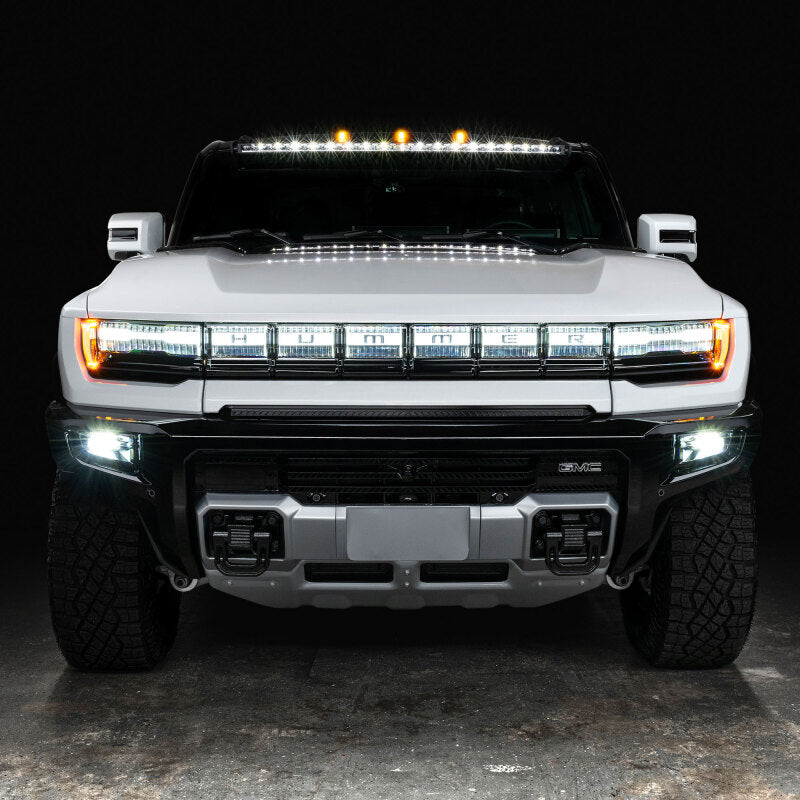

The multifunction design includes selectable amber or white clearance lights. These can be wired to an Aux switch, parking lights, DRL circuit, or left disconnected if you do not want to use the clearance feature.
The low-profile setup also provides a quieter and more aerodynamic installation than traditional roof bar configurations and does not interfere with hardtop removal.
Important: As with any roof-mounted light bar setup, high-powered car washes with overhead brushes should be avoided.
Key Features
-
36 × 7W LED main light
-

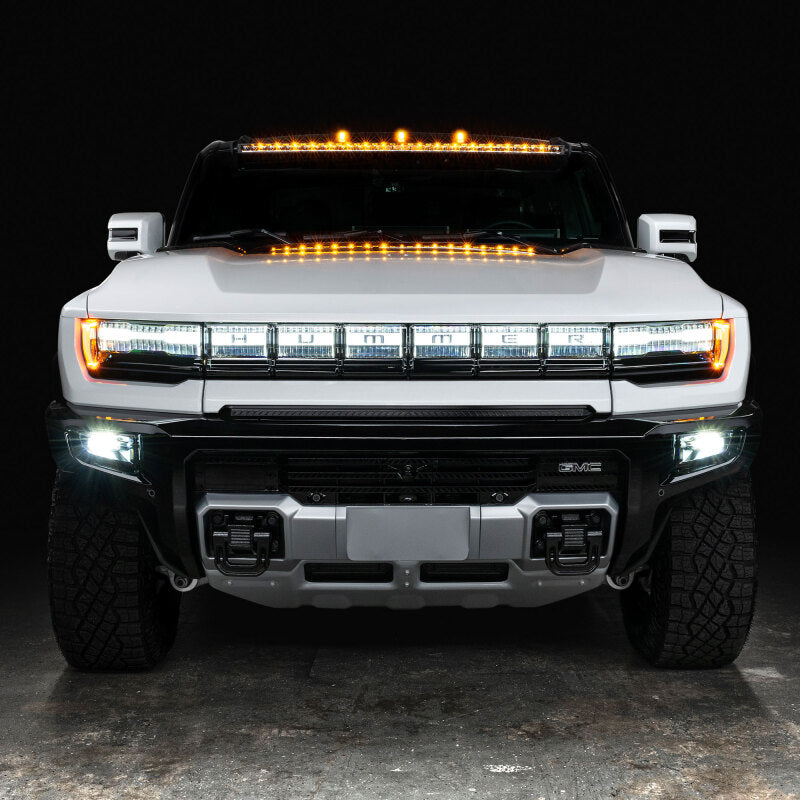

Selectable amber or white clearance lights
-

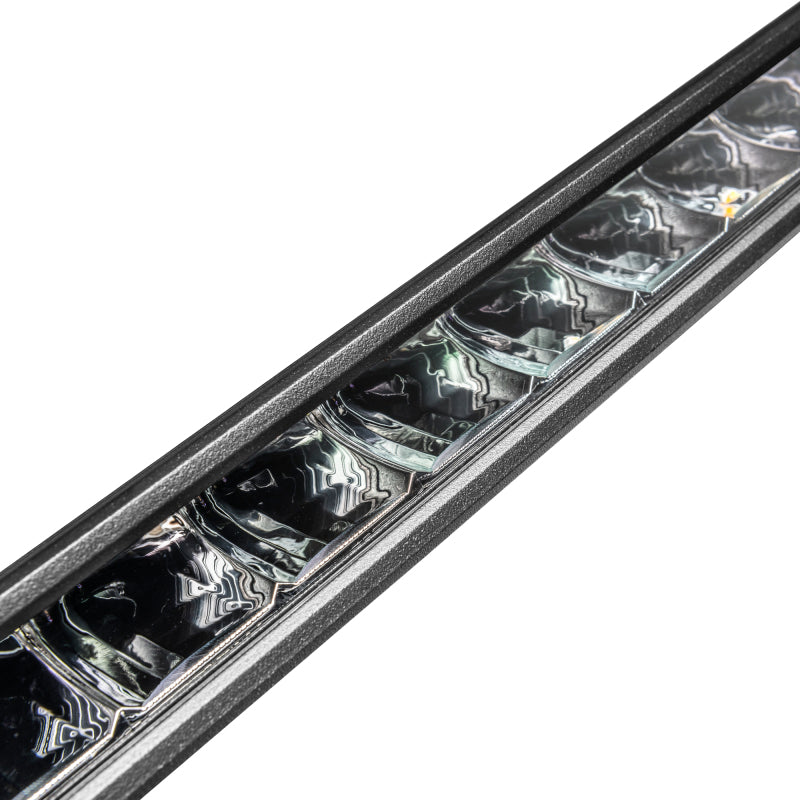

Precision reflector-facing technology
- Under / over voltage and reverse polarity protection
- Electronic Thermal Management
- Innovative patent-pending design
- Designed & engineered in the USA
- LED lifespan 50,000+ hours

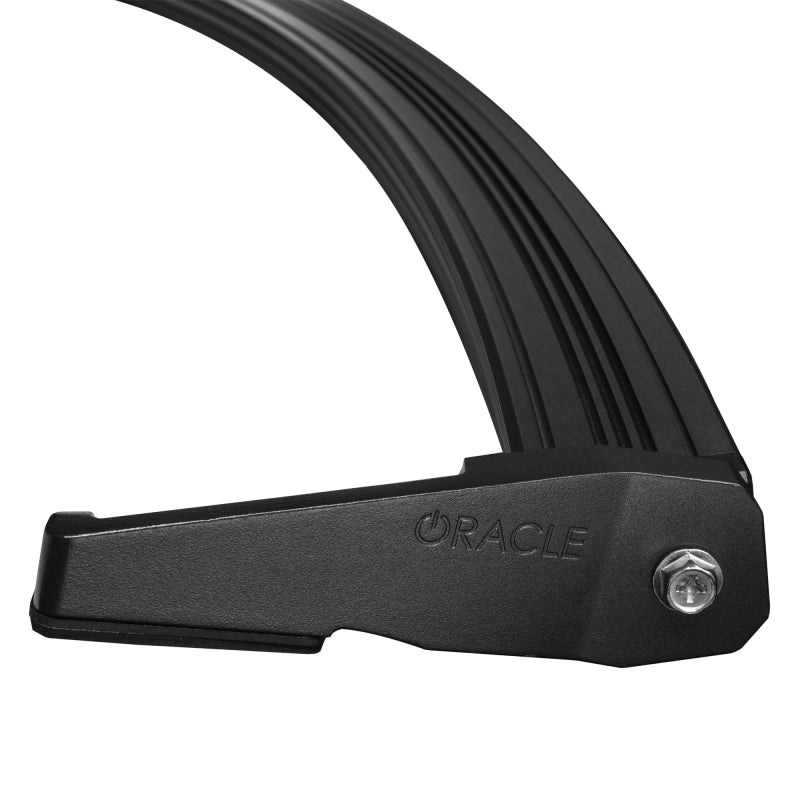

Bracket Specifications
-
Material: Cast Aluminum
-
Finish: Black Powder Coat
-
Fitment: Hummer EV
-
Base: Rubberized Base Gaskets
Performance (Driving Beam)
-
Raw Lumens: 22,200 lm
-
Effective Lumens: 18,800 lm
-
Total Wattage: 252W
-
Total Amp Draw: 16A @ 12V DC
-
Beam Angle: 50° Driving Beam
-
Max Projection: 1 Lux @ 460m
-
Color Temperature: 5500K-6000K
Optic Note: Reflector-facing technology is designed to optimize usable output and visibility from the individual high-power emitters.
Materials & Construction
-
Outer Housing: Polycarbonate
-
Lamp Housing: 6030 Aluminum
-
Reflector: Plated Polycarbonate
-
Lens: Lexan Polycarbonate
-
Finish: Polyester Powder Coat
-
Breathers: Stainless Steel Anti-Fog Breather Valves
-
Connectors: Molded IP68 Waterproof Connectors
-
Ingress Protection: IP69
What's Included

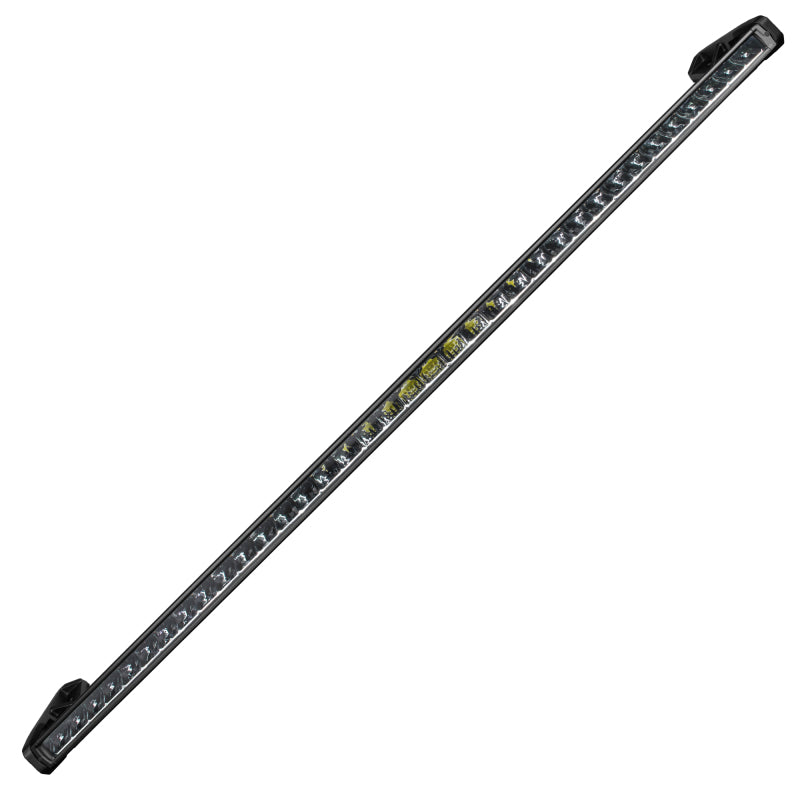

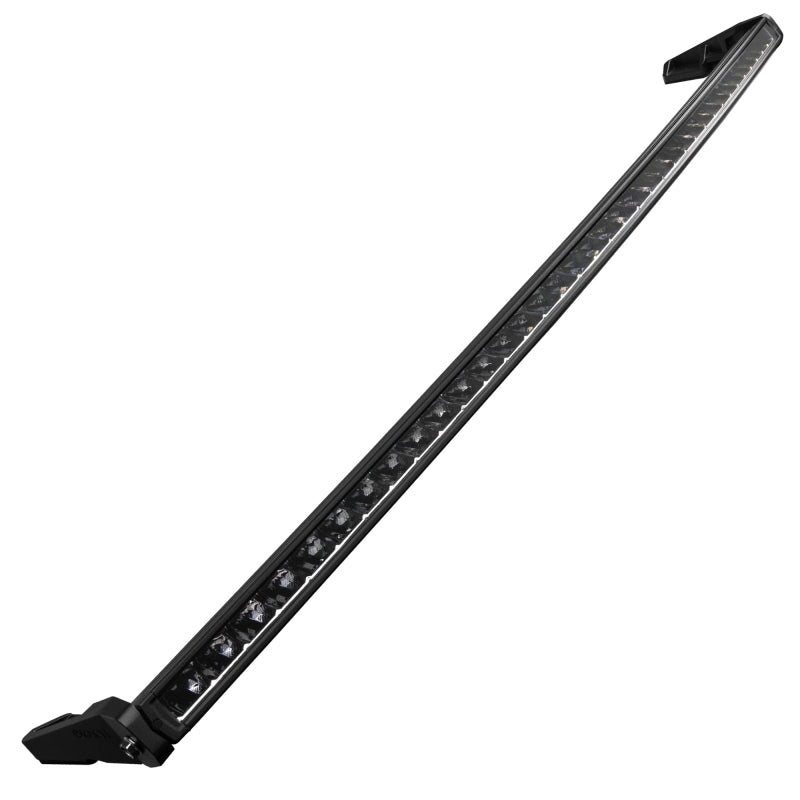

- (1) 2022-2025 Hummer EV 50" Roof Mount Curved Light Bar

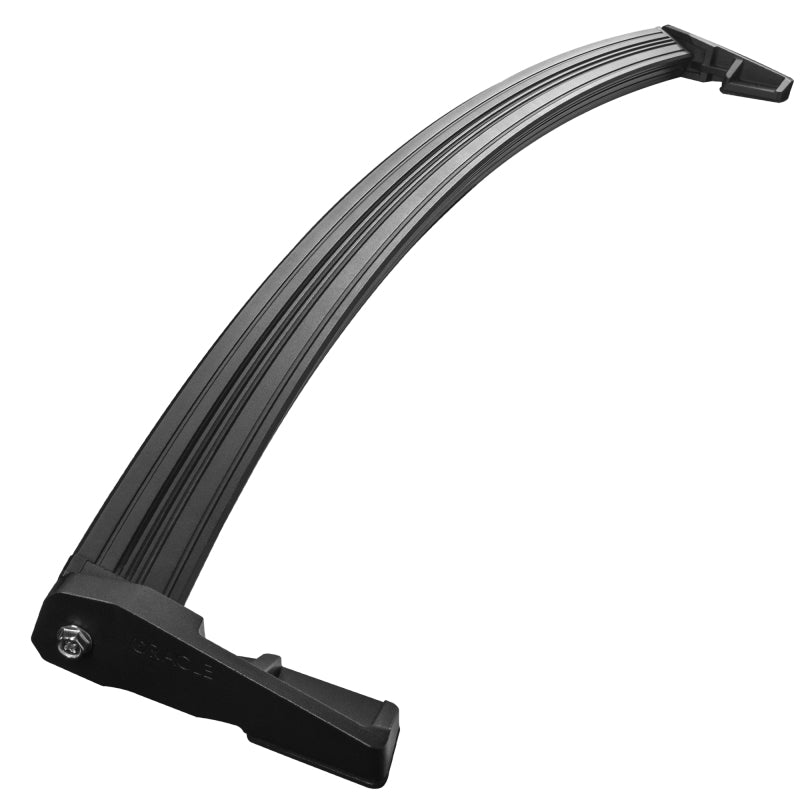

- (2) Mounting Brackets

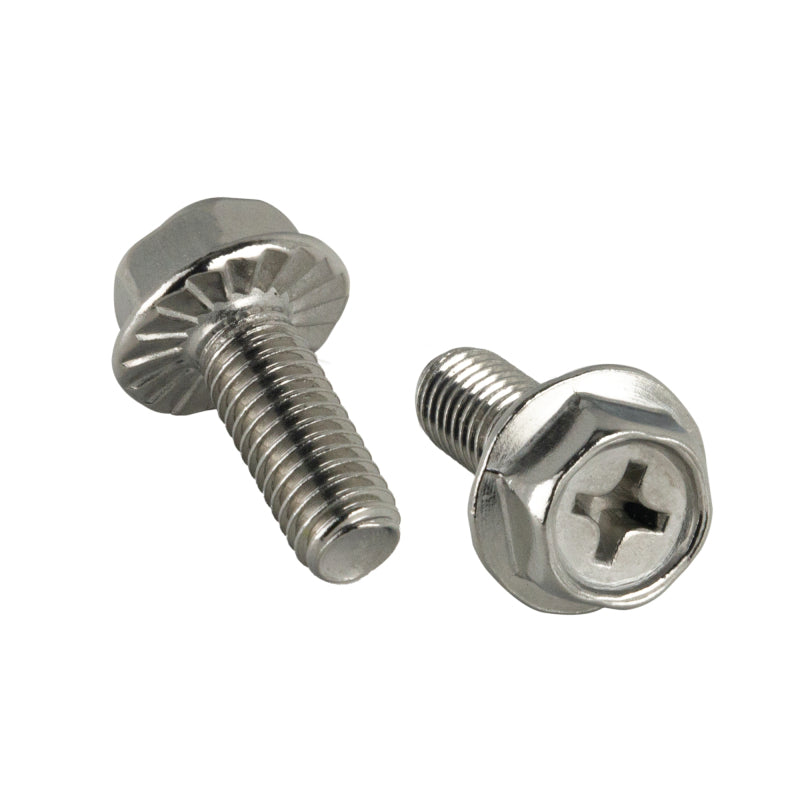

- Mounting Hardware & Weather Gasket
The ORACLE LED Light bar for the Hummer EV features a unique Low-Profile design which reduces wind noise and does not block the factory cab clearance lights. The brackets are CAD-designed specifically for this application for easy installation. The LED Light bar features an amazing 22,200 Lumens brightness which projects over 2,000 ft distance! Designed to match the curvature of the Hummer windshield, this light bar stands out from some of the other generic light bar options on the market in both Quality and Performance.
