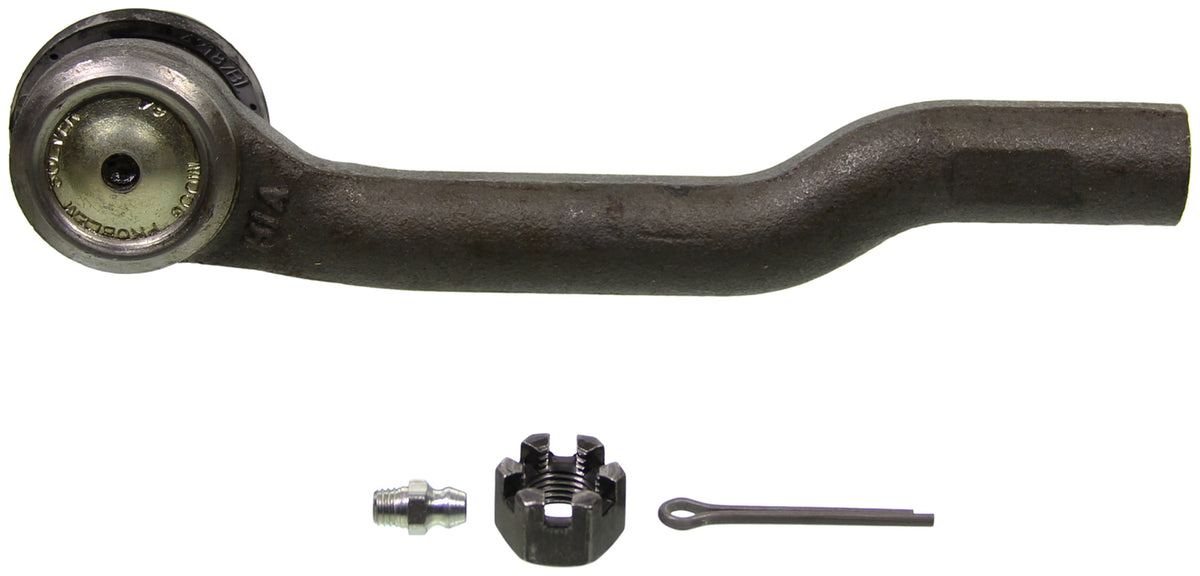

MOOG 99-05 Suzuki Grand Vitara Front Right Outer / Right Outer Tie Rod End - ES800426

MOOG ES800426 Front Right Outer Steering Tie Rod End for Chevrolet Tracker

Features

• RESTORES LIKE-NEW STEERING -- Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and promoting longer life
• GREASEABLE SOCKET -- Reduces corrosion and wear by allowing new lubricant to flush contaminants
• ABSORBS IMPACT -- Belleville preload washer helps keep the bearing package tight as bearings wear
• PROBLEM SOLVER® GUSHER BEARING -- Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life
• STRONG AND DURABLE -- Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength
• COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
• RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Specifications

• Type: Straight
• End 1 Thread Diameter: 14.0 MM
• End 1 Gender: Female
• End 2 Gender: Female
• End 2 Thread Diameter: 12.0 MM
• End 1 Thread Direction: Clockwise
• End 2 Thread Direction: Clockwise
• End 2 Thread Pitch: 1.5 MM
• End 1 Thread Pitch: 1.5 MM
• Length - Stud Center To End: 6.880 IN

Application

• 1999-2005 Suzuki Grand Vitara JLS JLX XL-7 Touring Limited XL-7 Limited JLS Plus SE JLS Plus JLX Plus JLX Plus SE (Front Right Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1999-2004 Suzuki Vitara (Front Right Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2002-2006 Suzuki XL-7 (Front Right Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1999-2004 Chevrolet Tracker (Front Right Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces)
