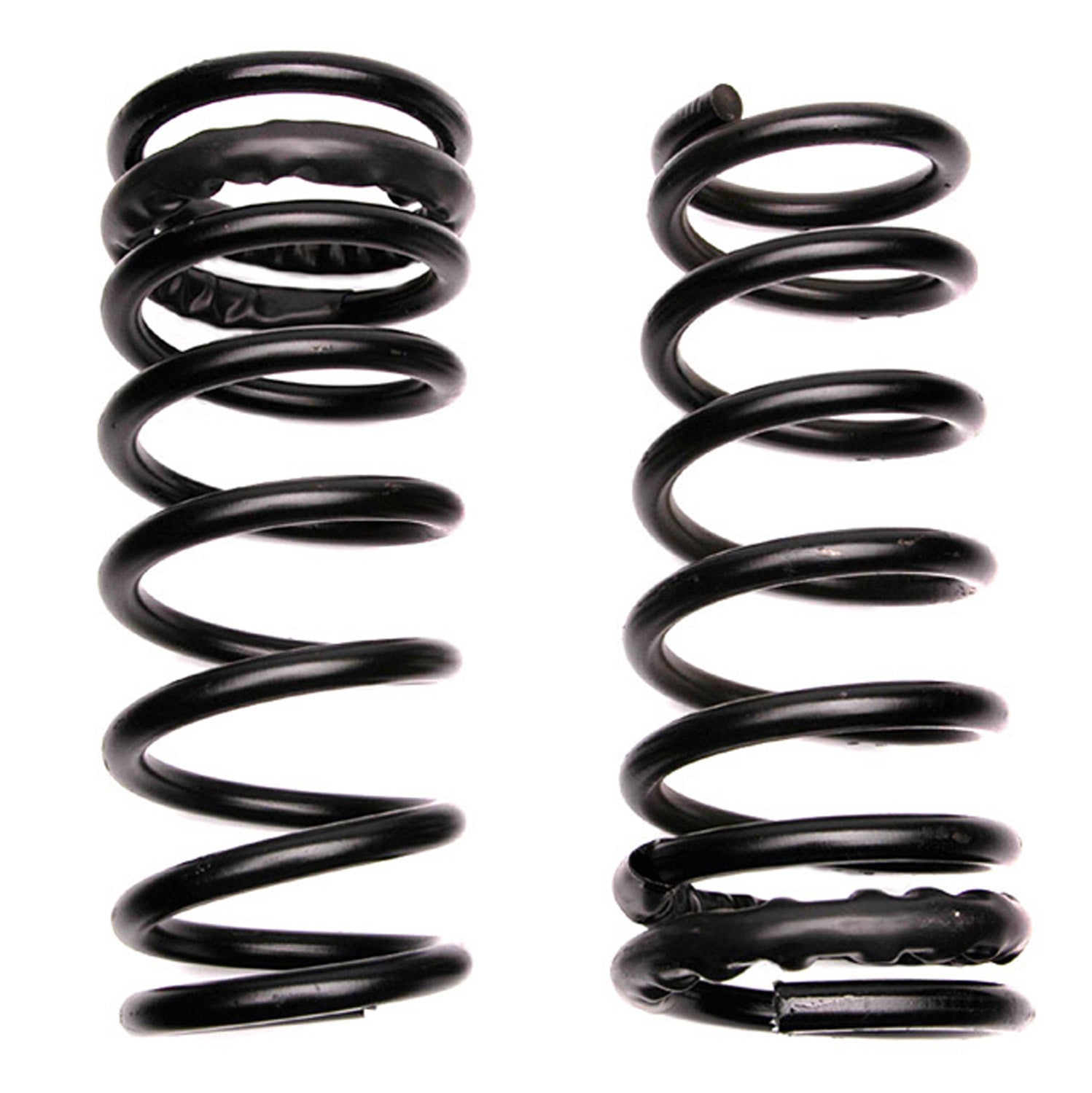

MOOG 95-02 Dodge Ram 2500 Front Coil Springs - CC1712

MOOG CC1712 Front Coil Spring Set for Dodge Ram 2500

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Squared
• End 2 Type: Tangential
• Wire Diameter: 21.40 MM, 0.84 IN
• Spring Color: Black
• Front Spring Relaxed Length: 18.09 IN, 459.50 MM
• Front Spring Compressed Length: 14.00 IN, 355.60 MM
• Bar Diameter - Inches: 0.84
• Bar Diameter - MM: 21.40
• Spring Rate - Lbs Per Inch: 423.00
• Load - Lbs: 1670.00
• Installation Height - Inches: 14.00
• Installation Height - MM: 355.60
• Free Height - Inches: 18.09
• Free Height - MM: 459.50

Application

• 1995-2002 Dodge Ram 2500 (Front) (Doors: 2, 4 & Body: Extended Cab Pickup & Liter: 5.9 & Wheel Base: 155.0, 154.7 & Drive: 4WD / Qualifier: with 8,800 (lb) Gross Vehicle Weight (GVW), Variable Rate); 1995-2002 Dodge Ram 3500 (Front) (Doors: 2, 4 & Body: Extended Cab Pickup & Liter: 5.9 & Wheel Base: 155.0, 154.7 & Drive: 4WD / Qualifier: Variable Rate)
