MOOG 93-98 Jeep Grand Cherokee Rear Coil Springs - CC721

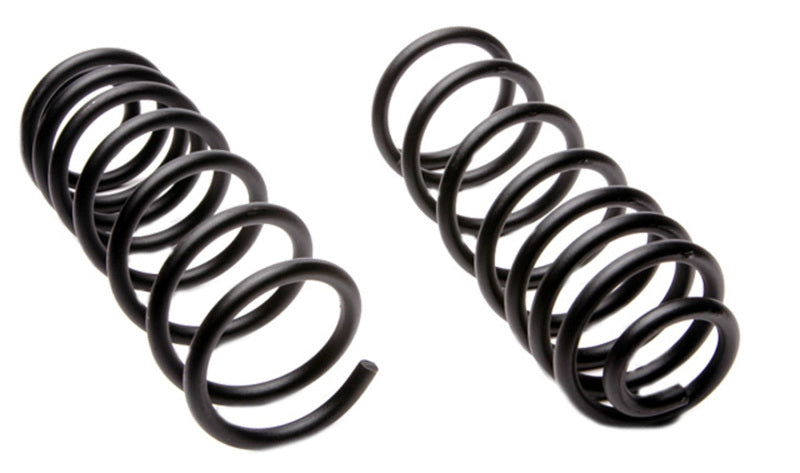

MOOG CC721 Coil Spring Set for Jeep Grand Cherokee

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Tangential
• End 2 Type: Pigtail
• Wire Diameter: 13.70 MM, 0.54 IN
• Spring Color: Black
• Rear Spring Relaxed Length: 359.70 MM, 14.16 IN
• Rear Spring Compressed Length: 11.00 IN, 279.40 MM
• Rear Spring Outside Diameter: 5.100 IN
• ID - Inches: 4.02
• ID - MM: 102.10
• Bar Diameter - Inches: 0.54
• Bar Diameter - MM: 13.70
• Spring Rate - Lbs Per Inch: 182.00
• Load - Lbs: 572.00
• Installation Height - Inches: 11.00
• Installation Height - MM: 279.40
• Free Height - Inches: 14.16
• Free Height - MM: 359.70

Application

• 1993-1998 Jeep Grand Cherokee (Rear) (Qualifier: Variable Rate)
