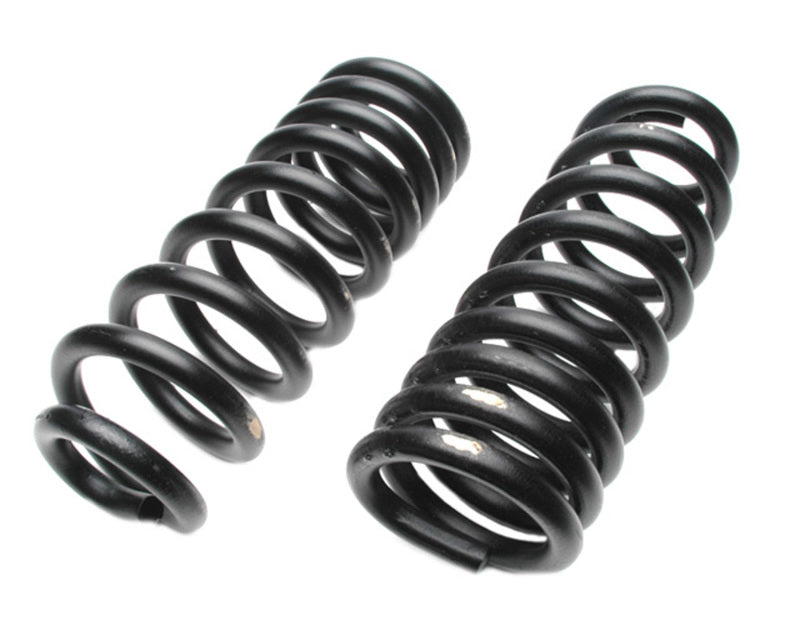

MOOG 92-98 Ford E-150 Econoline Front Coil Springs - CC876

MOOG CC876 Front Coil Spring Set for Ford E-350 Econoline

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Pigtail
• End 2 Type: Pigtail
• Wire Diameter: 19.80 MM, 0.78 IN
• Spring Color: Black
• Front Spring Outside Diameter: 5.620 IN
• Front Spring Relaxed Length: 395.20 MM, 15.56 IN
• Front Spring Compressed Length: 330.20 MM, 13.00 IN
• ID - Inches: 3.98
• ID - MM: 101.20
• Bar Diameter - Inches: 0.78
• Bar Diameter - MM: 19.80
• Spring Rate - Lbs Per Inch: 589.00
• Load - Lbs: 1510.00
• Installation Height - Inches: 13.00
• Installation Height - MM: 330.20
• Free Height - Inches: 15.56
• Free Height - MM: 395.20

Application

• 1992-1998 Ford E-150 Econoline (Front) (Qualifier: Heavy Duty, with TRAILER TOW Package, Variable Rate); 1992-1998 Ford E-150 Econoline Club Wagon (Front) (Qualifier: Heavy Duty, with TRAILER TOW Package, Variable Rate); 1992-1998 Ford E-250 Econoline (Front) (Qualifier: with 7200 (lb) & 7300 (lb) GVW, Variable Rate); 1992-1996 Ford E-350 Econoline Base XL (Front) (Liter: 5.8, 4.9 / Qualifier: without Towing Package, Variable Rate, Except 9500 (lb) GVW); 1992-1993 Ford E-350 Econoline Club Wagon (Front) (Liter: 5.8, 4.9 / Qualifier: without Towing Package, Variable Rate)
