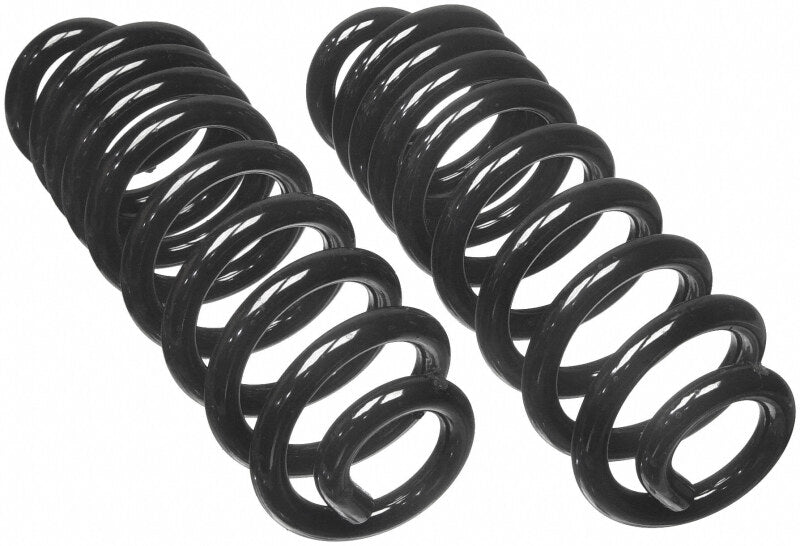

MOOG 92-97 Ford E-350 Econoline Front Coil Springs - CC880S

MOOG CC880S Front Coil Spring Set for Ford E-350 Econoline

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Pigtail
• End 2 Type: Pigtail
• Wire Diameter: 20.60 MM, 0.81 IN
• Spring Color: Black
• Front Spring Outside Diameter: 5.620 IN
• Front Spring Relaxed Length: 421.60 MM, 16.60 IN
• Front Spring Compressed Length: 12.00 IN, 304.80 MM
• ID - Inches: 4.00
• ID - MM: 101.60
• Bar Diameter - Inches: 0.81
• Bar Diameter - MM: 20.60
• Spring Rate - Lbs Per Inch: 652.00
• Load - Lbs: 3006.00
• Installation Height - Inches: 12.00
• Installation Height - MM: 304.80
• Free Height - Inches: 16.60
• Free Height - MM: 421.60

Application

• 1992-1997 Ford E-350 Econoline (Front) (Liter: 7.3, 7.5, 5.8, 4.9 / Qualifier: with Super Duty, Variable Rate); 1992-1997 Ford E-350 Econoline Club Wagon (Front) (Liter: 7.3, 7.5, 4.9, 5.8 / Qualifier: with Super Duty, Variable Rate)
