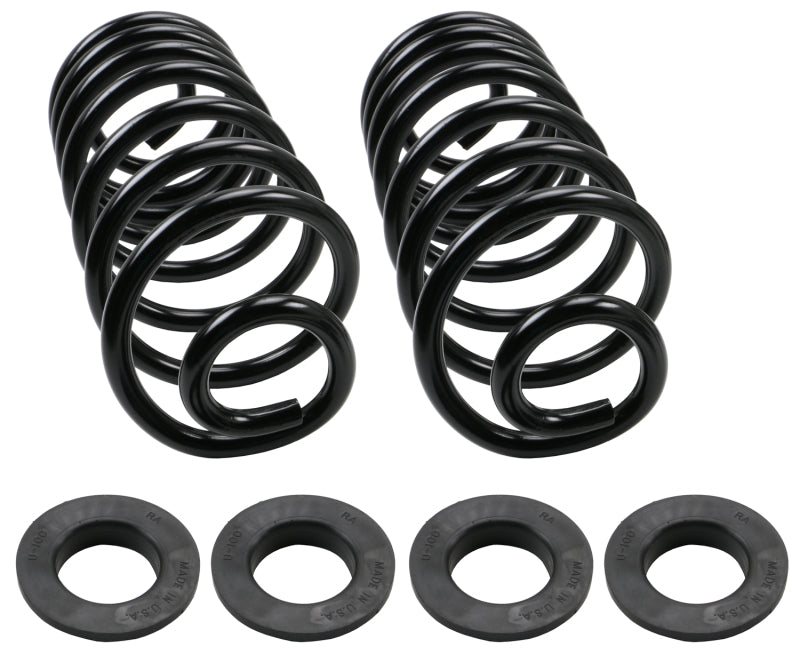

MOOG 92-97 Ford Crown Victoria Rear Coil Springs - CC849

MOOG CC849 Coil Spring Set for Ford Crown Victoria

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Pigtail
• End 2 Type: Pigtail
• Wire Diameter: 15.90 MM, 0.62 IN
• Spring Color: Black
• Rear Spring Relaxed Length: 386.10 MM, 15.20 IN
• Rear Spring Compressed Length: 13.00 IN, 330.20 MM
• Rear Spring Outside Diameter: 6.310 IN
• ID - Inches: 5.05
• ID - MM: 128.30
• Bar Diameter - Inches: 0.62
• Bar Diameter - MM: 15.90
• Spring Rate - Lbs Per Inch: 161.00
• Load - Lbs: 340.50
• Installation Height - Inches: 13.00
• Installation Height - MM: 330.20
• Free Height - Inches: 15.20
• Free Height - MM: 386.10

Application

• 1992-1997 Ford Crown Victoria (Rear) (Qualifier: Variable Rate); 1990-1993 Lincoln Town Car (Rear) (Doors: 4 & Body: Sedan / Qualifier: Variable Rate); 1992-1997 Mercury Grand Marquis (Rear) (Qualifier: Variable Rate)
