MOOG 87-97 Ford F-350 Front Left Inner Tie Rod End - ES3009R

MOOG ES3009R Front Steering Tie Rod End for Ford F-350

Features

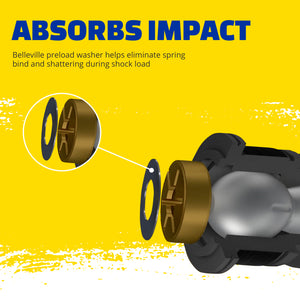

• ABSORBS IMPACT -- Belleville preload washer helps eliminate spring bind and shattering during shock load

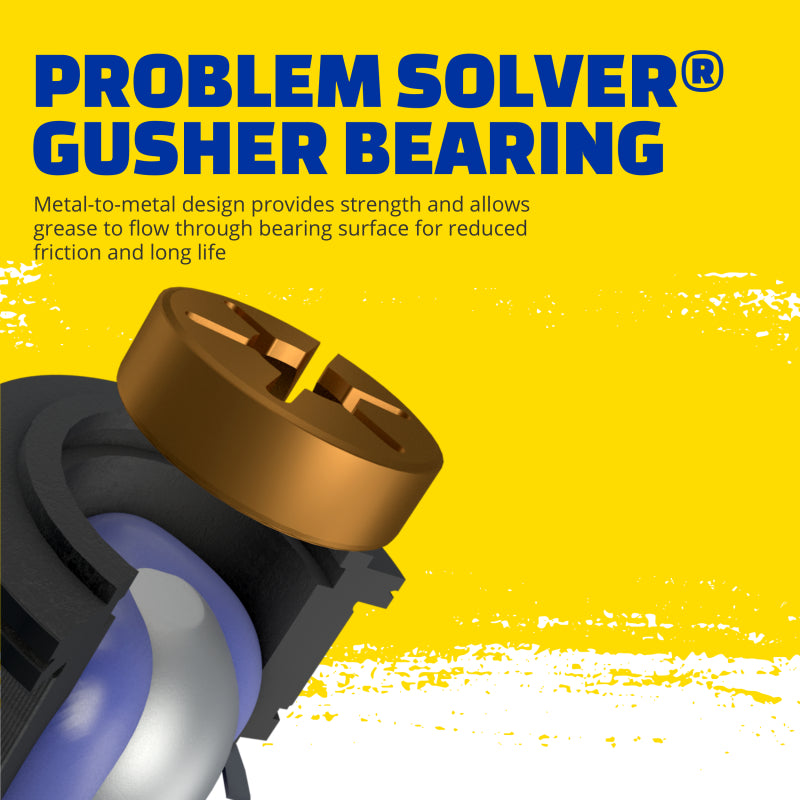

• PROBLEM SOLVER® GUSHER BEARING -- Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life

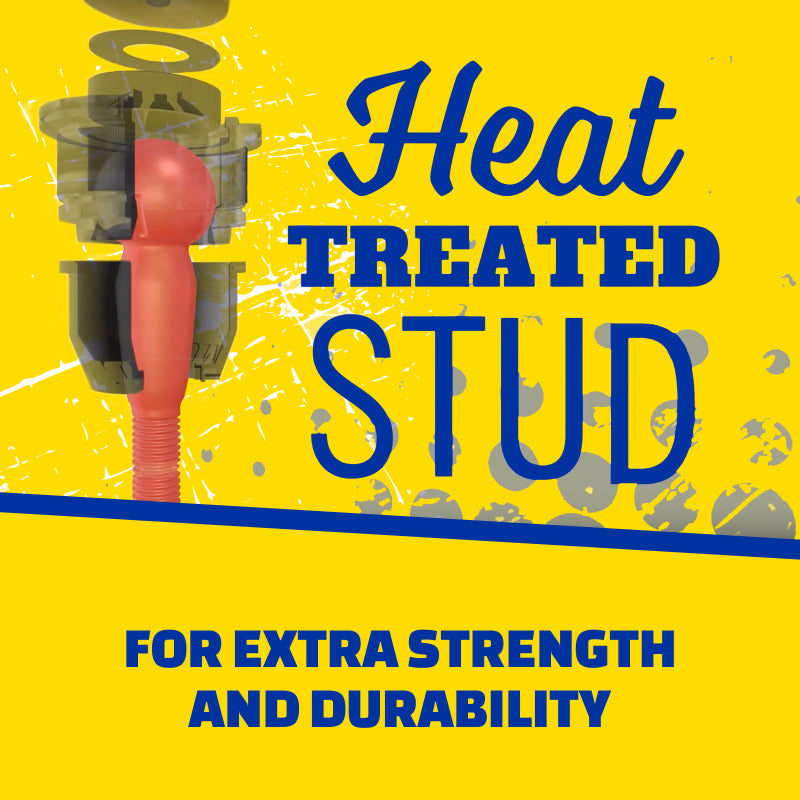

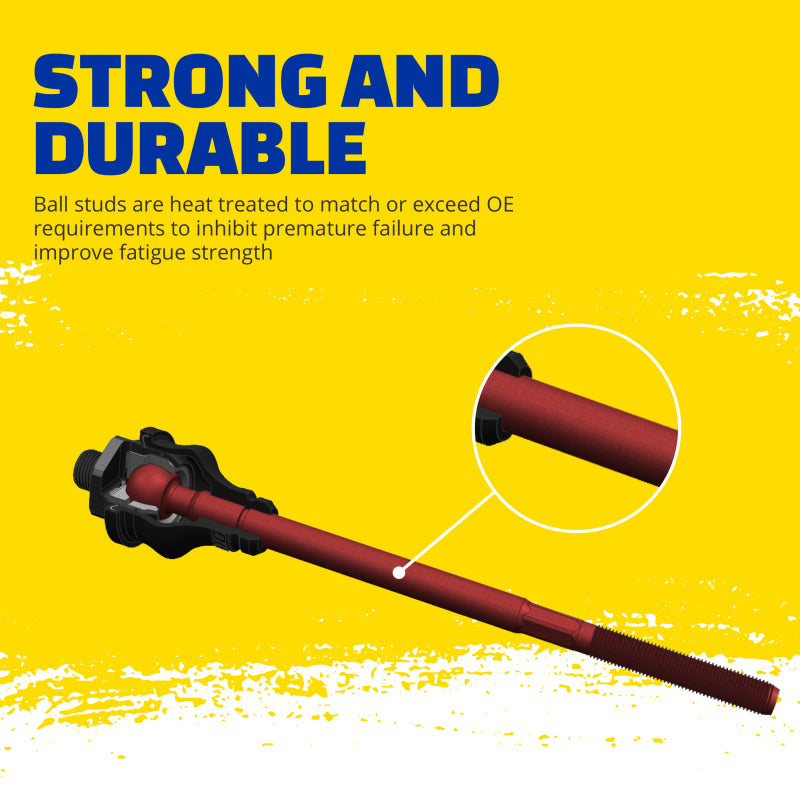

• STRONG AND DURABLE -- Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength

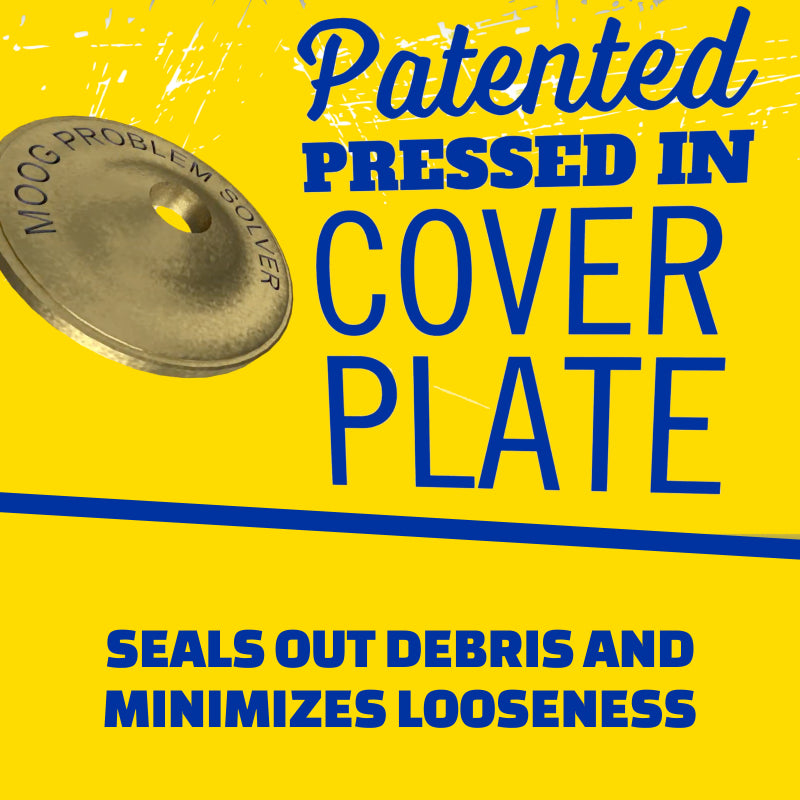

• RESTORES LIKE-NEW STEERING -- Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and promoting longer life
• GREASEABLE SOCKET -- Reduces corrosion and wear by allowing new lubricant to flush contaminants

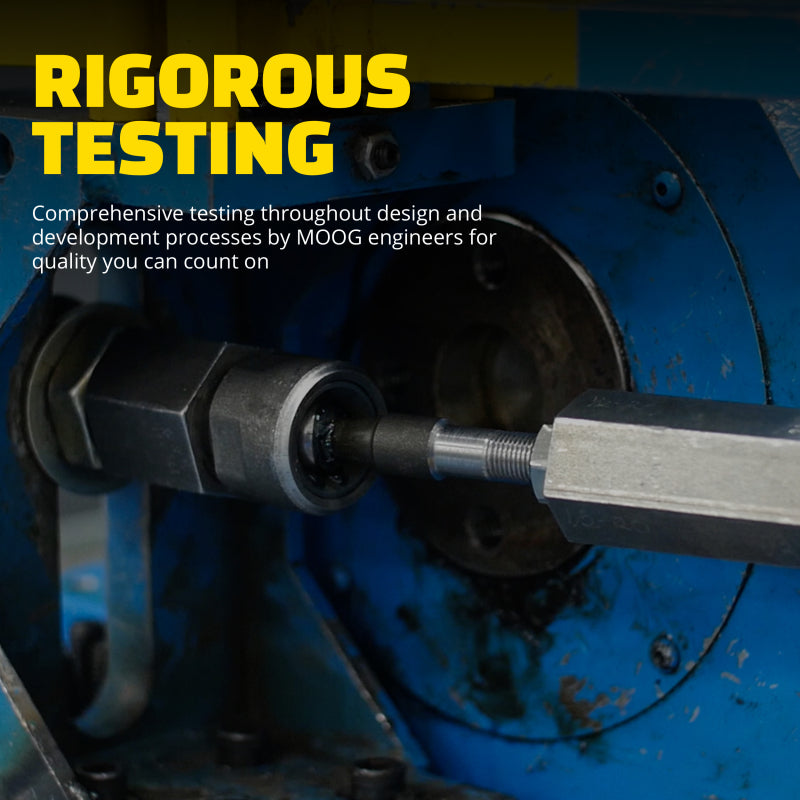

• RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
• COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates

Specifications

• End 1 Thread Diameter: 1.000 IN
• End 1 Gender: Male
• End 2 Gender: Male
• End 1 Thread Direction: Clockwise
• Length - Stud Center To End: 5.370 IN
• End 1 Threads Per Inch: 18

Application

• 1987-1997 Ford F-350 (Front Left Inner, Left Outer (Steering Arm To Steering Arm)) (Drive: 4WD / Qualifier: 2nd Design, 1 (in) - 18 Threads Replaces Entire First Design As An Assembly, Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces)
