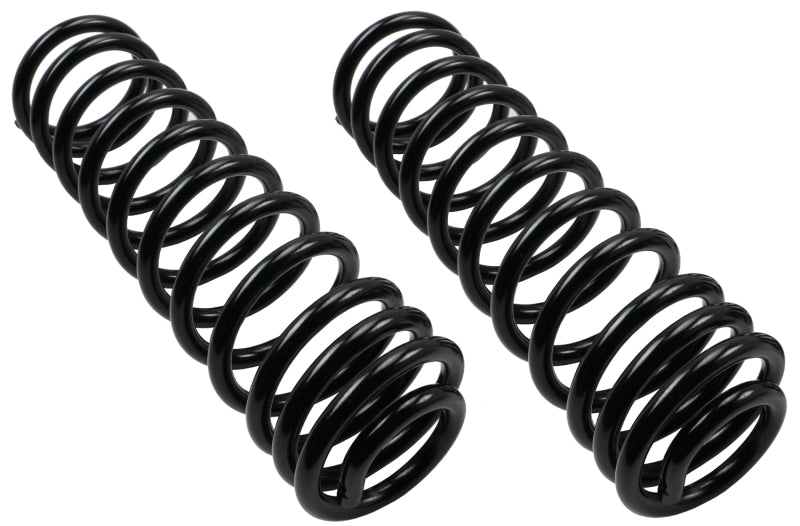

MOOG 84-96 Jeep Cherokee Front Coil Springs - CC782

MOOG CC782 Front Coil Spring Set for Jeep Cherokee

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Tangential
• End 2 Type: Pigtail
• Wire Diameter: 14.70 MM, 0.57 IN
• Spring Color: Black
• Front Spring Outside Diameter: 5.200 IN
• Front Spring Relaxed Length: 18.40 IN, 467.40 MM
• Front Spring Compressed Length: 15.00 IN, 381.00 MM
• ID - Inches: 4.04
• ID - MM: 102.60
• Bar Diameter - Inches: 0.57
• Bar Diameter - MM: 14.70
• Spring Rate - Lbs Per Inch: 146.00
• Load - Lbs: 503.00
• Installation Height - Inches: 15.00
• Installation Height - MM: 381.00
• Free Height - Inches: 18.40
• Free Height - MM: 467.40

Application

• 1984-1996 Jeep Cherokee Laredo Pioneer Base (Front) (Liter: 2.8, 2.5, 4.0 & Drive: RWD, 4WD / Qualifier: Heavy Duty, Variable Rate, with Soft Ride or Standard Suspension Option); 1986-1992 Jeep Comanche Pioneer Base (Front) (Liter: 2.5, 4.0 & Drive: 4WD / Qualifier: Variable Rate); 1993-1998 Jeep Grand Cherokee (Front) (Drive: 4WD / Qualifier: Variable Rate); 1984-1987 Jeep Wagoneer (Front) (Liter: 2.5, 2.8 / Qualifier: Heavy Duty, Variable Rate)
