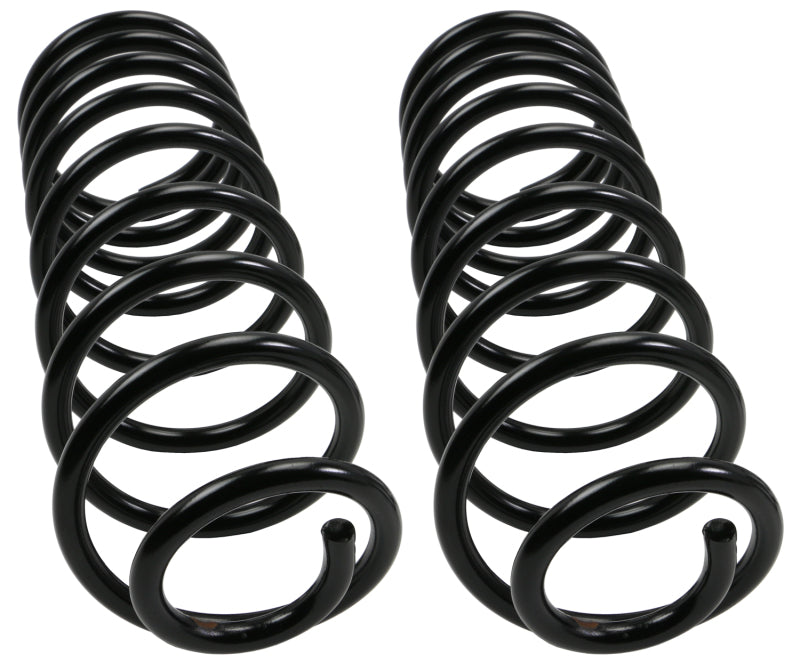

MOOG 82-02 Chevrolet Camaro RS Rear Coil Springs - CC635

MOOG CC635 Coil Spring Set for Chevrolet Camaro

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Tangential
• End 2 Type: Pigtail
• Wire Diameter: 12.70 MM, 0.50 IN
• Spring Color: Black
• Rear Spring Relaxed Length: 15.25 IN, 387.40 MM
• Rear Spring Compressed Length: 260.40 MM, 10.25 IN
• Rear Spring Outside Diameter: 5.300 IN
• ID - Inches: 4.30
• ID - MM: 109.20
• Bar Diameter - Inches: 0.50
• Bar Diameter - MM: 12.70
• Spring Rate - Lbs Per Inch: 104.00
• Load - Lbs: 518.00
• Installation Height - Inches: 10.25
• Installation Height - MM: 260.40
• Free Height - Inches: 15.25
• Free Height - MM: 387.40

Application

• 1982-2002 Chevrolet Camaro RS (Rear) (Liter: 5.0 / Qualifier: Variable Rate); 1982-2002 Pontiac Firebird Trans Am Base S/E Formula Trans Am GTA (Rear) (Liter: 2.8, 2.5, 5.0, 5.7, 3.1 / Qualifier: Variable Rate, without 16 (in) Wheels, with 16 (in) Wheels)
