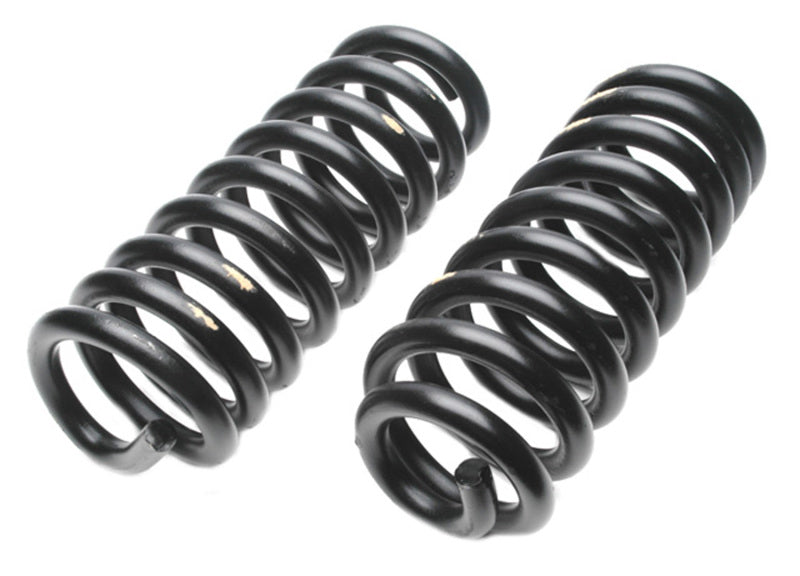

MOOG 80-96 Ford F-250 Front Coil Springs - CC844

MOOG CC844 Front Coil Spring Set for Ford F-250

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Pigtail
• End 2 Type: Pigtail
• Wire Diameter: 20.60 MM, 0.81 IN
• Spring Color: Black
• Front Spring Outside Diameter: 5.620 IN
• Front Spring Relaxed Length: 391.20 MM, 15.40 IN
• Front Spring Compressed Length: 323.90 MM, 12.75 IN
• ID - Inches: 4.00
• ID - MM: 101.60
• Bar Diameter - Inches: 0.81
• Bar Diameter - MM: 20.60
• Spring Rate - Lbs Per Inch: 630.00
• Load - Lbs: 1557.00
• Installation Height - Inches: 12.75
• Installation Height - MM: 323.90
• Free Height - Inches: 15.40
• Free Height - MM: 391.20

Application

• 1980-1996 Ford F-250 (Front) (Doors: 2 & Body: Cab & Chassis, Standard Cab Pickup, Extended Cab Pickup & Liter: 5.8, 4.9, 6.6, 7.5, 7.3 & Engine Version: Modified, Windsor & Wheel Base: 155.0, 138.8, 160.5, 133.0, 137.0 / Qualifier: Heavy Duty, with Air Conditioning, without California Emissions System, Variable Rate, Except Severe Duty, Over 8,600 (lb) Gross Vehicle Weight (GVW), Under 8,600 (lb) Gross Vehicle Weight (GVW), with 8,600 (lb) Gross Vehicle Weight (GVW), with 8,800 (lb) Gross Vehicle Weight (GVW)); 1980-1996 Ford F-350 (Front) (Doors: 2, 4 & Body: Cab & Chassis, Standard Cab Pickup, Extended Cab Pickup, Crew Cab Pickup & Liter: 4.9, 6.6, 5.8, 6.9, 7.5, 7.3 & Engine Version: Modified & Wheel Base: 160.8, 133.0, 137.0 / Qualifier: Heavy Duty, with Air Conditioning, Variable Rate, Except Severe Duty, without California Emissions System)
