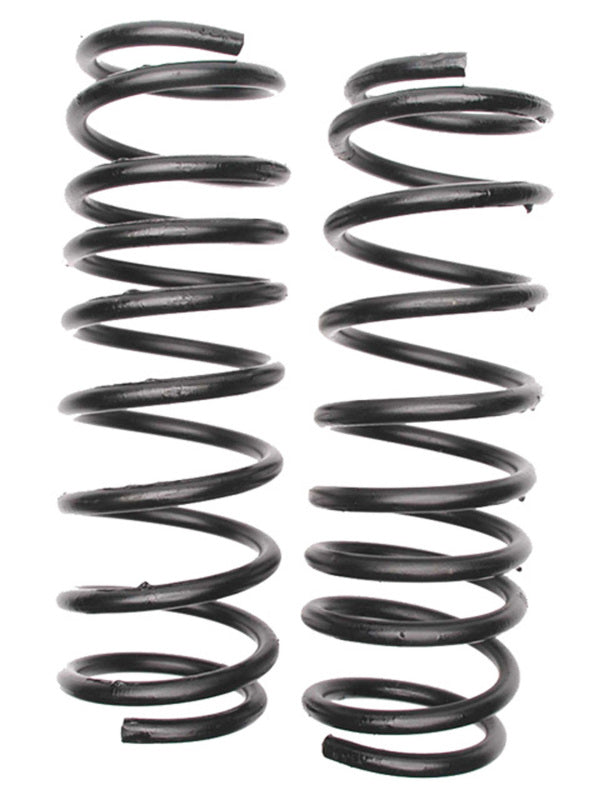

MOOG 2007 Buick Terraza Rear Coil Springs - CC695

MOOG CC695 Coil Spring Set for Chevrolet Uplander

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Pigtail
• End 2 Type: Pigtail
• Wire Diameter: 0.53 IN, 13.50 MM
• Spring Color: Black
• Rear Spring Relaxed Length: 14.88 IN, 378.00 MM
• Rear Spring Compressed Length: 10.00 IN, 254.00 MM
• Rear Spring Outside Diameter: 5.060 IN
• ID - Inches: 4.00
• ID - MM: 101.60
• Bar Diameter - Inches: 0.53
• Bar Diameter - MM: 13.50
• Spring Rate - Lbs Per Inch: 148.00
• Load - Lbs: 729.00
• Installation Height - Inches: 10.00
• Installation Height - MM: 254.00
• Free Height - Inches: 14.88
• Free Height - MM: 378.00

Application

• 2007 Buick Terraza (Rear) (Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate); 2005-2008 Chevrolet Uplander (Rear) (Doors: 4 & Body: Mini Passenger Van & Liter: 3.5 & Drive: FWD / Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate); 1997-2005 Chevrolet Venture (Rear) (Wheel Base: 120.0 & Drive: FWD / Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate); 1997-2004 Oldsmobile Silhouette (Rear) (Wheel Base: 120.0 & Drive: FWD / Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate); 1999-2009 Pontiac Montana SV6 Base (Rear) (Wheel Base: 120.0 & Drive: FWD / Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate); 1997-1999 Pontiac Trans Sport (Rear) (Wheel Base: 120.0 / Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate); 2005-2007 Saturn Relay (Rear) (Liter: 3.5 & Drive: FWD / Qualifier: For 1-1/2 (in) To 2 (in) Lift Due To Heavy Rear Loading, Variable Rate)
