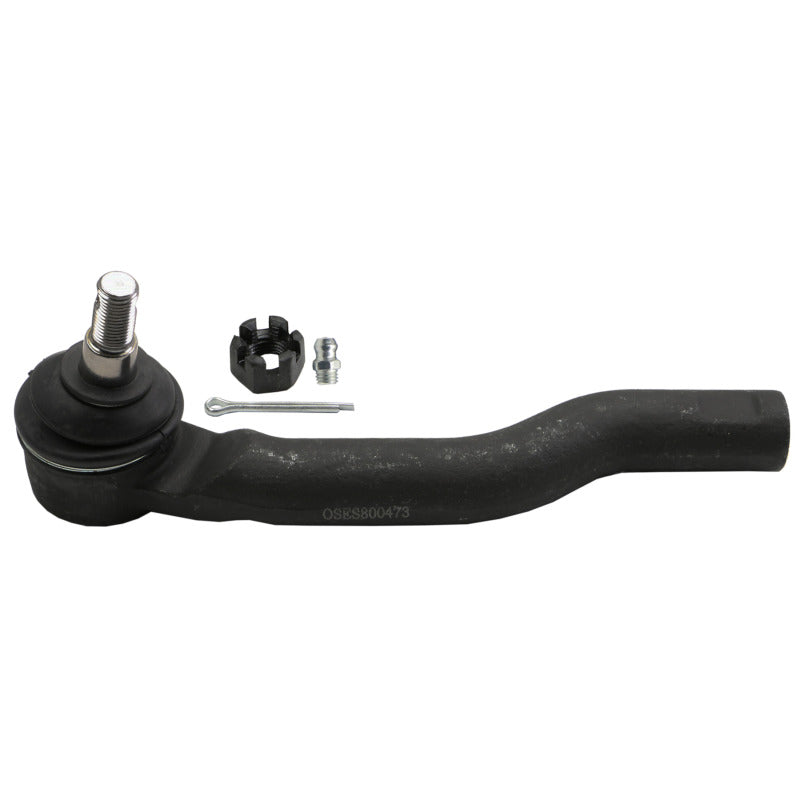

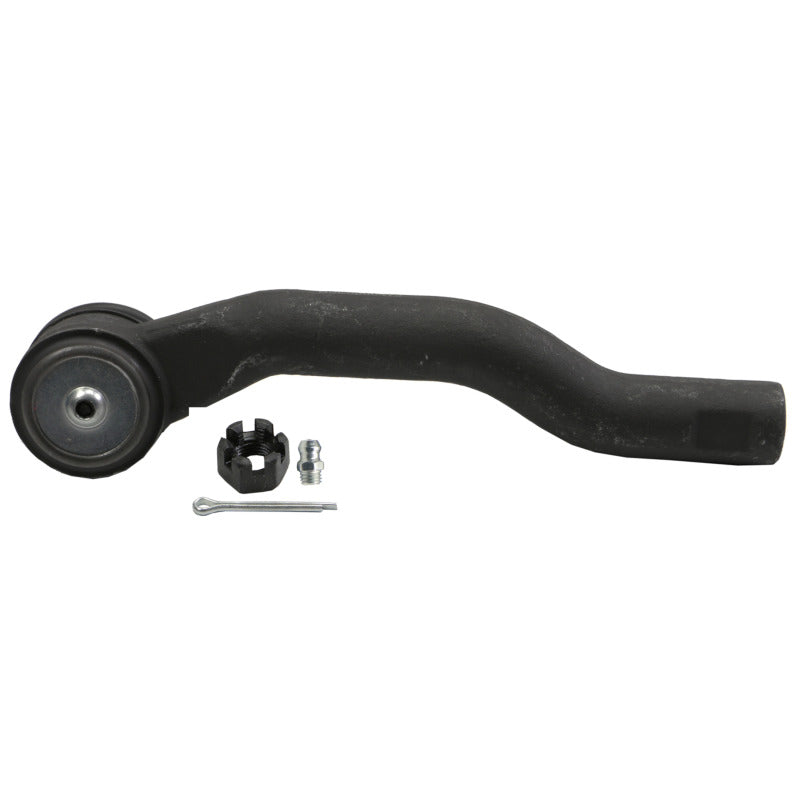

MOOG 07-14 Ford Edge Front Right Outer / Right Outer Tie Rod End - ES800473

MOOG ES800473 Front Right Outer Steering Tie Rod End for Ford Edge

Features

• RESTORES LIKE-NEW STEERING -- Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and promoting longer life
• GREASEABLE SOCKET -- Reduces corrosion and wear by allowing new lubricant to flush contaminants
• ABSORBS IMPACT -- Belleville preload washer helps keep the bearing package tight as bearings wear
• PROBLEM SOLVER® GUSHER BEARING -- Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life
• STRONG AND DURABLE -- Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength
• COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
• RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Specifications

• Type: Bent
• End 1 Thread Diameter: 16.0 MM
• End 1 Gender: Female
• End 2 Gender: Female
• Dust Boot Included: Yes
• End 2 Thread Diameter: 12.0 MM
• Greaseable: Yes
• End 1 Thread Direction: Clockwise
• End 2 Thread Pitch: 1.25 MM
• End 1 Thread Pitch: 1.5 MM
• Length - Stud Center To End: 8.100 IN

Application

• 2007-2014 Ford Edge (Front Right Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces, Thru 12/24/14); 2007-2015 Lincoln MKX (Front Right Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces)
