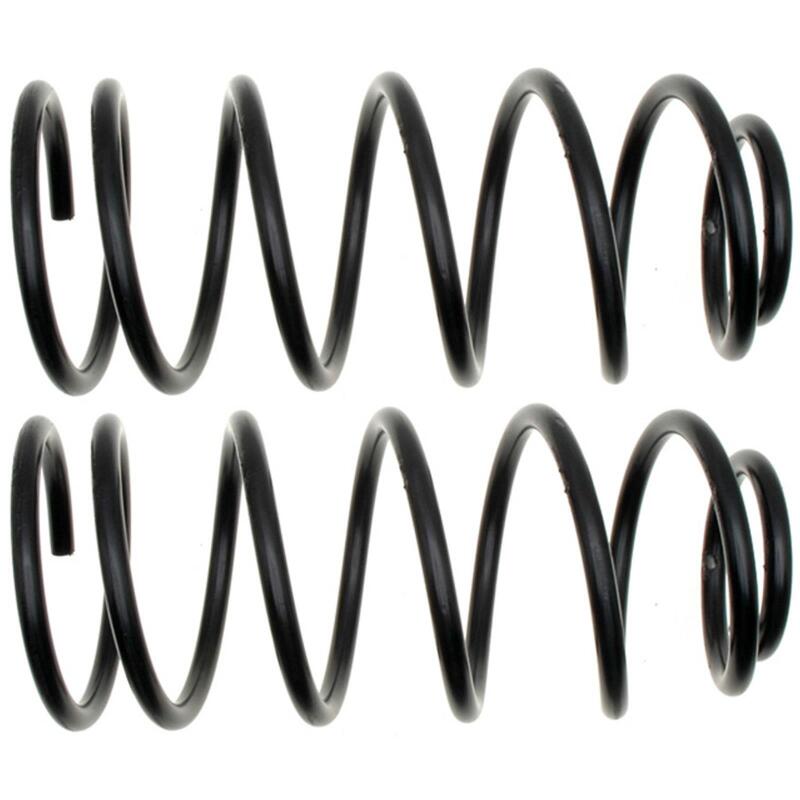

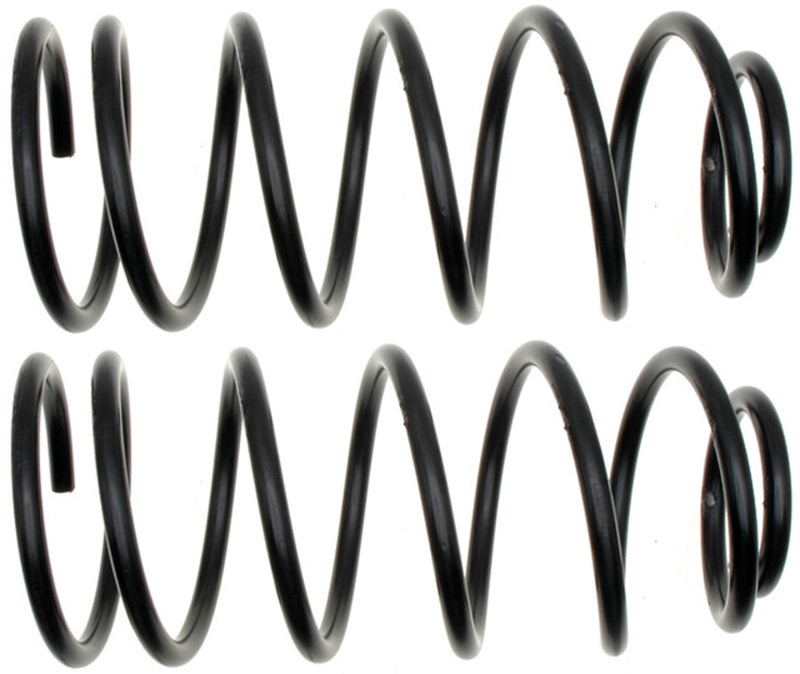

MOOG 05-09 Buick LaCrosse Rear Coil Springs - CC81035

MOOG CC81035 Coil Spring Set for Chevrolet Impala

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Pigtail
• End 2 Type: Tangential
• Wire Diameter: 14.30 MM, 0.56 IN
• Spring Color: Black
• Rear Spring Relaxed Length: 15.42 IN, 391.70 MM
• Rear Spring Compressed Length: 241.30 MM, 9.50 IN
• Rear Spring Outside Diameter: 6.520 IN
• ID - Inches: 5.40
• ID - MM: 137.20
• Bar Diameter - Inches: 0.56
• Bar Diameter - MM: 14.30
• Spring Rate - Lbs Per Inch: 125.00
• Load - Lbs: 740.00
• Installation Height - Inches: 9.50
• Installation Height - MM: 241.30
• Free Height - Inches: 15.42
• Free Height - MM: 391.70

Application

• 2005-2009 Buick LaCrosse (Rear) (Qualifier: with 16 (in) Wheels, Variable Rate); 2005-2009 Buick Allure (Rear) (Qualifier: with 16 (in) Wheels, Variable Rate); 2014-2016 Chevrolet Impala Limited LS LT LTZ (Rear) (Qualifier: without Police/Taxi Packages, Variable Rate); 2004-2013 Chevrolet Impala (Rear) (Qualifier: without Police/Taxi Packages, Variable Rate)
