MOOG 00-04 Ford Focus Rear Coil Springs - CC881

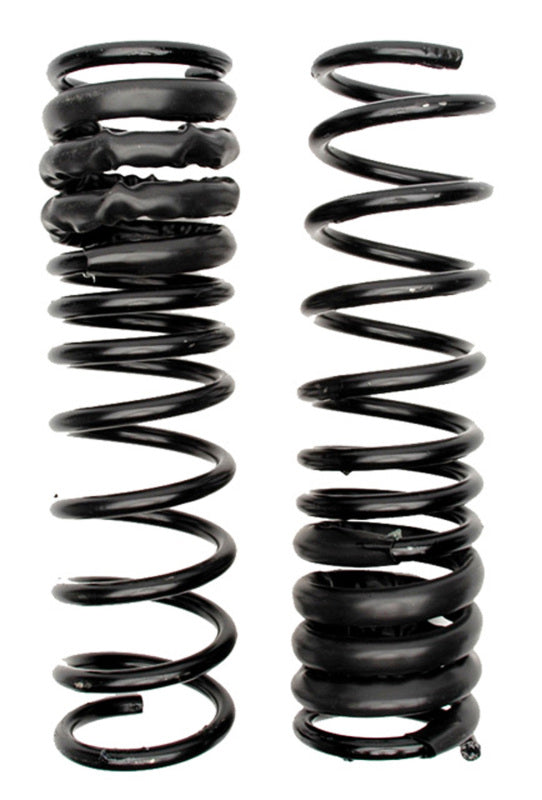

MOOG CC881 Coil Spring Set for Ford Focus

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Tangential
• End 2 Type: Tangential
• Wire Diameter: 13.10 MM, 0.51 IN
• Spring Color: Black
• Rear Spring Relaxed Length: 15.77 IN, 400.60 MM
• Rear Spring Compressed Length: 12.00 IN, 304.80 MM
• Rear Spring Outside Diameter: 4.390 IN
• ID - Inches: 3.34
• ID - MM: 85.00
• Bar Diameter - Inches: 0.51
• Bar Diameter - MM: 13.10
• Spring Rate - Lbs Per Inch: 166.00
• Load - Lbs: 625.00
• Installation Height - Inches: 12.00
• Installation Height - MM: 304.80
• Free Height - Inches: 15.77
• Free Height - MM: 400.60

Application

• 2000-2004 Ford Focus (Rear) (Doors: 4 & Body: Wagon & Transmission Base Type: Transaxle & Transmission Control Type: Automatic / Qualifier: Variable Rate)
