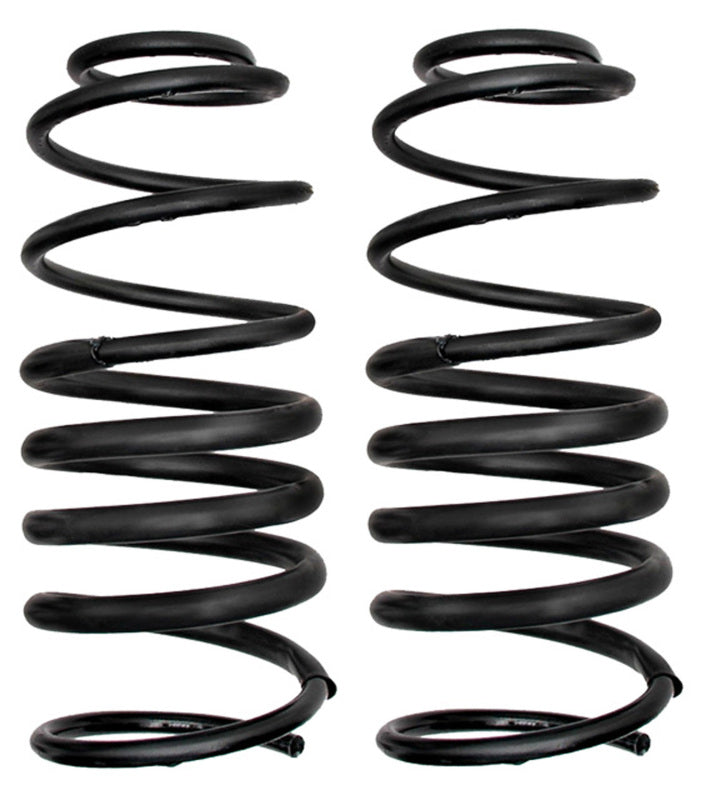

MOOG 00-03 Chevrolet Impala Base Rear Coil Springs - CC697

MOOG CC697 Coil Spring Set for Pontiac Grand Prix

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Pigtail
• End 2 Type: Tangential
• Wire Diameter: 14.30 MM, 0.56 IN
• Spring Color: Black
• Rear Spring Relaxed Length: 401.60 MM, 15.81 IN
• Rear Spring Compressed Length: 9.00 IN, 228.60 MM
• Rear Spring Outside Diameter: 6.540 IN
• ID - Inches: 5.42
• ID - MM: 137.70
• Bar Diameter - Inches: 0.56
• Bar Diameter - MM: 14.30
• Spring Rate - Lbs Per Inch: 122.00
• Load - Lbs: 680.00
• Installation Height - Inches: 9.00
• Installation Height - MM: 228.60
• Free Height - Inches: 15.81
• Free Height - MM: 401.60

Application

• 2000-2003 Chevrolet Impala Base (Rear) (Liter: 3.4, 3.8 / Qualifier: Variable Rate); 2006-2007 Chevrolet Monte Carlo (Rear) (Qualifier: Variable Rate); 1998-2002 Oldsmobile Intrigue (Rear) (Qualifier: Variable Rate); 2004-2008 Pontiac Grand Prix (Rear) (Qualifier: Variable Rate)
