Request this part Text us (833) 691-5717Mishimoto · Part # MISMMCLAMP-CTWG-66
Email me when it's back
Leave your email and we'll let you know as soon as it can be ordered again.

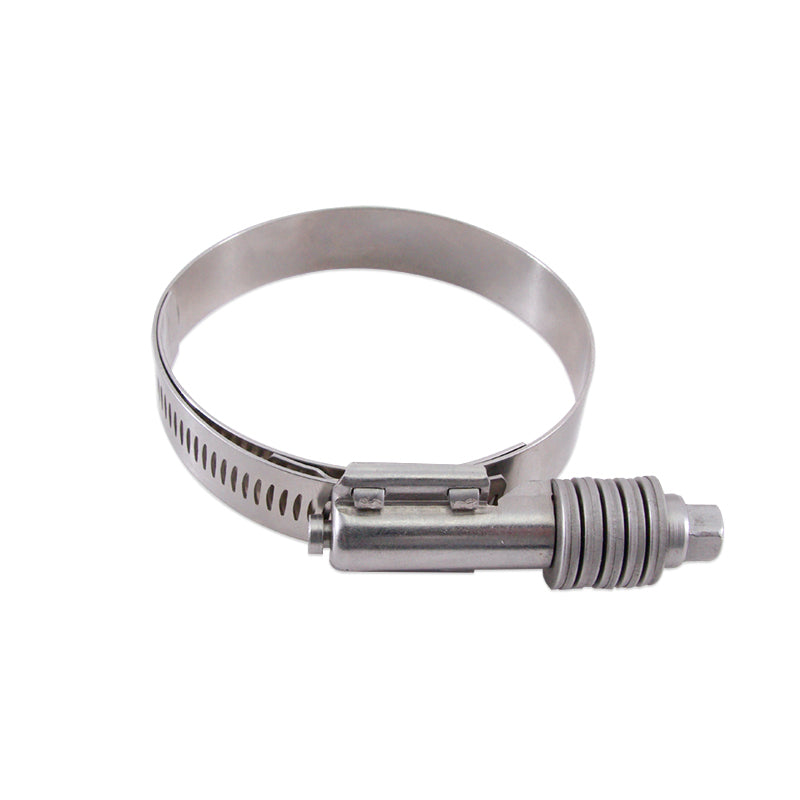

Just like Mishimoto's high-torque worm gear clamps, Mishimoto's Constant Tension Worm Gear Clamps are an effective solution to a wide range of clamping needs. Where this 1.77" - 2.60" (45mm - 66mm) constant tension worm gear clamp excels, however, is in high-temperature applications. The spring on the adjustment bolt allows the clamp to exert continuous pressure through a wide range of temperatures to ensure your parts stay clamped as strong as the day you installed them.
This 1.77" - 2.60" (45mm - 66mm) constant tension worm gear clamp is made from stainless steel to weather any environment and ensure a tight seal for years to come. Mishimoto's constant tension worm gear clamps are also available in a wide variety of other sizes to suit everything from coolant lines to intake pipes. Like all Mishimoto products, this 1.77" - 2.60" (45mm - 66mm) constant tension worm gear clamp is backed by the Mishimoto Lifetime Warranty.
Securely clamps pipes, couplers, and hoses with an outer diameter from 1.77- 2.60-in (45mm-66mm).
Constant tension spring maintains clamping pressure through a wide range of temperatures.
Worm gear design for quick and easy tightening.
| Maximum clamp diameter (in) | 2.6 |
|---|---|
| Includes | (1) Mishimoto Constant Tension Worm Gear Clamp |
| Recommended tightening torque | 14 lb-ft (20 NM) |
| Band width (in) | 0.62 |
| SAE number | 262 |
| Colour | Silver |
| Finish | Plain |
| Grade type | Premium |
| Maximum diameter | 2.6 in |
| Minimum diameter | 1.77 in |
| Recommended torque | 168 in-lbs |
| Reusable | Yes |
| SAE size | 42 |
| SAE type | F |
| Part number | MMCLAMP-CTWG-66 |
