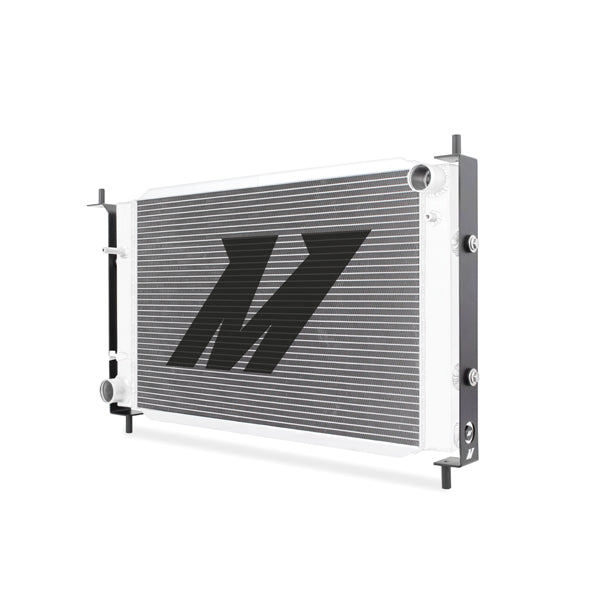

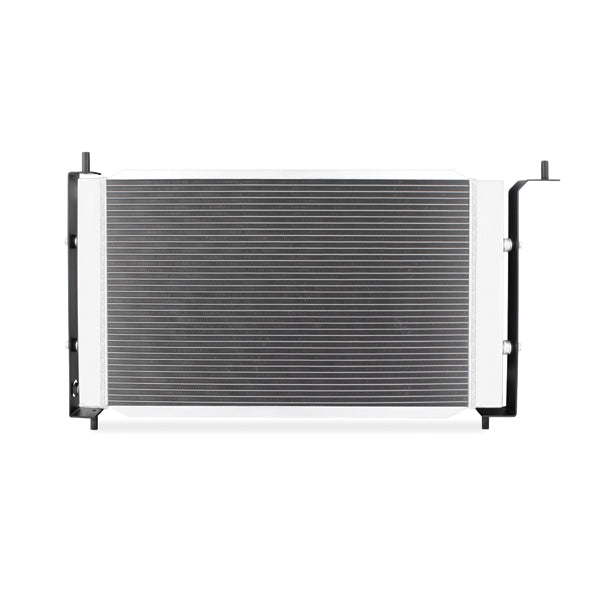

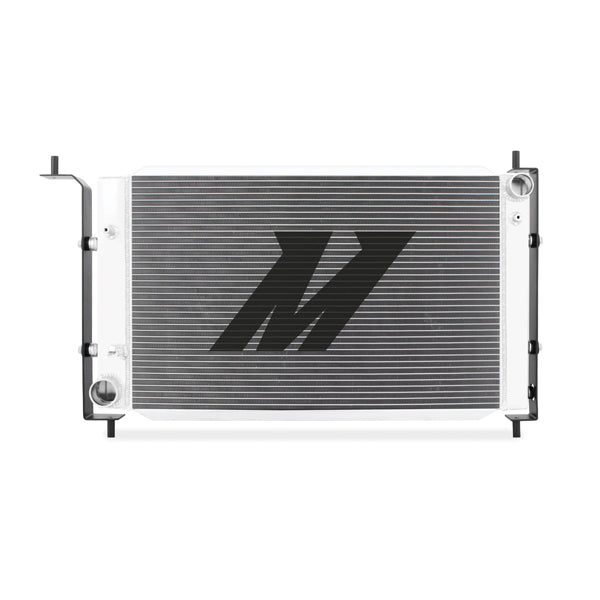

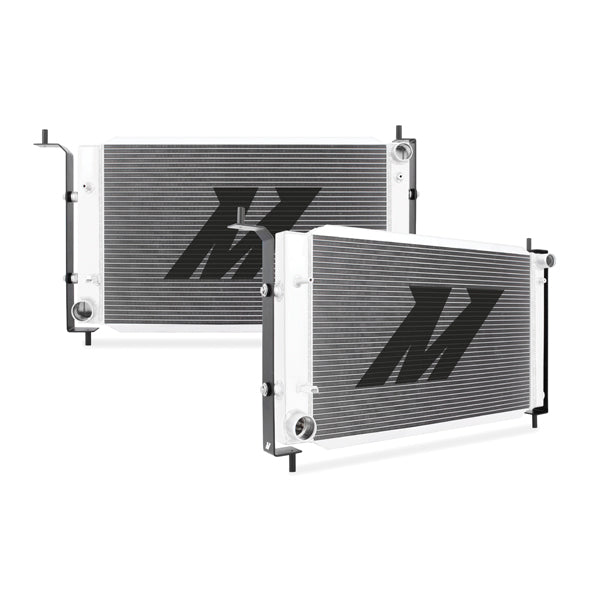

Mishimoto has released a revolutionary new radiator for the 1996 Ford Mustang. The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores. Utilizing a patent-pending floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.
The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.
Full aluminum construction including durable, TIG-welded end tanks.
Features a two-row, 1.57-in thick, efficient brazed aluminum core.
Perfect for use on the street or strip.
| Core finish | Uncoated |
|---|---|
| Core height | 15.28 in |
| Core length | 24.02 in |
| Core row quantity | 2 |
| Down flow or cross flow type | Cross Flow |
| Drain plug included | Yes |
| Drain plug thread size | M12 - 1.5 |
| Fluid capacity | 3.97 gal |
| Inlet diameter | 1.5 in |
| Outlet location | Bottom Left |
| Overall height | 34.8 in |
| Overall length | 19.2 in |
| Overall width | 4.2 in |
| Outlet diameter | 1.77 in |
| Inlet location | Top Right |
| Fluid capacity (gal) | 4 gal |
| Rows | 2 |
| Inlet (in) | 1.5 |
| Outlet (in) | 1.77 |
| DPI | 1775 |
| Engine codes | 289ci (4.6L) |
| Chassis codes | SN-95 |
| Includes | Mishimoto Radiator; Magnetic Drain Plug w/ Dowty Oil Seal; Left & Right Brackets; (4) - Rubber Bushings & Metal Collars; (4) - M8 Flange Head Bolts; (4) - M8 Washers |
| Part number | MMRAD-MUS-96B |
