1994-2002 Dodge Ram 2500 5.9 Liter 46RE, 1994-1996 Dodge Ram 2500 5.9 Liter 46RH, 1994 Dodge Ram 2500 5.9 Liter 47RE, 1996-2002 Dodge Ram 2500 5.9 Liter 47RE, 1994-1995 Dodge Ram 2500 5.9 Liter 47RH, 1994-2002 Dodge Ram 2500 5.9 Liter NV4500, 1994-2002 Dodge Ram 2500 5.9 Liter NV4500HD, 1998-2002 Dodge Ram 2500 5.9 Liter NV5600, 1994 Dodge Ram 3500 5.9 Liter 46RE, 1996-2002 Dodge Ram 3500 5.9 Liter 46RE, 1995 Dodge Ram 3500 5.9 Liter 46RH, 1994 Dodge Ram 3500 5.9 Liter 47RE, 1996-2002 Dodge Ram 3500 5.9 Liter 47RE, 1995 Dodge Ram 3500 5.9 Liter 47RH, 1994-2001 Dodge Ram 3500 5.9 Liter NV3500, 1994-2002 Dodge Ram 3500 5.9 Liter NV4500, 1997-2001 Dodge Ram 3500 5.9 Liter NV4500HD, 1998-2002 Dodge Ram 3500 5.9 Liter NV5600
Features and Benefits

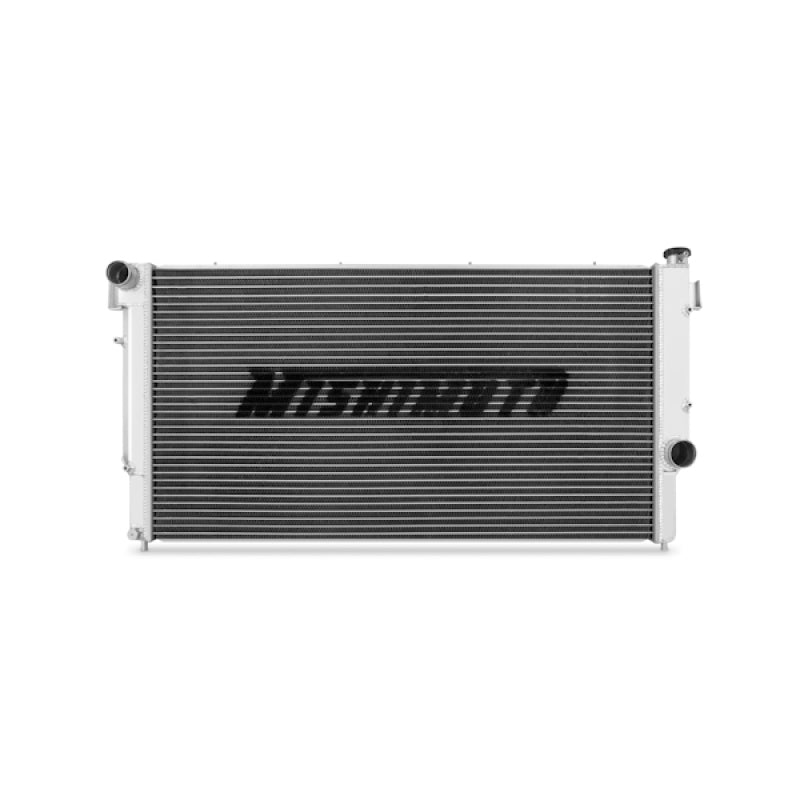

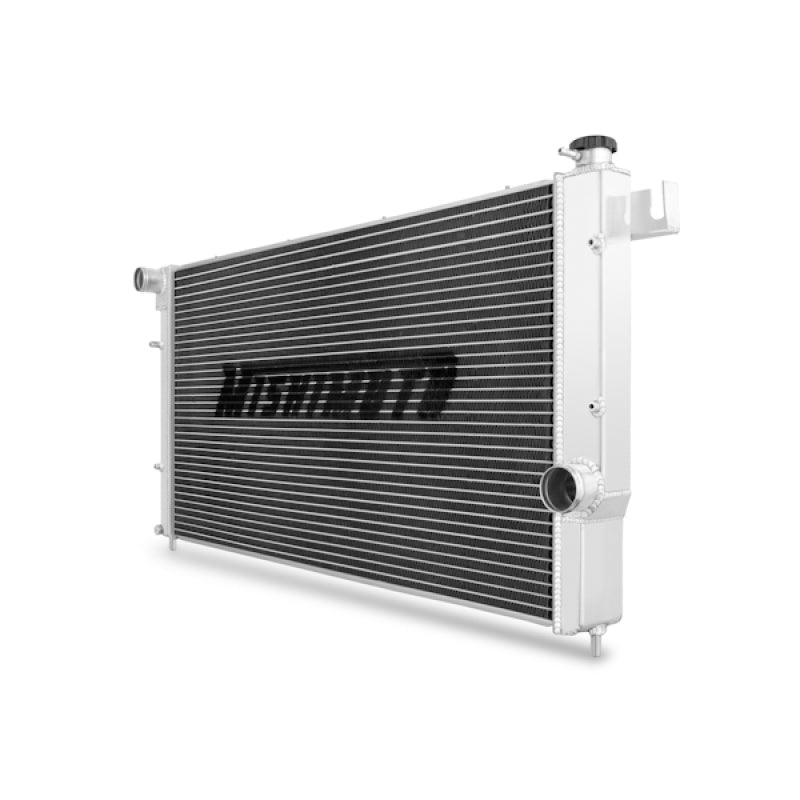

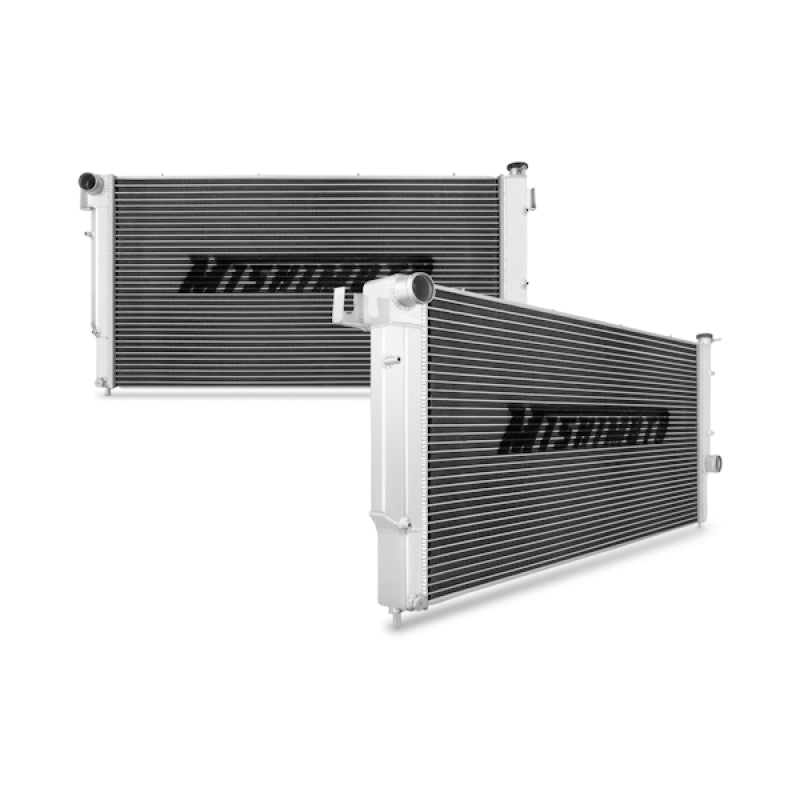

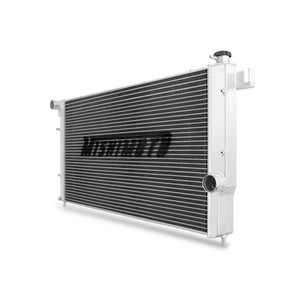

- Full aluminum construction including durable, TIG-welded end tanks

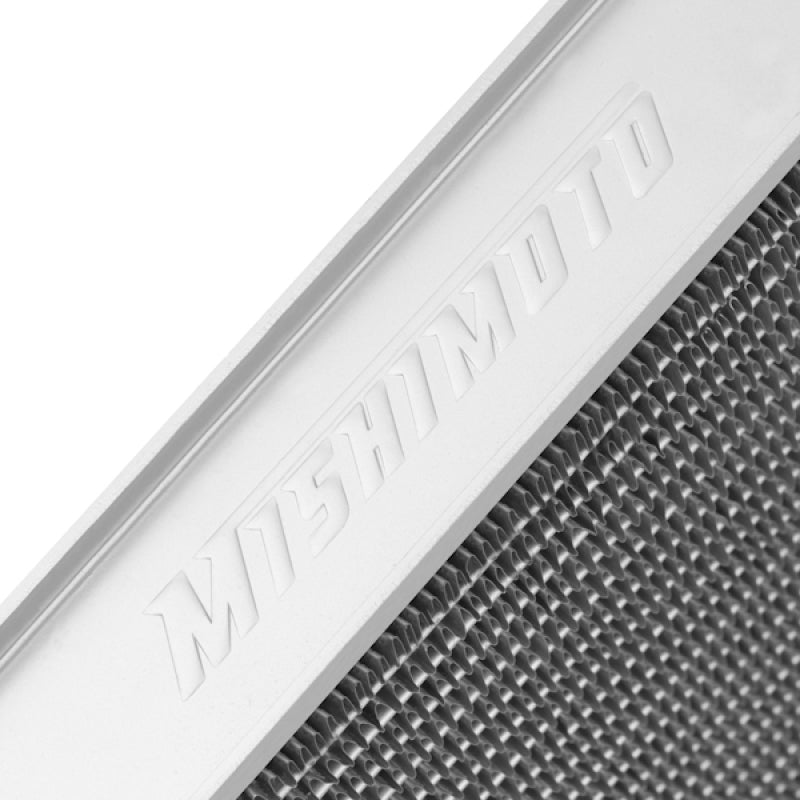

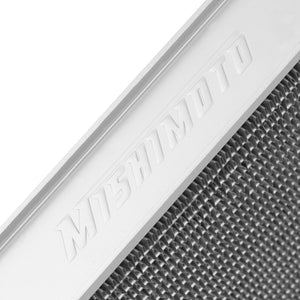

- Features a three-row, 2.44-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
Specifications
-
Rows: 3
-
Inlet (in): 1.77
-
Outlet (in): 1.97
-
Drain Plug Thread Size: M12 x 1.5
-
DPI: 1553
-

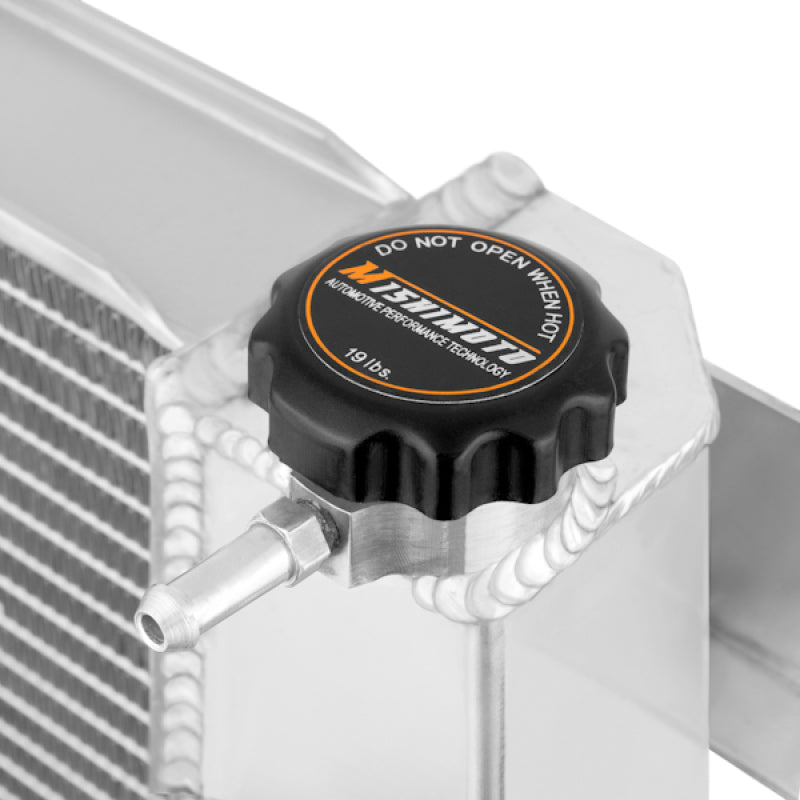

Includes: Mishimoto Radiator; Mishimoto Radiator Cap; Magnetic Drain Plug; (4) M6 x 1.0 Fan Shroud Bolts
-
Core Finish: Uncoated
-
Core Height: 19.21 in
-
Core Length: 36.42 in
-
Core Row Quantity: 3
-
Down Flow Or Cross Flow Type: Cross Flow
-
Drain Plug Included: Yes
-
Fluid Capacity: 6.78 gal
-
Inlet Diameter: 1.77 in
-
Inlet Location: Top Left
-
Outlet Diameter: 1.97 in
-
Outlet Location: Bottom Right
-
Overall Height: 21.9 in
-
Overall Length: 45.4 in
-
Overall Width: 4.8 in
-
Radiator Cap Included: Yes
-
Fluid Capacity (gal): 6.8 gal
