1967-1969 Chevrolet Camaro Base 6.5 Liter Muncie, 1967-1969 Chevrolet Camaro Base 6.5 Liter Powerglide, 1967-1969 Chevrolet Camaro Base 6.5 Liter Saginaw, 1967-1969 Chevrolet Camaro Base 6.5 Liter SM326, 1969 Chevrolet Camaro Base 6.5 Liter SM330, 1967-1968 Chevrolet Camaro Base 6.5 Liter T16, 1969 Chevrolet Camaro Base 6.5 Liter THM350, 1967 Pontiac Firebird Base 5.3 Liter 160T, 1967 Pontiac Firebird Base 5.3 Liter Muncie, 1967 Pontiac Firebird Base 5.3 Liter Saginaw, 1967 Pontiac Firebird Base 5.3 Liter SM326, 1967 Pontiac Firebird Base 5.3 Liter Super Turbine 300, 1967 Pontiac Firebird Base 5.3 Liter T16, 1968-1969 Pontiac Firebird Base 5.7 Liter 160T, 1968-1969 Pontiac Firebird Base 5.7 Liter Muncie, 1968-1969 Pontiac Firebird Base 5.7 Liter Saginaw, 1968-1969 Pontiac Firebird Base 5.7 Liter SM326, 1968-1969 Pontiac Firebird Base 5.7 Liter Super Turbine 300, 1969 Pontiac Firebird Base 5.7 Liter THM350, 1969 Pontiac Firebird Base 5.7 Liter THM350C, 1969 Pontiac Firebird Base 5.7 Liter THM400, 1967-1969 Pontiac Firebird Base 6.6 Liter 160T, 1967-1969 Pontiac Firebird Base 6.6 Liter Muncie, 1967-1969 Pontiac Firebird Base 6.6 Liter Saginaw, 1967-1969 Pontiac Firebird Base 6.6 Liter SM326, 1967-1969 Pontiac Firebird Base 6.6 Liter Super Turbine 300, 1967 Pontiac Firebird Base 6.6 Liter T16, 1969 Pontiac Firebird Base 6.6 Liter THM350, 1969 Pontiac Firebird Base 6.6 Liter THM350C, 1969 Pontiac Firebird Base 6.6 Liter THM400

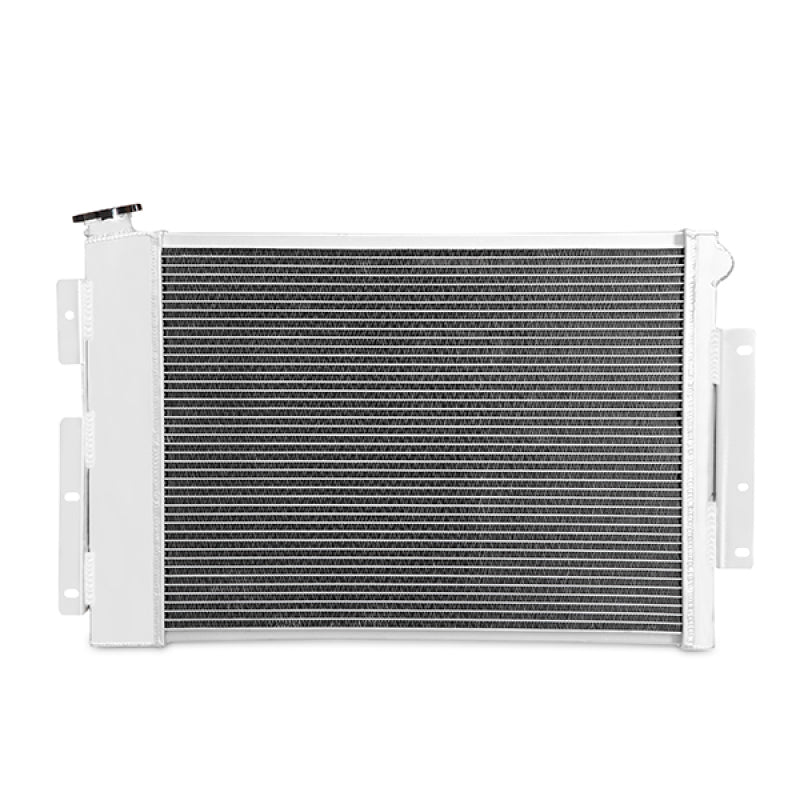

Features and Benefits
- All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
- 3-row core
- Billet aluminum fill neck
Specifications
-
Overall Height (in): 30.2
-
Overall Length (in): 19.3
-
Overall Width (in): 5
-
Core Length (in): 22.8
-
Core Height (in): 16.9
-
Fluid Capacity (gal): 6.2 gal
-
Rows: 3
-
Inlet (in): 1.5
-
Outlet (in): 1.75
-
Core Thickness (in): 2.5
-
Drain Plug Thread Size: 1/4-18 NPT
-
DPI: 370
-

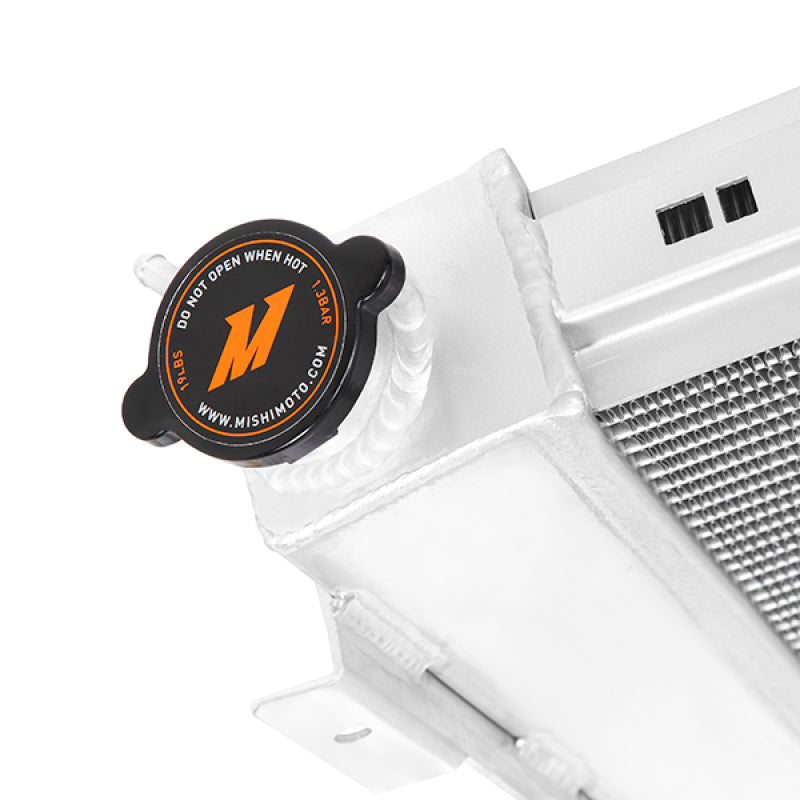

Includes: Mishimoto Radiator; Mishimoto Radiator Cap; Magnetic Drain Plug
-
Engine Codes: 326ci (5.3L) V8; 350ci (5.7L) V8; 400ci (6.6L) V8
-
Core Finish: Uncoated
-
Core Row Quantity: 3
-
Down Flow Or Cross Flow Type: Cross Flow
-
Drain Plug Included: Yes
-
Fluid Capacity: 6.51 gal
-
Inlet Diameter: 1.5 in
-
Inlet Location: Top Left
-
Outlet Diameter: 1.75 in
-
Outlet Location: Bottom Right
-
Transmission Oil Cooler Included: Yes
-
Radiator Cap Included: Yes
