It's no secret now that while the 2017+ Civic Type R is designed to attack the track, it can't always stand up to the heat. Nothing is quite as frustrating as having to cut your track time short, or pull off to the shoulder on a canyon carve due to simmering coolant. Luckily, Mishimoto is here to give the FK8's cooling system the backup it needs with its 2017+ Honda Civic Type R Secondary Race Radiator kit.

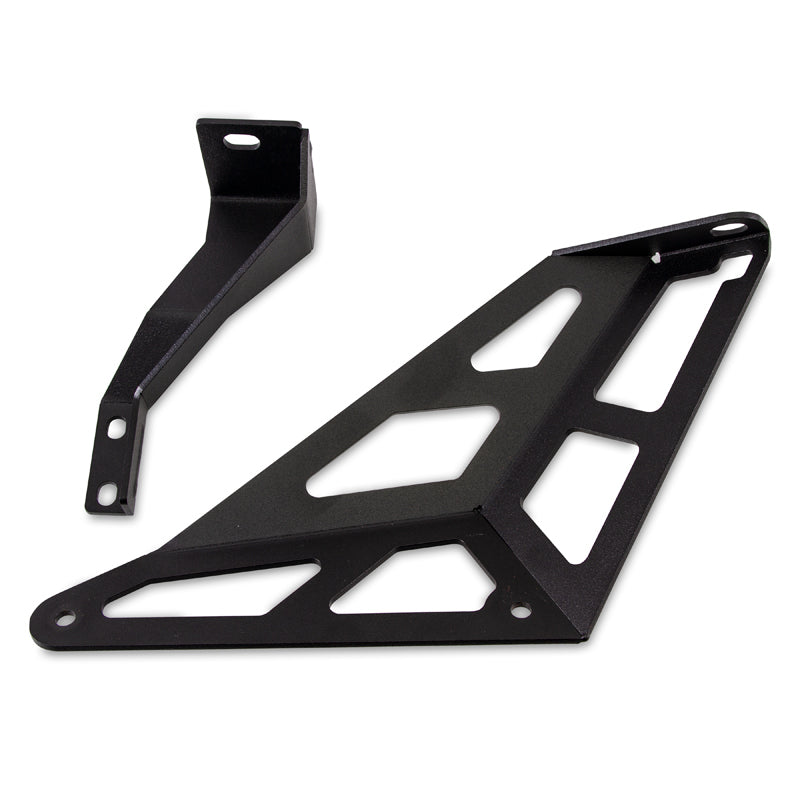

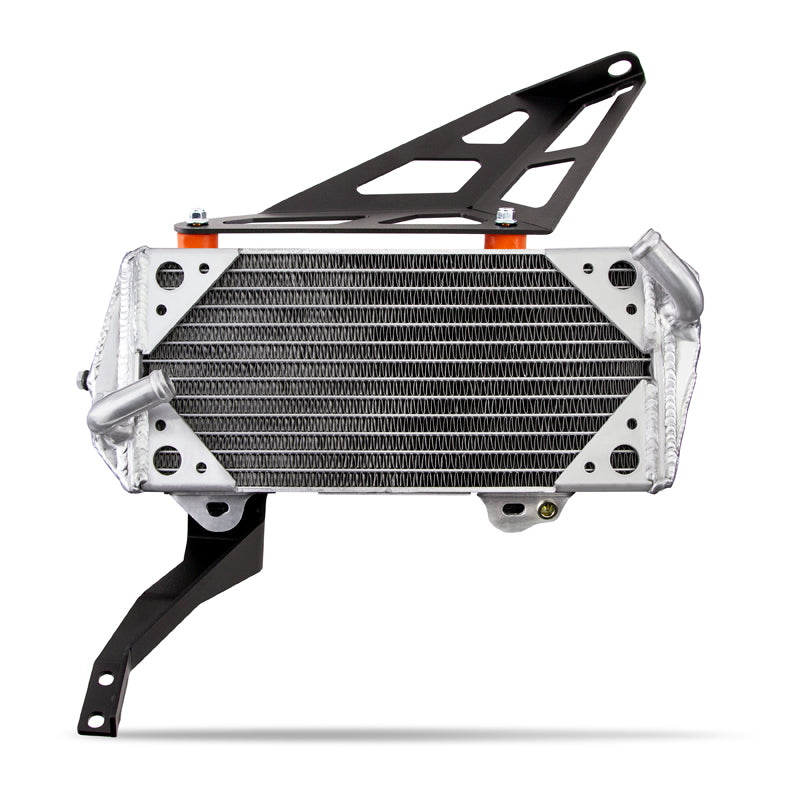

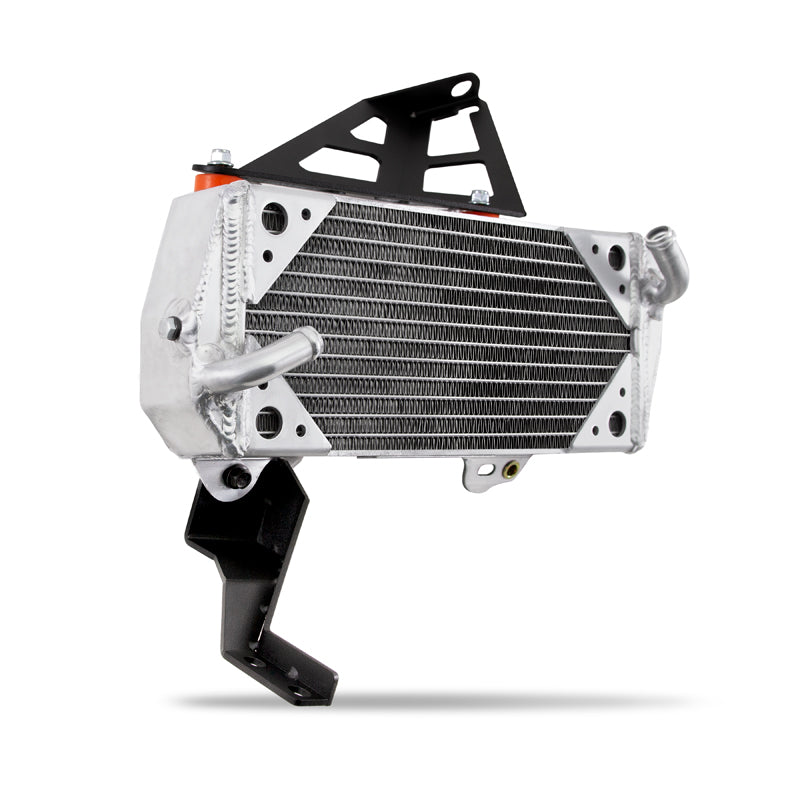

Employing the use of one of Mishimoto's smaller, but efficient, radiator designs, Mishimoto mounted an additional heat exchanger behind the K20C1 with robust steel brackets, tapping in after the Civic's heater core. Utilizing the air flow generated through the engine bay the Secondary Race Radiator generates additional cooling power for the already overworked stock radiator, keeping you on the track longer. In addition to the supplementary cooling power, the 2017+ Honda Civic Type R Secondary Race Radiator also increases the overall coolant capacity. The Mishimoto Lifetime Warranty is also included with the radiator kit to keep your CTR cool and you worry free.
Incorporates additional radiator into factory cooling system for increased engine cooling.
Utilizes factory aerodynamics for airflow to unique mounting location.

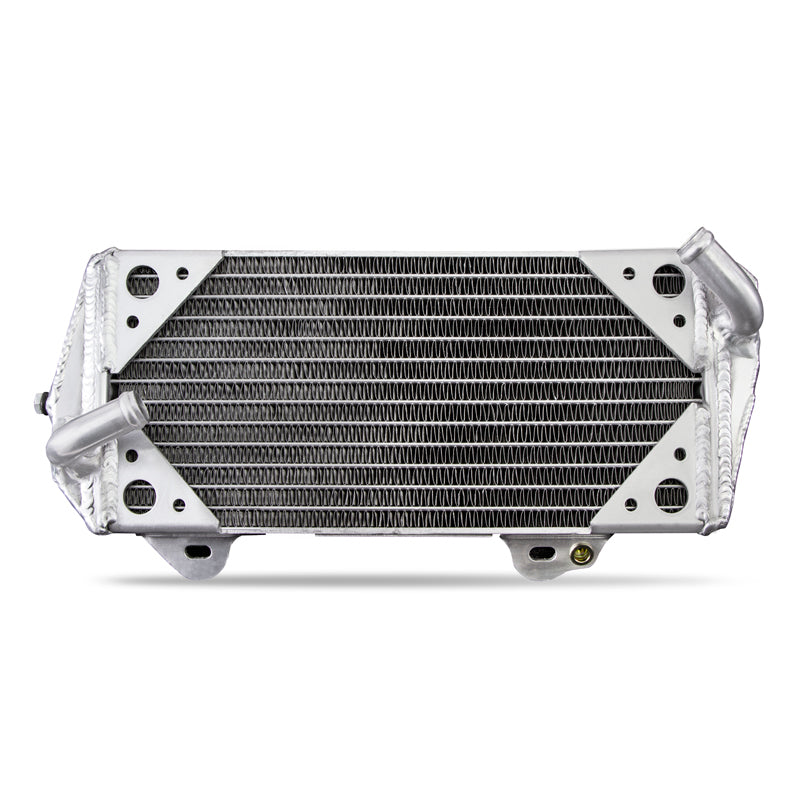

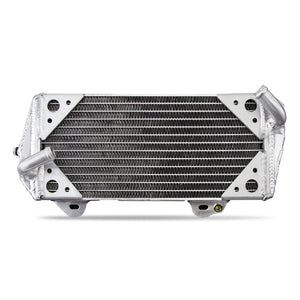

Full aluminum construction with durable, TIG-welded end tanks.
| Core length (in) | 11.03 |
|---|---|
| Core height (in) | 5.04 |
| Outlet (in) | 0.63 |
| Fluid capacity (gal) | 0.2 gal |
| Rows | 1 |
| Inlet (in) | 0.63 |

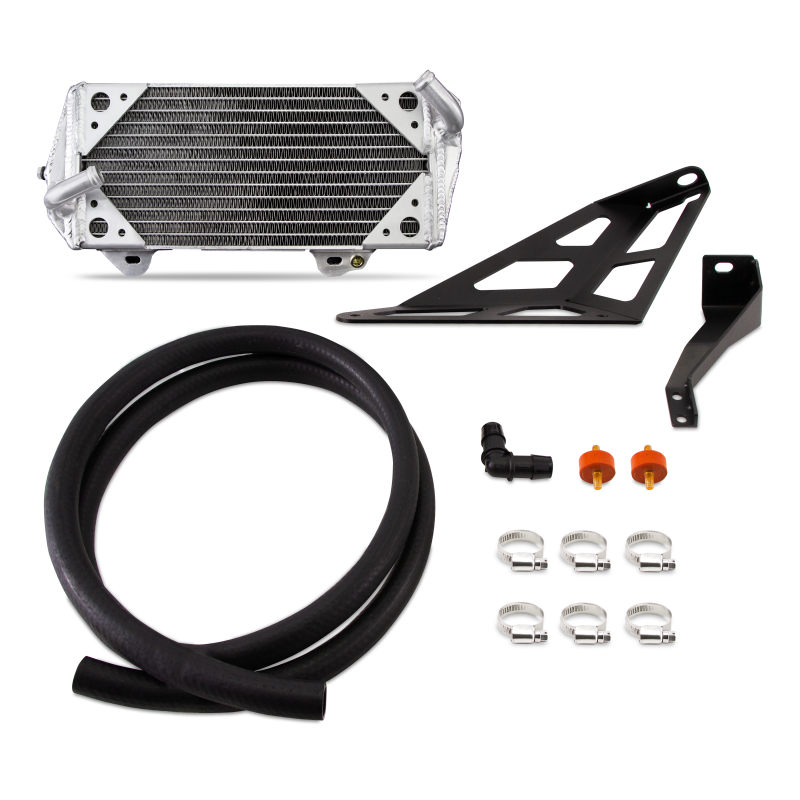

| Includes | Secondary Race Radiator; Mounting Bracket Set; Heater Hose; 90 Barbed Hose Adapter; (6) Worm Gear Clamps; Mounting Hardware |
| Chassis codes | FK8 |
| Core finish | Uncoated |
| Core row quantity | 1 |
| Down flow or cross flow type | Cross Flow |
| Drain plug included | Yes |
| Drain plug thread size | M12 - 1.5 |
| Fluid capacity | 0.17 gal |
| Inlet diameter | 0.63 in |
| Inlet location | Top Left |
| Outlet location | Bottom Left |
| Part number | MMRAD-CTR-17S |
