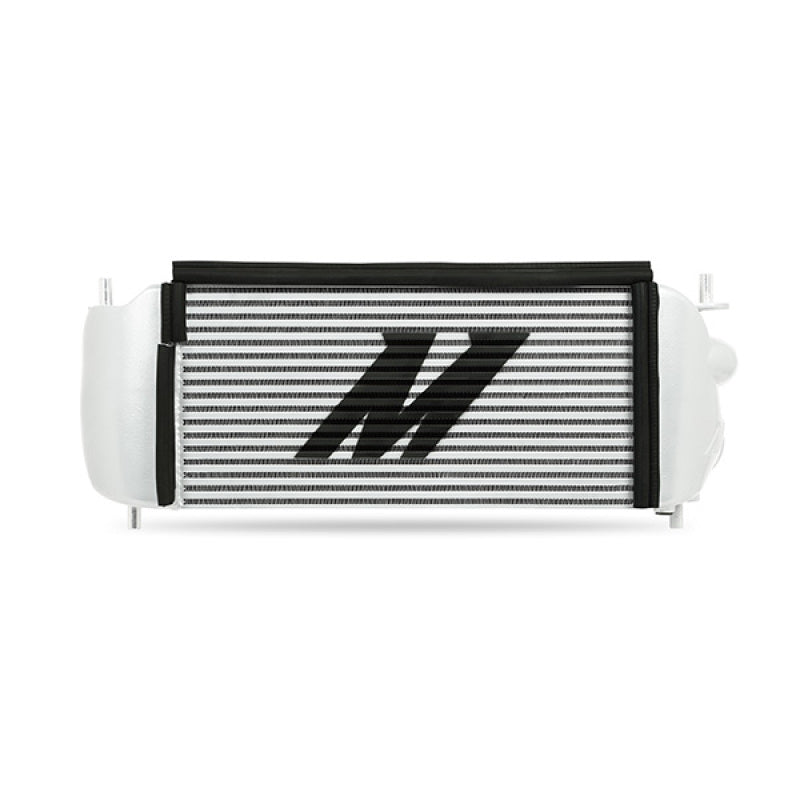

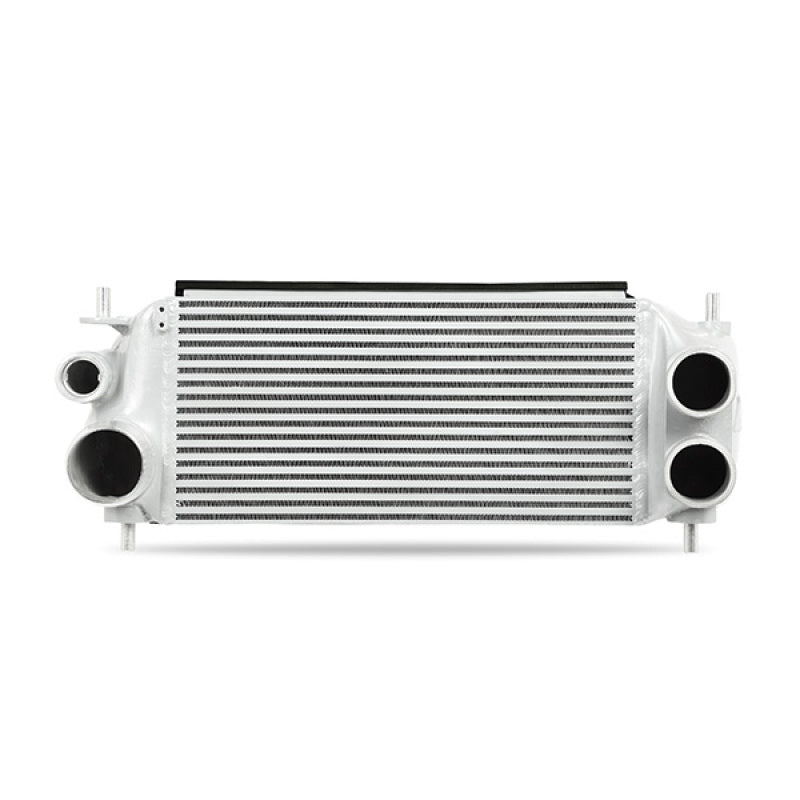

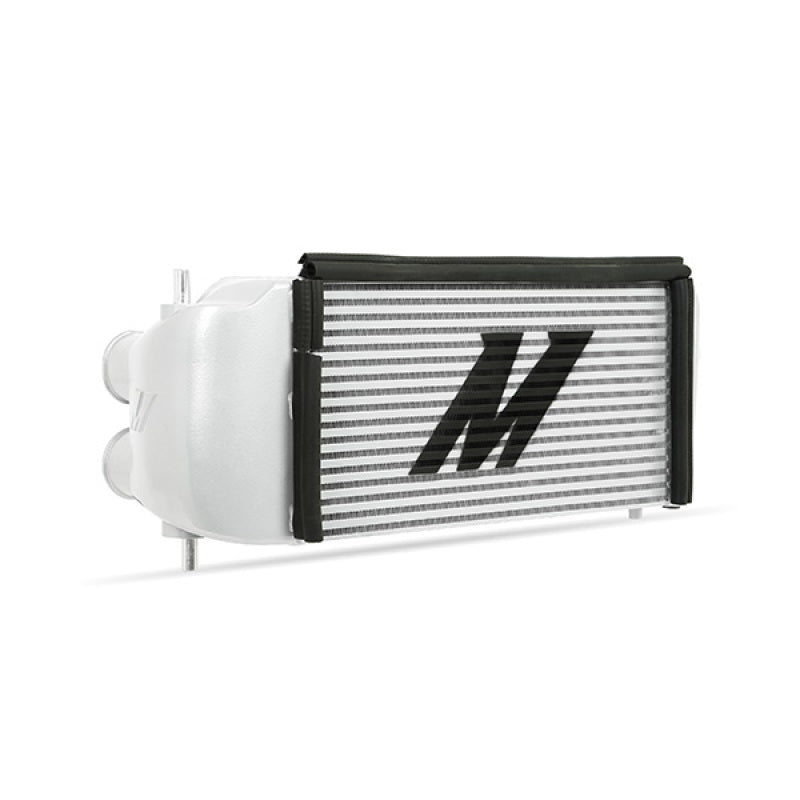

Keep those air intake temps down! With Mishimoto's Performance Intercooler for the 2015+ Ford F-150 EcoBoost, your engine will reach a better level of cooling from the help of both an increase in core volume by 77% over stock and external fin surface area by 163%. We put our core through some grueling tests to see how our design can alleviate the effects of heat soak. With temperature drops averaging 10 degrees under the stock numbers, your F-150 will take in cooler air, providing better performance and increased tuning potential.
Features and Benefits
- 10F (5.5C) reduction in intake air temp
- 77-percent increase in internal core volume
- 163-percent increase in external fin surface area
Specifications
-
Engine Codes: 2.7L V6 EcoBoost; 3.5L V6 EcoBoost
-
Maximum Recommended Boost Pressure (PSI): 50
-
Overall Length (in): 29
-
Overall Height (in): 9.5
-
Overall Width (in): 7
-
Core Type: Bar-and-Plate
-
Core Thickness (in): 4.72
-
Core Length (in): 19.6
-
Core Height (in): 9.4
-

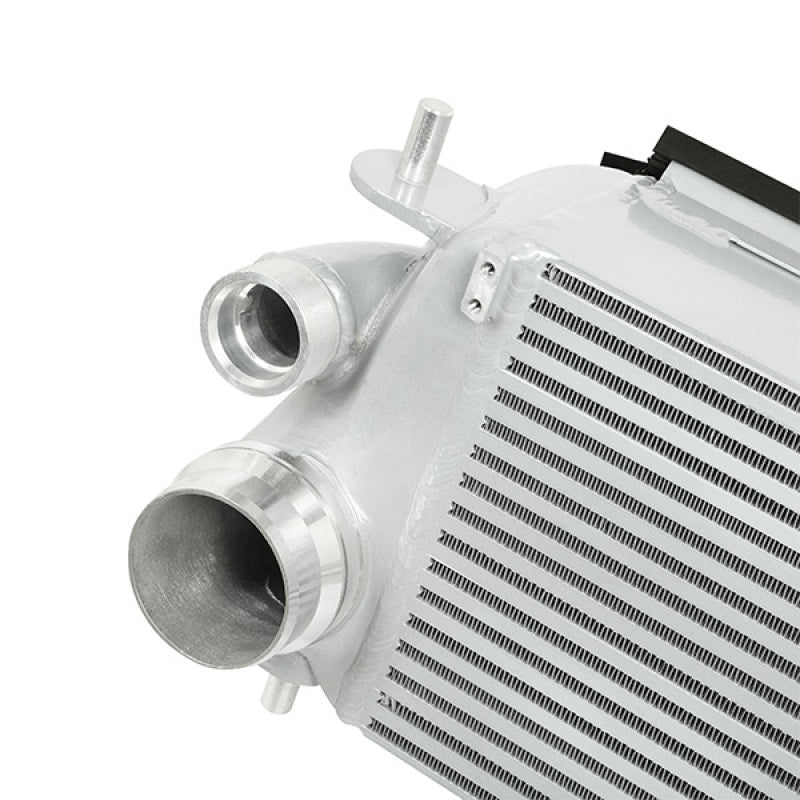

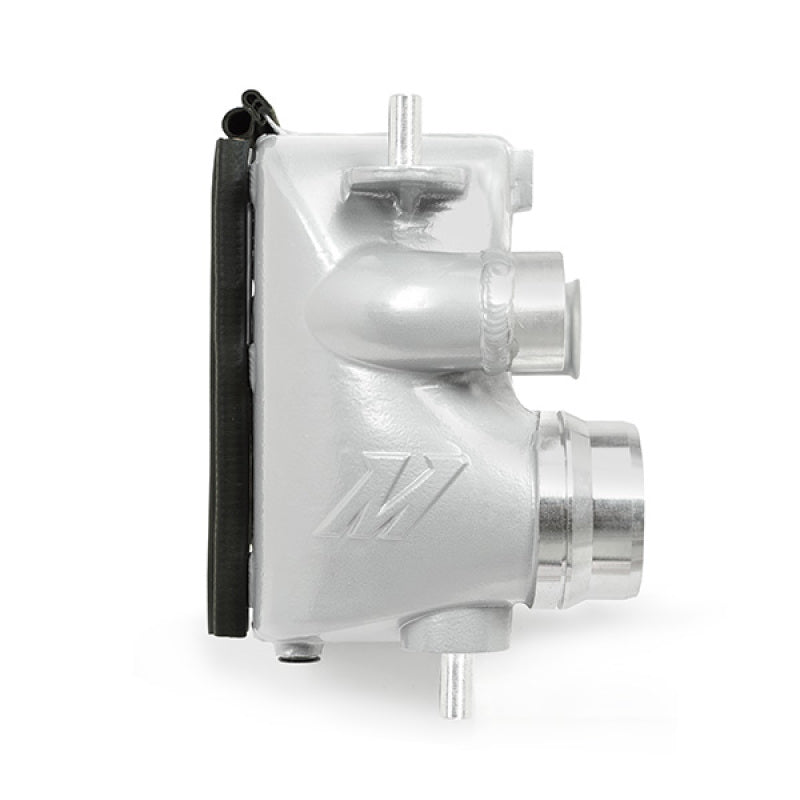

Inlet (in): 2.5
-
Outlet (in): 3
-

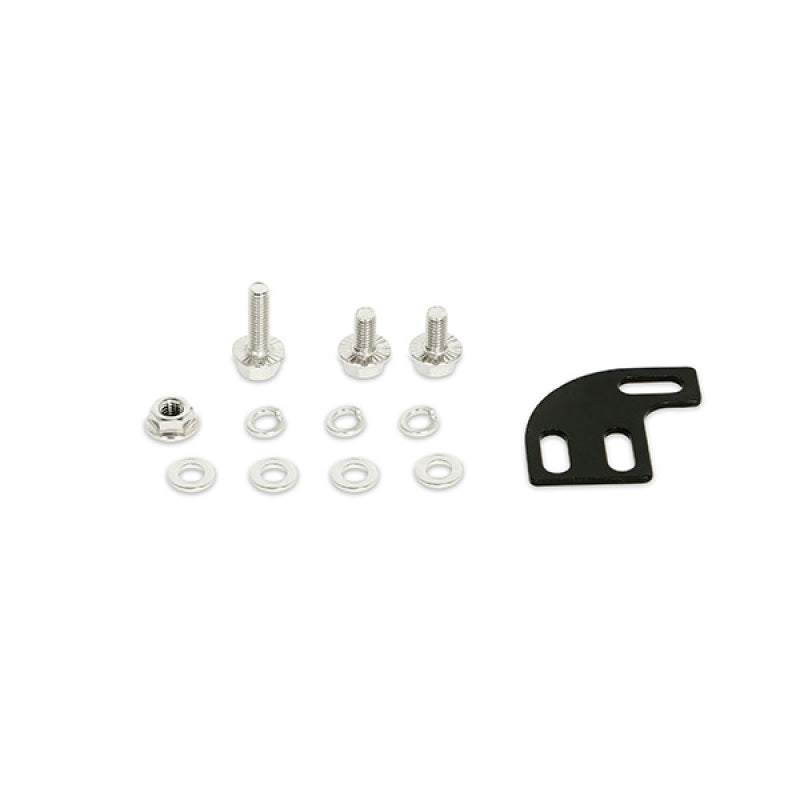

Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim; (1) Bypass Valve Bracket; Mounting Hardware; Bypass Valve Hardware
-
CARB EO Number: D-759-6
-
Height: 9.5 in
-
Length: 29 in
-
Width: 7 in
-
Inlet Outside Diameter: 2.5 in
-
Outlet Outside Diameter: 3 in
-
Inlet Fitting Gender: Male
-
Outlet Fitting Gender: Male
-
Inlet Tank Material: Aluminum
-
Universal Or Specific Fit: Specific
-
Core Material: Aluminum
-
Core Color: Silver
-
Type: Bar-and-Plate
