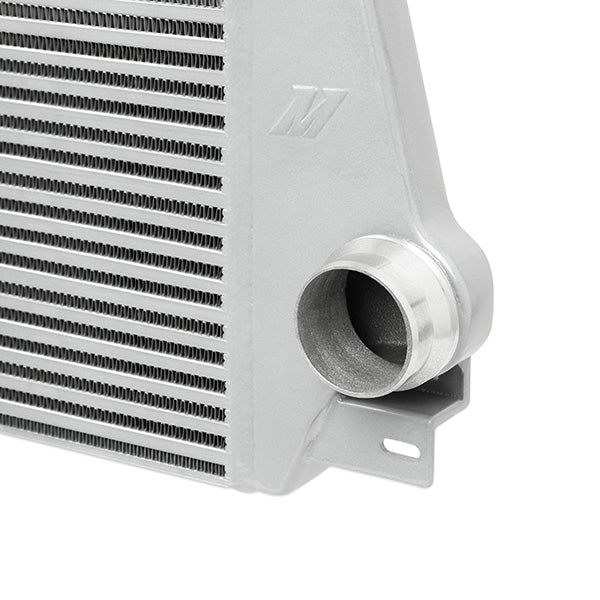

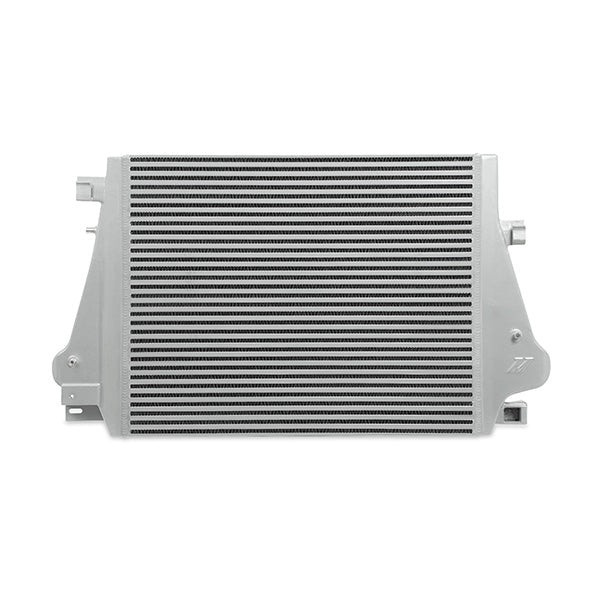

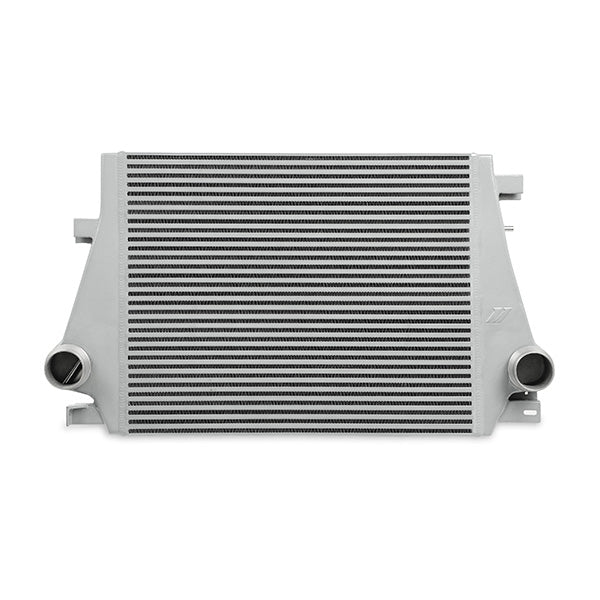

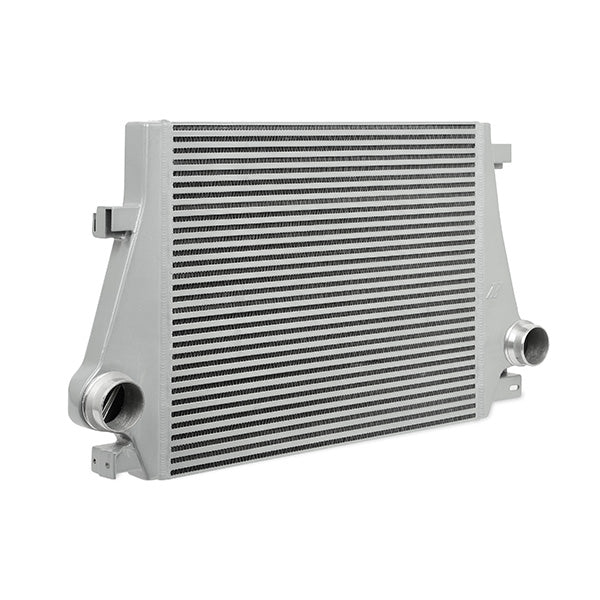

it's time to make Mishimoto's line of parts for the 2016+ Chevrolet Camaro 2.0T and the 2013+ Cadillac ATS 2.0T a little bit bigger by introducing a direct-fit performance intercooler. This will be a great part to add to your LTG powerplant if you're looking for increased airflow and higher power potential. An upgraded intercooler will also be a supporting platform for other bolt-on modifications such as an intake or an upgraded turbocharger.
Mishimoto's intercooler has an increased external fin surface area of 239%, an internal volume increase of 45%, and an overall core size increase of 78% over stock. While this is a direct replacement for the factory intercooler unit, these size increases greatly help with heat-soak. Extensive testing was conducted to be sure that Mishimoto's design combats heat-soak just as well as a front-mount design would, and the results showed maximum temperature drops of 25°F compared to the stock setup using factory charge pipes.

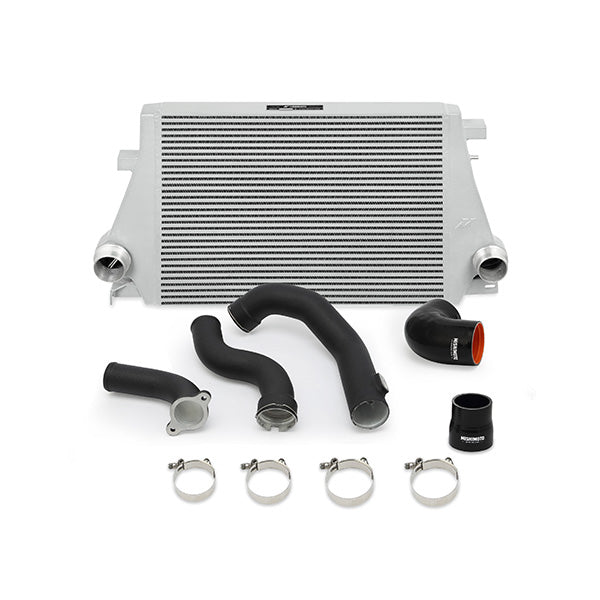

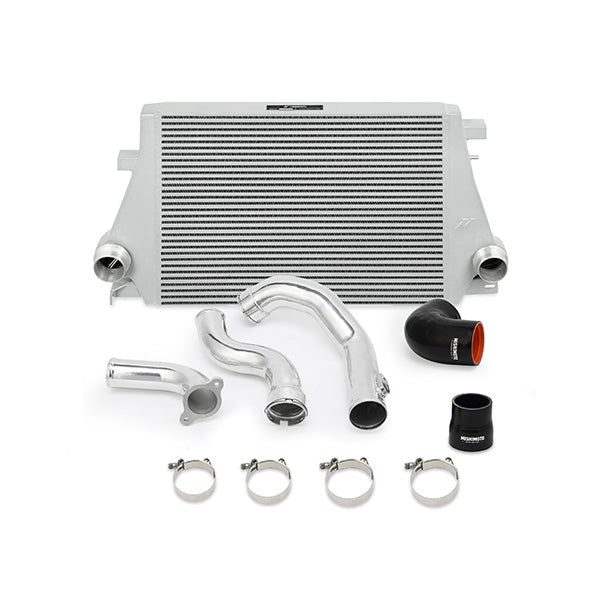

Mishimoto also gained 15 hp and 12 ft-lbs of torque, which makes this a true bolt-on part yielding results. This intercooler is designed to be used with all factory equipment on both the 2016+ Chevy Camaro 2.0T and the 2013+ Cadillac ATS 2.0T, and will pair with Mishimoto's upgraded intercooler pipes. There is no modification or cutting required to install this intercooler and it comes with the Mishimoto Lifetime Warranty.
2-in thick intercooler design optimized for maximum airflow with minimal pressure drop.
25F (14C) reduction in AIT.
61F (34C) temperature drop over stock intercooler shown during heat-soak torture test.
| Core height | 17.15 in |
|---|---|
| Core length | 21.65 in |
| Height | 17.15 in |
| Length | 31.1 in |
| Width | 3.62 in |
| Inlet outside diameter | 2.4 in |
| Inlet fitting gender | Male |
| Outlet fitting gender | Male |
| Inlet tank material | Aluminum |
| Universal or specific fit | Specific |
| Core material | Aluminum |
| Core colour | Silver |
| Type | Bar-and-Plate |
| Engine codes | LTG |
| Chassis codes | Alpha |
| Maximum recommended horsepower | 450 |
| Overall length (in) | 31.1 |
| Overall height (in) | 17.15 |
| Overall width (in) | 3.62 |
| Core type | Bar-and-Plate |
| Inlet (in) | 2.4 |
| Outlet (in) | 2.4 |
| Includes | (1) Aluminum Intercooler; (3) Tree Clips |
| Part number | MMINT-CAM4-16 |
