Mishimoto Part # MISMMINT-CAM4-16KWBK

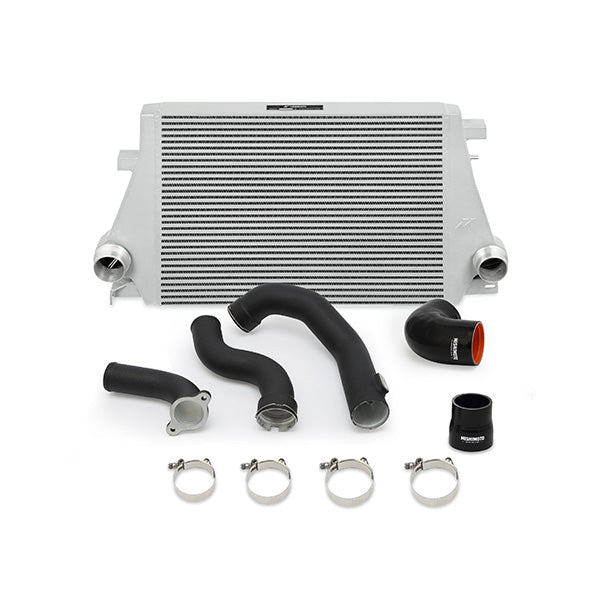

Mishimoto 2016+ Chevrolet Camaro 2.0T / 2013+ Cadillac ATS 2.0T Intercooler Kit - Wrinkle Black - MMINT-CAM4-16KWBK

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

It's time to give the intercooling system in your 2016+ Chevrolet Camaro 2.0T or 2013+ Cadillac ATS a complete overhaul with the Mishimoto Performance Intercooler Kit. Our bar-and-plate constructed core picks up the slack for the stock unit by offering increased heat rejection characteristics, as well as a boost in airflow. On top of the new construction, our design increases the internal core volume by 45%, and offers a whopping 239% gain in external fin surface area, making sure that the charged air running through your LTG is as chilled as possible. Our kit also includes a set of our mandrel-bent intercooler piping featuring a range of 2.25-2.75? diameters equating in a 30% increase in volume and 10% better flow of the charged air. All together, our piping kit gits your LTG powered Camaro or ATS up to 11 additional horsepower and 9 ft-lbs of torque. We have also included a pre-welded NPT port on the cold side piping that not only allows for easy installation of your stock equipment, but also adding an aftermarket boost gauge or meth-injection is a breeze. The Mishimoto Performance Intercooler Kit for your 2013+ ATS or 2016+ Camaro is available with your choice of polished or wrinkle black piping, and as always this kit is covered under the Mishimoto Lifetime Warranty.

Features and Benefits

  • 2-in thick intercooler design optimized for maximum airflow with minimal pressure drop
  • 45-percent increase in internal core volume and 239-percent increase in external fin surface area
  • 78-percent increase in core size

  • Maximum Recommended Horsepower: 450
  • Core Thickness (in): 2
  • Inlet (in): 2.4
  • Outlet (in): 2.4
  • Includes: (1) Aluminum Intercooler; (2) Aluminum Pipes w/ CNC-machined quick-disconnects; (1) Aluminum Pipe w/ CNC-machined 2-bolt flange; (2) Quick-Disconnect Spring Clips; (1) 2.75-in 90-degree Silicone Coupler; (1) 2.25-in to 2.5-in Silicone Transition Coupler; (1) 2.5-in T-bolt Clamp; (1) 2.75-in T-bolt Clamp; (2) 3-in T-bolt Clamps; (3) Tree Clips
  • Cold Side Pipe Inside Diameter: 2.4 in
  • Core Material: Aluminum
  • Coupler Material: Silicone
  • End Tank Construction: Cast
  • End Tank Material: Aluminum
  • Hose Clamps Included: Yes
  • Intercooler Type: Air-to-Air
  • Maximum Horsepower: 450 hp
  • Pipe Finish: Powder Coated
  • Pipe Material: Aluminum
  • Universal Or Specific Fit: Specific
  • Engine Codes: LTG
  • Chassis Codes: Alpha
