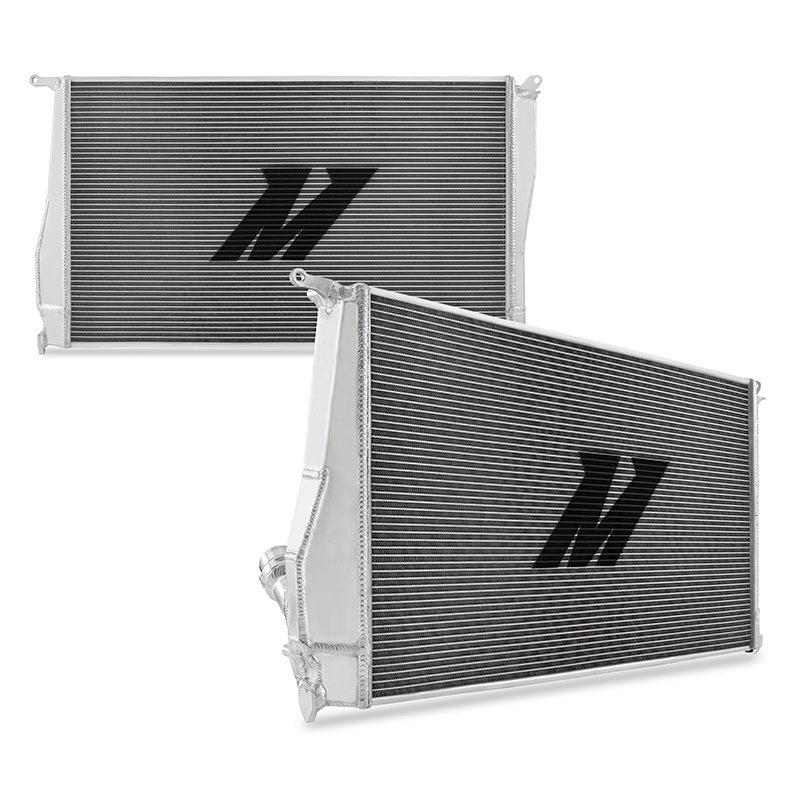

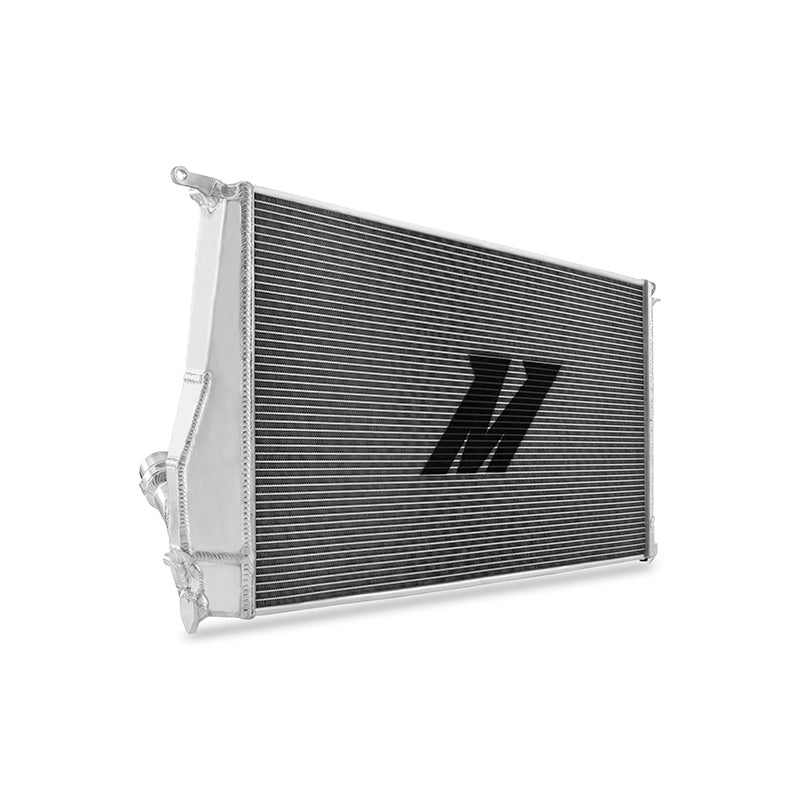

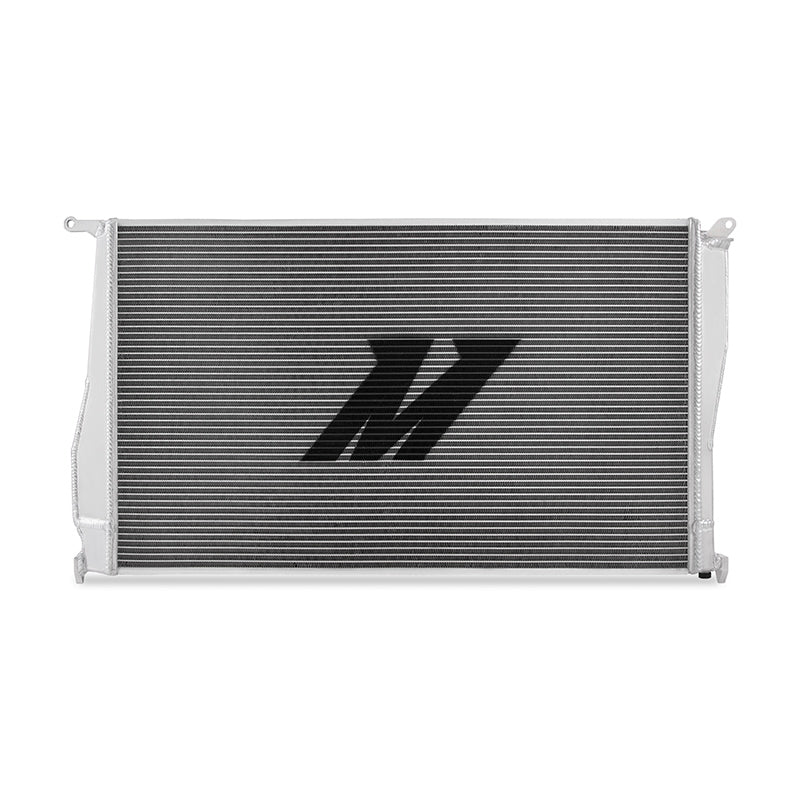

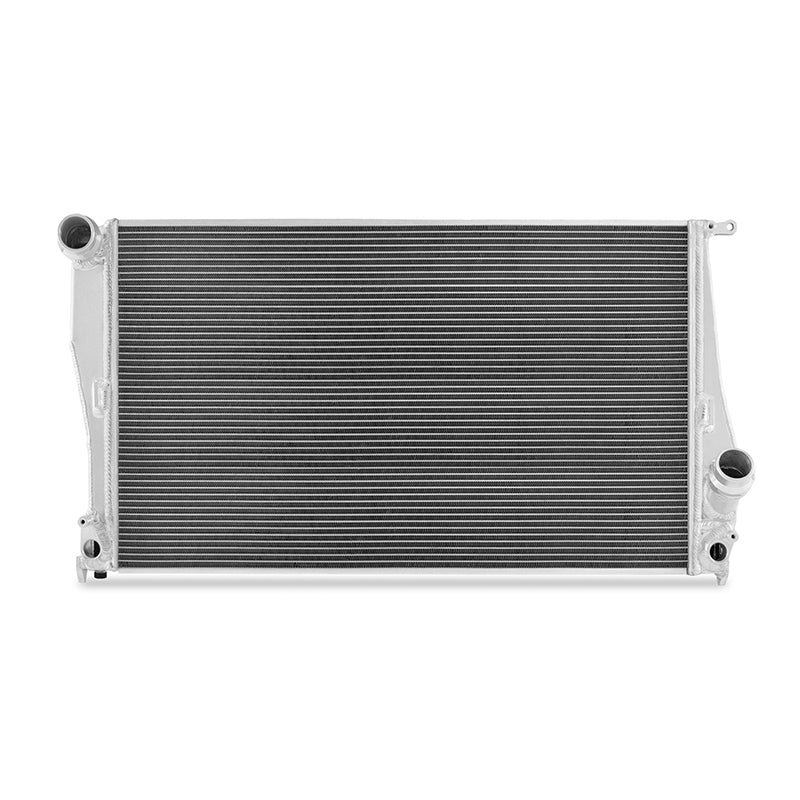

Keep your turbocharged straight-six cool with the Mishimoto 2006-2013 BMW 335i/135i Performance Aluminum Radiator. The N54 and N55 powering the 335i, 135i, and a wide range of other Bimmers is a mountain of efficient power, but there's the age-old nemesis to speed heat. Whether you're taking a spirited drive on the backroads, or partaking in a full-blown track day, Mishimoto's radiator design is sure to keep your BMW cool.
Mishimoto's design is the perfect upgrade to eliminate rising temperatures. The Mishimoto 335i/135i radiator features all-aluminum construction with TIG-welded end tanks to a 100% brazed aluminum core and CNC-machined quick-disconnect inlet and outlet connections. This BMW radiator is constructed from high-quality aircraft aluminum with a brushed finish for the perfect combination of performance and style.

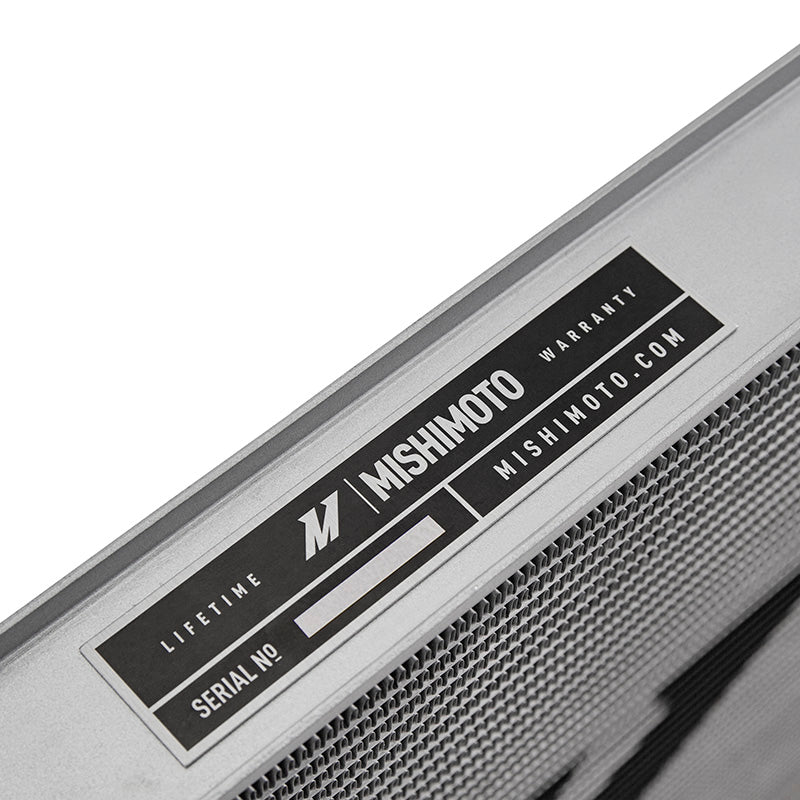

The Mishimoto 335i/135i radiator is precision engineered for flawless drop-in fitment while providing a 35% increase in coolant capacity. This BMW radiator also includes a Mishimoto Magnetic Oil Drain Plug with Dowty seal, which removes circulating metal fragments from the cooling system, providing further engine protection. As with all BMW parts, this aluminum radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship. Say goodbye to the days of broken stock plastic inlet and outlet connections.
Fully brazed two-row aluminum core with robotically TIG-welded end tanks.
No modification necessary for installation, functions with all stock equipment.

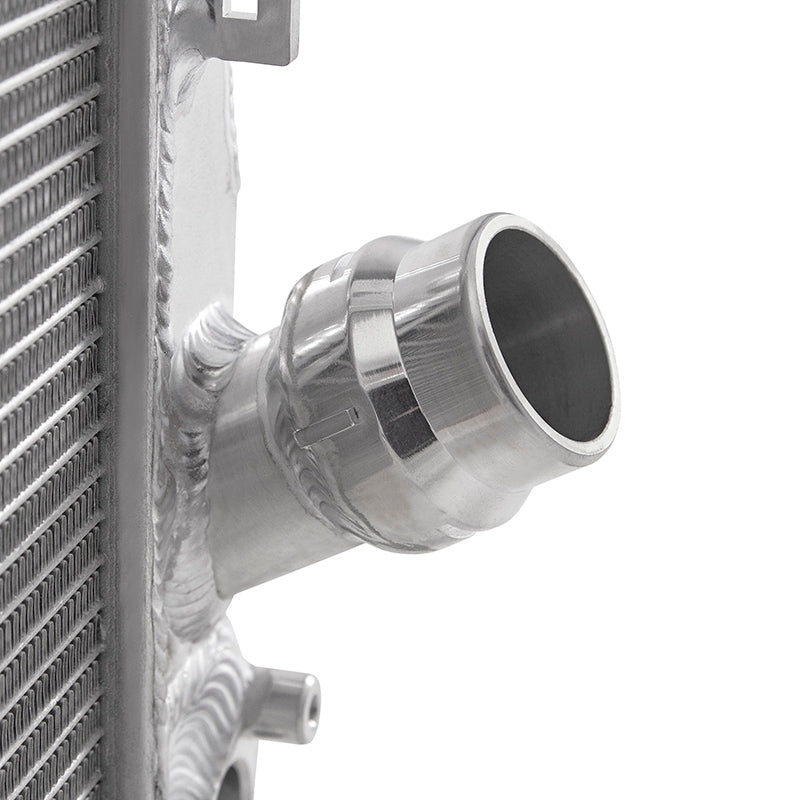

Precision designed CNC-machined quick-disconnect fittings mate perfectly with stock hoses.
| Overall height (in) | 28.3 |
|---|---|
| Overall length (in) | 14.9 |
| Overall width (in) | 4.1 |
| Core length (in) | 23.62 |
| Core height (in) | 13.78 |
| Fluid capacity (gal) | 2.5 gal |
| Rows | 2 |
| Core thickness (in) | 1.57 |
| Engine codes | N54; N55 |
| Chassis codes | E82; E84; E88; E89; E90; E92; E93 |
| Includes | Mishimoto Radiator; Magnetic Drain Plug w/ Dowty Oil Seal |
| Core finish | Uncoated |
| Core row quantity | 2 |
| Down flow or cross flow type | Cross Flow |
| Drain plug included | Yes |
| Drain plug thread size | M12 - 1.5 |
| Fluid capacity | 2.45 gal |
| Inlet location | Top Left |
| Outlet location | Bottom Right |
| Part number | MMRAD-E90-07A |
