There’s no greater enemy for a transmission than heat. Whether your 2017-2019 Chevy/GMC 6.6L L5P Duramax is a dedicated tow vehicle, hardworking fleet truck, or a daily driver with a liking for the drag strip, you need to ensure that your transmission runs cool.Luckily, Mishimoto has developed a direct-fit transmission cooler to do just that. Our 2017-2019 Chevy/GMC 6.6L L5P Duramax transmission cooler utilizes a stacked-plate design for maximum durability and powerful cooling. Aside from its durable construction, this transmission cooler is significantly larger than the stock core. The Mishimoto transmission cooler boasts a 67% greater core volume, and 164% greater fin surface area than the stock 2017-2019 L5P Duramax transmission cooler.The included CNC-machined adapters connect directly to the stock transmission cooler lines for leak-free cooling. Direct-fit brackets and tailor-made hoses make installation easy. Like all Mishimoto products, this transmission cooler is backed up by our Lifetime Warranty with Accident Protection for worry-free cooling as long as you own it.
Features and Benefits
- Direct-fit for all 2017-2019 Chevrolet/GMC with Allison transmission (L5P)

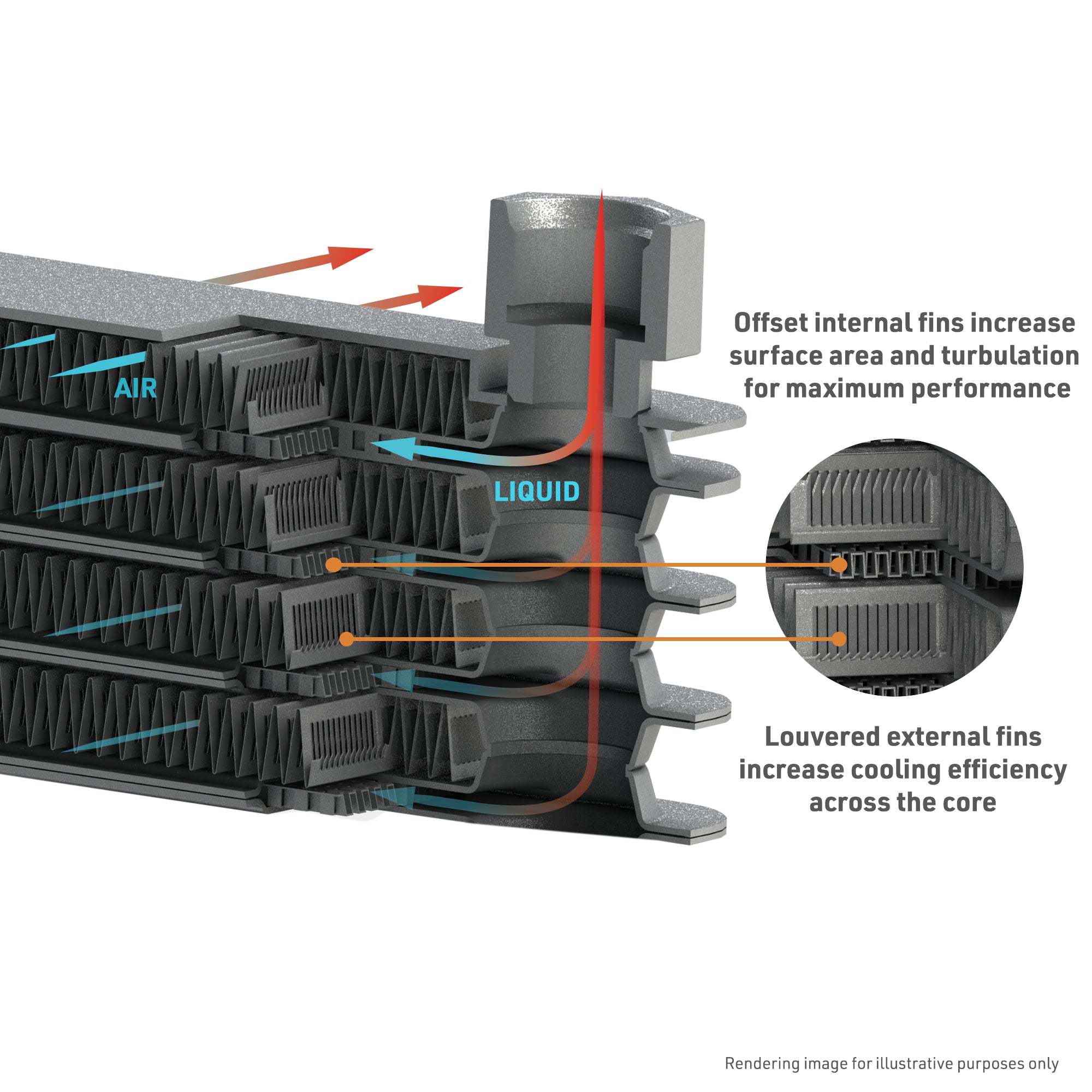

- Stacked-plate construction for maximum durability and superior cooling
- CNC-machined adapters make it easy to connect Mishimoto cooler to stock fluid lines or AN lines
Specifications
-
Chassis Codes: L5P
-
Transmission Codes: Allison 1000
-

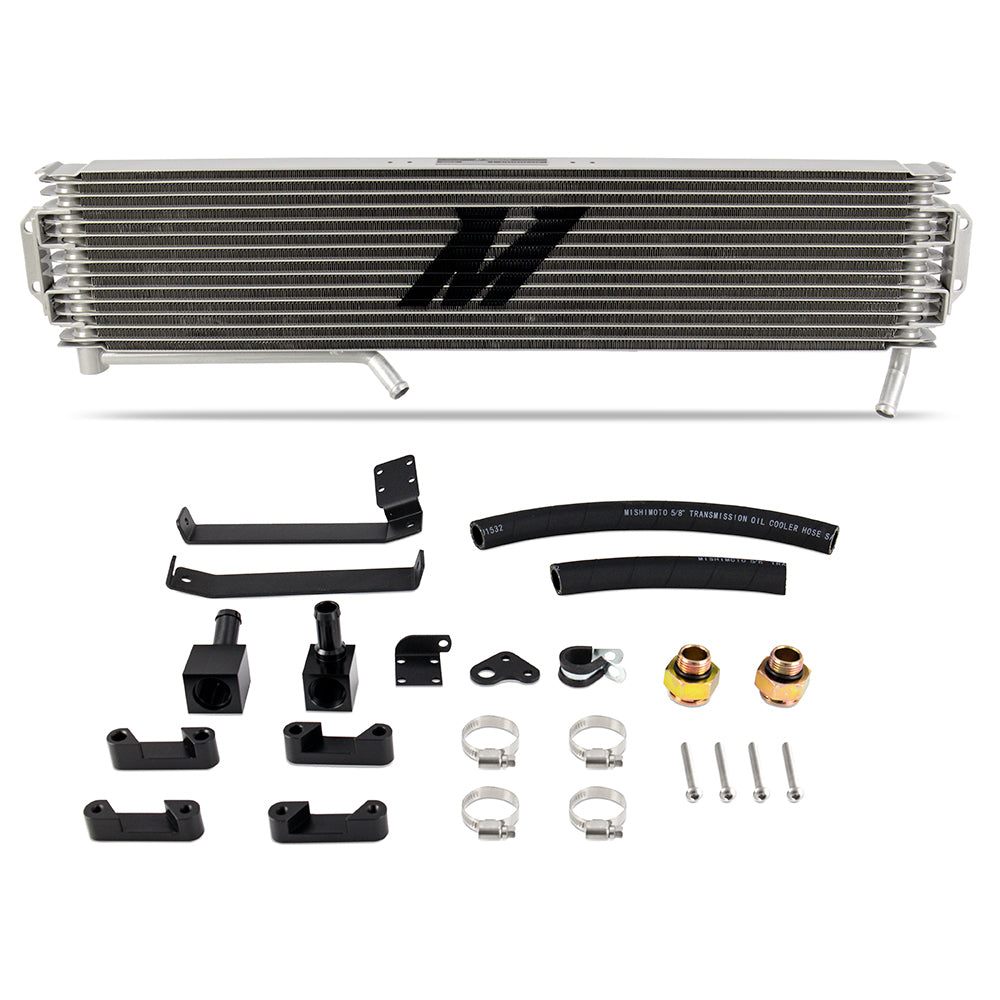

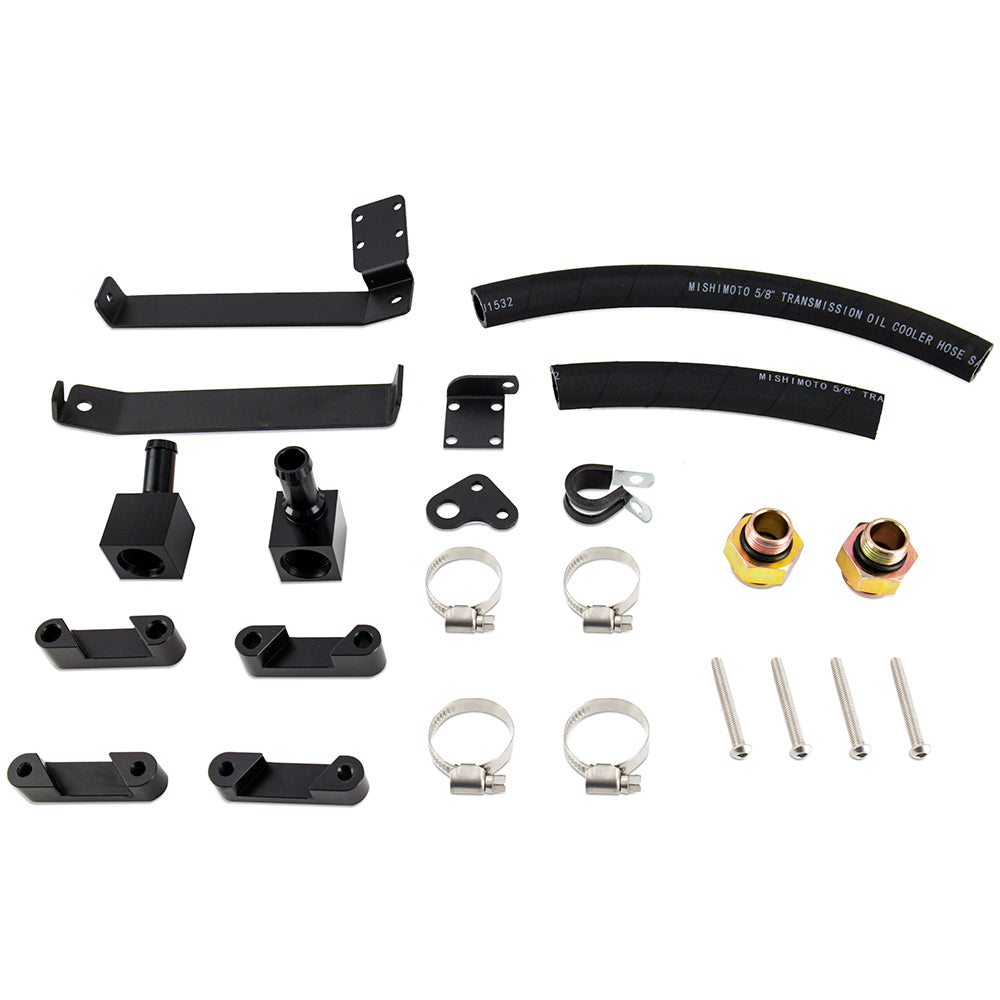

Includes: Mishimoto Stacked Plate Transmission Cooler; CNC-Machined Quick-Disconnect to Hose Barb Adapters; Stock-style Quick-Disconnect Fittings; Transmission Hoses; Air Temperature Sensor Relocation Bracket; Mounting Brackets; Worm Gear Clamps; Mounting Hardware; Includes durable SAE J1532 hose designed specifically for use with transmission fluid
-
Core Height: 5.78 in
-
Core Material: Aluminum
-
Core Thickness: 1.25 in
-
Core Width: 27.95 in
-
Finish: Natural Aluminum
-
Grade Type: Performance
-
Inlet Diameter: 1 in
-
Line Included: Yes
-
Mounting Hardware Included: Yes
-
Rows: 13
-
Core Length (in): 27.95
-
Engine Codes: 6.6L Duramax
