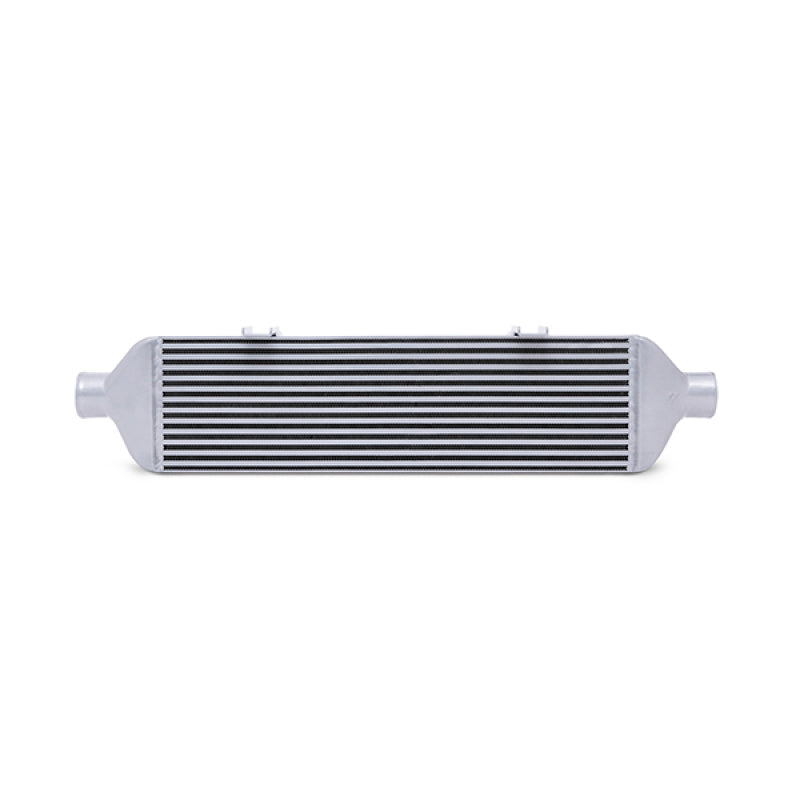

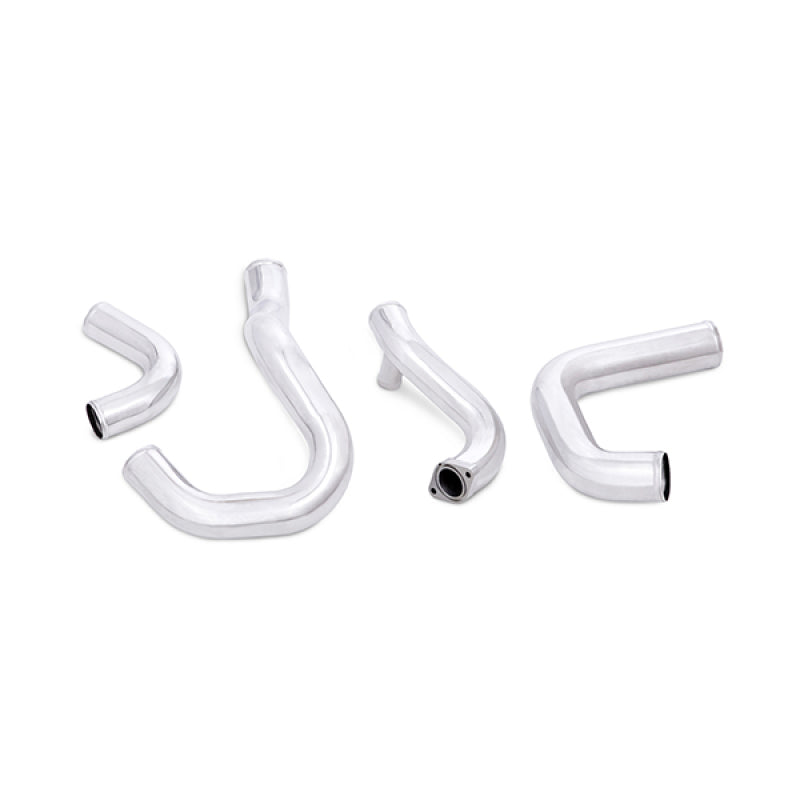

"Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto WRX Front-Mount Intercooler Kit will provide your Subaru with the ability to make the most horsepower and torque possible. The Mishimoto front-mount intercooler was designed with a large 28" intercooler core that provides the maximum cooling capability without excessive pressure drops that will wear out any turbocharger over time. The Mishimoto WRX front-mount intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends from cut-and-weld end tanks that disrupt airflow. The intercooler provides the best airflow and heat-exchange properties for those time-attack laps, or a 10-second blast down the quarter mile. The Mishimoto Subaru WRX Front-Mount Intercooler also features four mandrel-bent aluminum pipes for optimum airflow. The hot-side pipes are 2.25" in diameter to keep airflow velocities high, giving your car an instant response without excessive throttle lag that plagues many front-mount intercooler designs. The hot-side pipe also features a CNC-machined flange for a leak free connection to the turbo. The cold side of the system features 2.5" to 2.75" mandrel-bent aluminum tubing for maximum airflow, and to match the diameter of your throttle body. This 2015 WRX front-mount intercooler kit contains everything needed for a worry-free installation, including an application-specific crash bar that both supports the intercooler and mounts to existing points on the vehicle. No cutting of the front bumper or drilling is required to install the crash bar and intercooler. The kit includes all necessary mounting brackets, including a new bracket for the air intake. Our WRX front-mount intercooler kit also includes every coupler and clamp you need for a clean install, and compliments the Mishimoto Subaru WRX Performance Air Intake for added cooling power. Mishimoto tested this intercooler on our Stage 2 265whp WRX
Features and Benefits
- 3.5-in Thick intercooler design optimized for maximum flow
- Designed to work with Mishimoto Performance Air Intake and stock intake
- No modification to front bumper and retains stock fog lights
Specifications
-
CARB EO Number: D-759
-
Cold Side Pipe Inside Diameter: 2.75 in
-
Core Height: 8.05 in
-
Core Color: Silver
-
Core Construction: Bar-and-Plate
-
Coupler Color: Black
-
Coupler Material: Silicone
-
Hose Clamps Included: Yes
-
Hot Side Pipe Inside Diameter: 2.45 in
-
Intercooler Type: Air-to-Air
-
Maximum Boost Pressure: 30 psi
-
Maximum Horsepower: 600 hp
-
Pipe Color: Silver
-
Pipe Finish: Powder Coated
-
Engine Codes: FA20DIT
-
Chassis Codes: VA
-
Maximum Recommended Boost Pressure (PSI): 30
-
Maximum Recommended Horsepower: 600
-
Overall Length (in): 37.7
-
Overall Height (in): 8.6
-
Overall Width (in): 5.4
-
Core Type: Bar-and-Plate
-

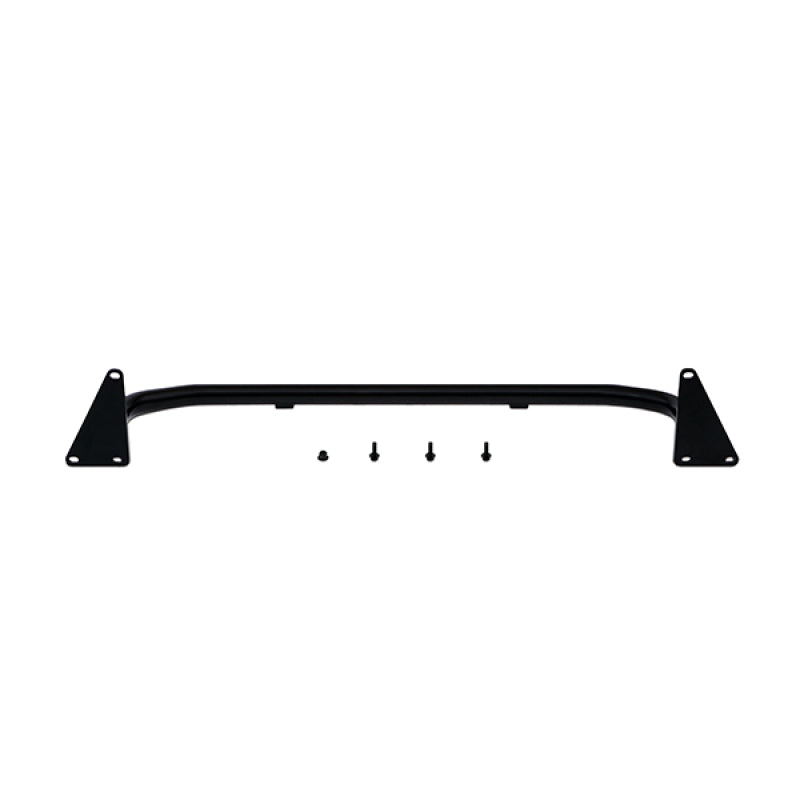

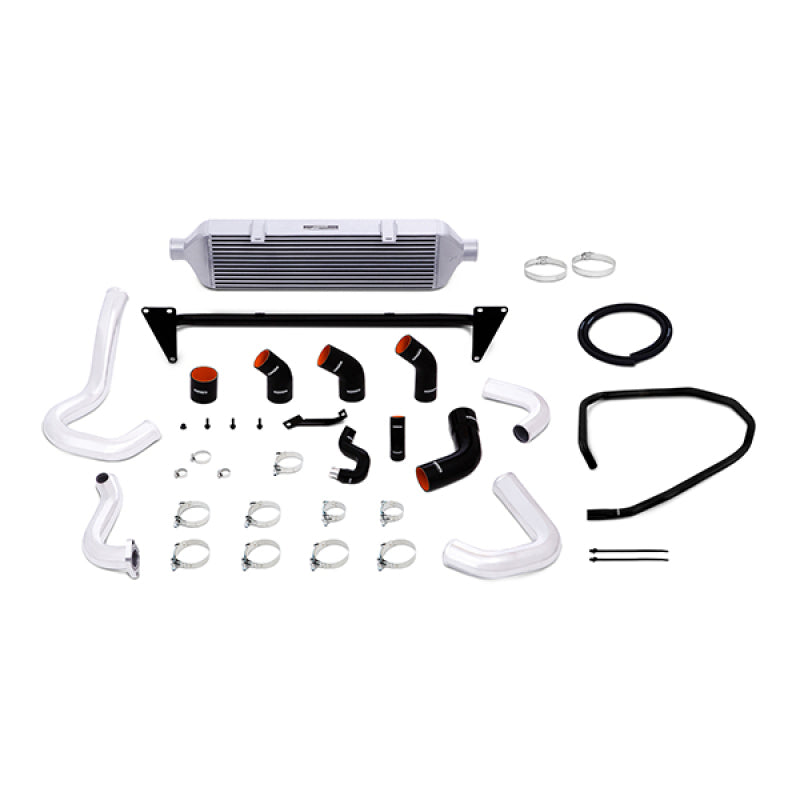

Includes: (1) Bar-and-Plate Intercooler; (1) Steel Crash Bar w/Mounting Hardware; (2) Hot-Side Intercooler Pipes; (2) Cold-Side Intercooler Pipes; (1) Air Intake Bracket; (1) 2.25-in 45-degree Coupler; (1) 2.25-in to 2.75-in 45-degree Transition Coupler; (1) 2.5-in to 2.75-in 55 -degree Transition Coupler; (1) 2.5-in to 2.75-in 65 -degree Transition Coupler; (1) 3.00-in Straight Coupler; (1) BPV Recirculation Hose; (1) BPV Vacuum Hose; (1) 30-45mm Worm Gear Clamp; (2) 1.75-in T-bolt Clamps; (3) 2.5-in T-bolt Clamps; (2) 2.75-in T-bolt Clamps; (5) 3-in T-bolt Clamps
-
Inlet (in): 2.45
