2003 Dodge Ram 2500 5.9 Liter 45RFE, 2003 Dodge Ram 2500 5.9 Liter 46RE, 2003 Dodge Ram 2500 5.9 Liter 47RE, 2003-2009 Dodge Ram 2500 5.9 Liter 48RE, 2004-2009 Dodge Ram 2500 5.9 Liter 545RFE, 2007-2009 Dodge Ram 2500 5.9 Liter 68RFE, 2007 Dodge Ram 2500 5.9 Liter AS68RC, 2005-2009 Dodge Ram 2500 5.9 Liter G56, 2004 Dodge Ram 2500 5.9 Liter NV3500, 2003-2005 Dodge Ram 2500 5.9 Liter NV4500, 2003-2004 Dodge Ram 2500 5.9 Liter NV4500HD, 2003-2005 Dodge Ram 2500 5.9 Liter NV5600, 2007-2009 Dodge Ram 2500 6.7 Liter 48RE, 2007-2009 Dodge Ram 2500 6.7 Liter 545RFE, 2007-2009 Dodge Ram 2500 6.7 Liter 68RFE, 2007 Dodge Ram 2500 6.7 Liter AS68RC, 2007-2009 Dodge Ram 2500 6.7 Liter G56, 2003 Dodge Ram 3500 5.9 Liter 45RFE, 2003 Dodge Ram 3500 5.9 Liter 46RE, 2003 Dodge Ram 3500 5.9 Liter 47RE, 2003-2009 Dodge Ram 3500 5.9 Liter 48RE, 2004-2009 Dodge Ram 3500 5.9 Liter 545RFE, 2008-2009 Dodge Ram 3500 5.9 Liter 68RFE, 2007-2009 Dodge Ram 3500 5.9 Liter AS68RC, 2005-2009 Dodge Ram 3500 5.9 Liter G56, 2004 Dodge Ram 3500 5.9 Liter NV3500, 2003-2005 Dodge Ram 3500 5.9 Liter NV4500, 2004 Dodge Ram 3500 5.9 Liter NV4500HD, 2003-2005 Dodge Ram 3500 5.9 Liter NV5600, 2007-2009 Dodge Ram 3500 6.7 Liter 48RE, 2007-2009 Dodge Ram 3500 6.7 Liter 545RFE, 2008-2009 Dodge Ram 3500 6.7 Liter 68RFE, 2007-2009 Dodge Ram 3500 6.7 Liter AS68RC, 2007-2009 Dodge Ram 3500 6.7 Liter G56, 2008-2009 Dodge Ram 4500 6.7 Liter AS68RC, 2008-2009 Dodge Ram 4500 6.7 Liter G56, 2008-2009 Dodge Ram 5500 6.7 Liter AS68RC, 2008-2009 Dodge Ram 5500 6.7 Liter G56
Installation Instructions

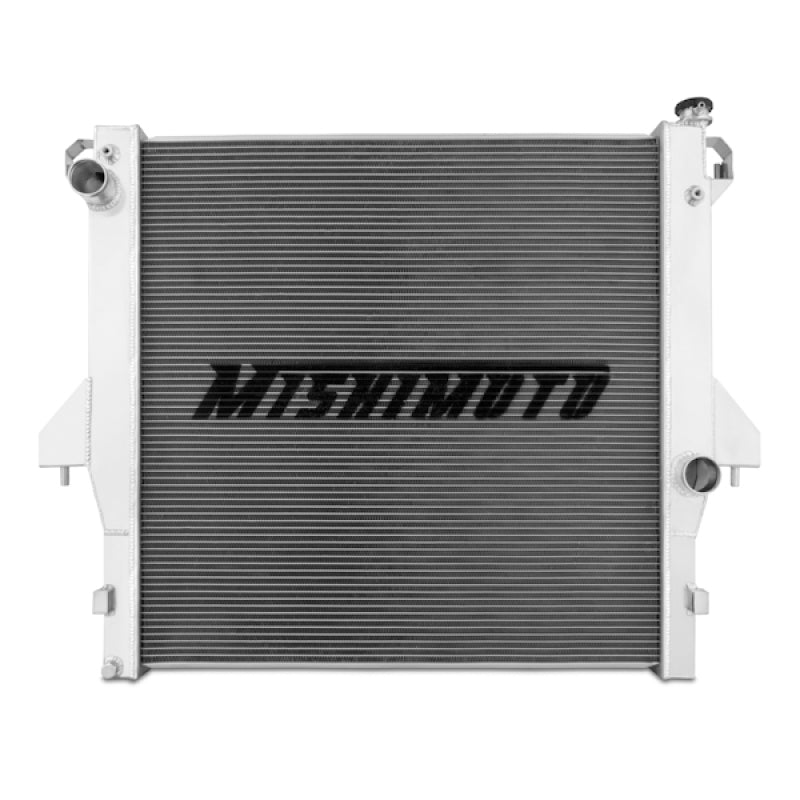

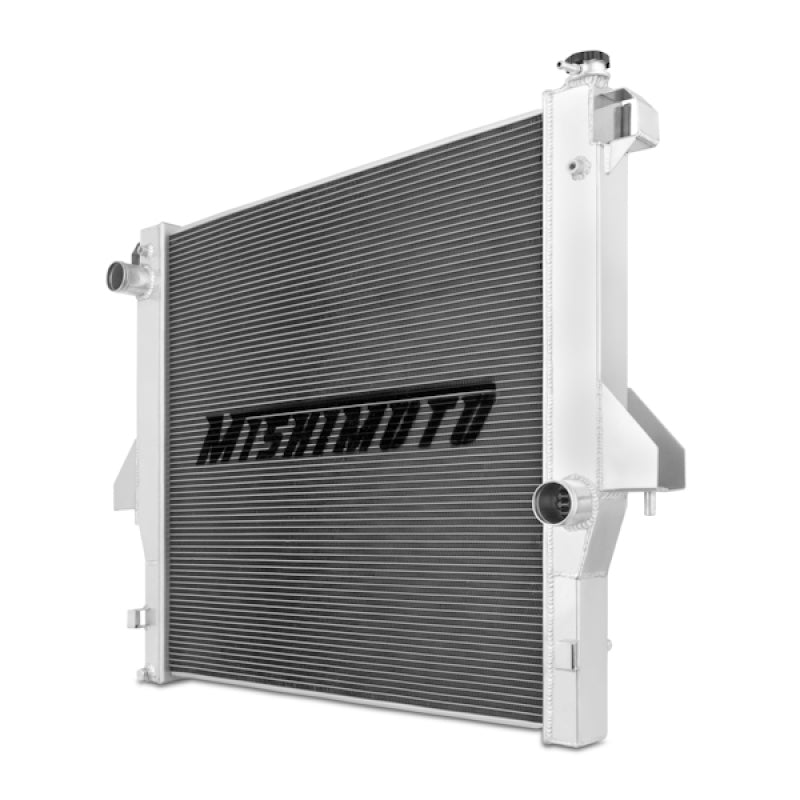

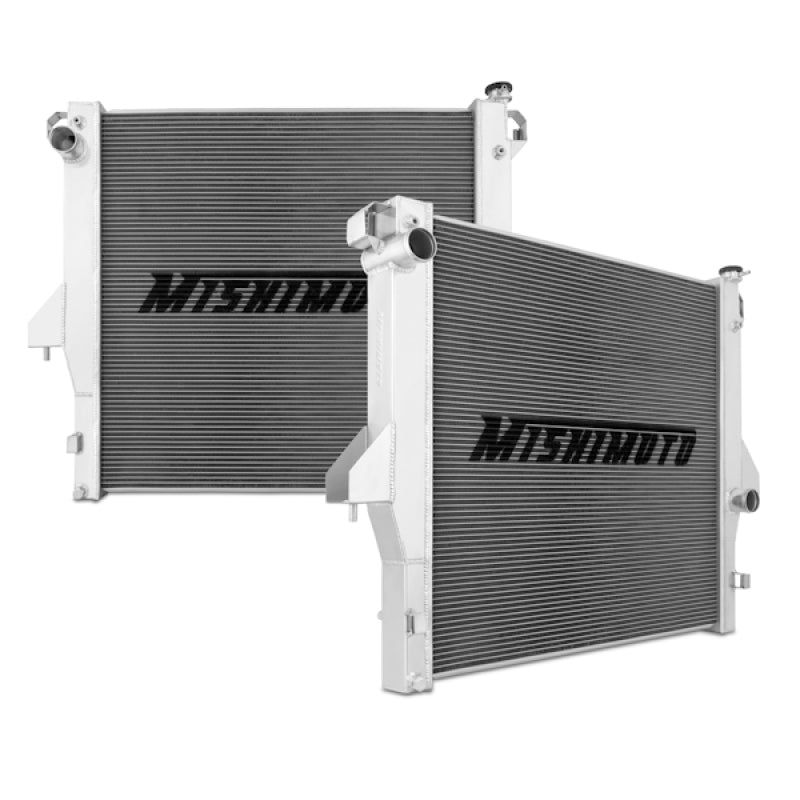

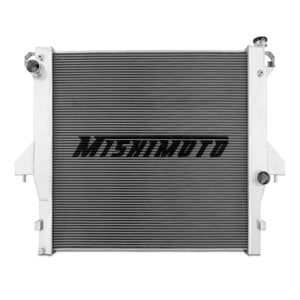

Features and Benefits

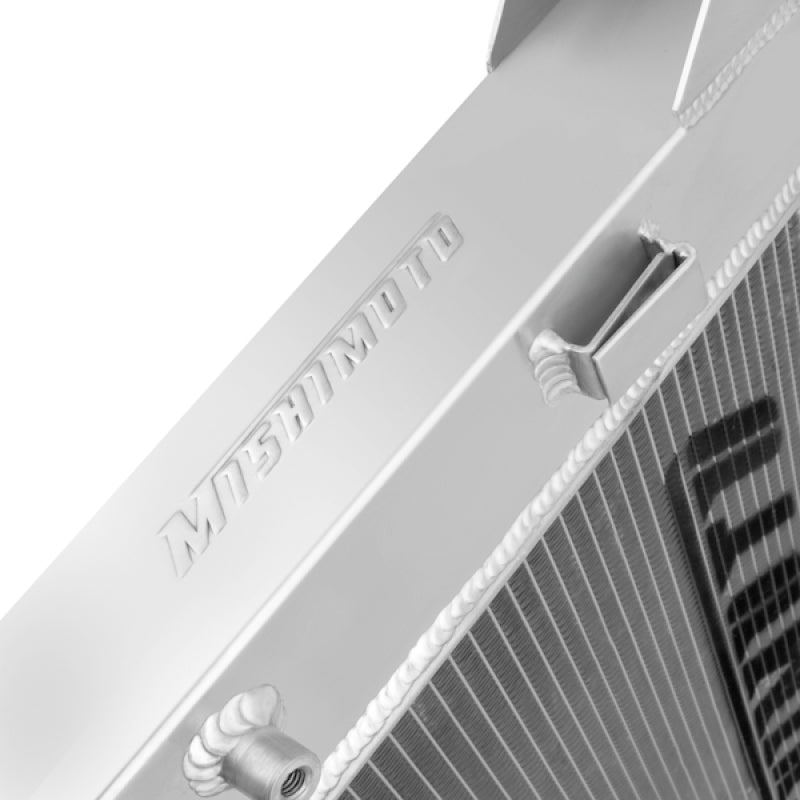

- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
Specifications
-
Overall Height (in): 35.5
-
Overall Length (in): 30.5
-
Overall Width (in): 5.63
-
Core Length (in): 27
-
Core Height (in): 28.1
-
Outlet (in): 2
-
Core Thickness (in): 1.34
-
Drain Plug Thread Size: M12 x 1.5
-
DPI: 2711
-
Inlet (in): 2
-
Rows: 2
-
Fluid Capacity (gal): 6.4 gal
-
Includes: Mishimoto Radiator; Mishimoto Radiator Cap; Magnetic Drain Plug
-
Core Finish: Uncoated
-
Core Row Quantity: 2
-
Down Flow Or Cross Flow Type: Cross Flow
-
Drain Plug Included: Yes
-
Fluid Capacity: 6.39 gal
-
Inlet Diameter: 2 in
-
Inlet Location: Top Left
-
Outlet Location: Bottom Right
-

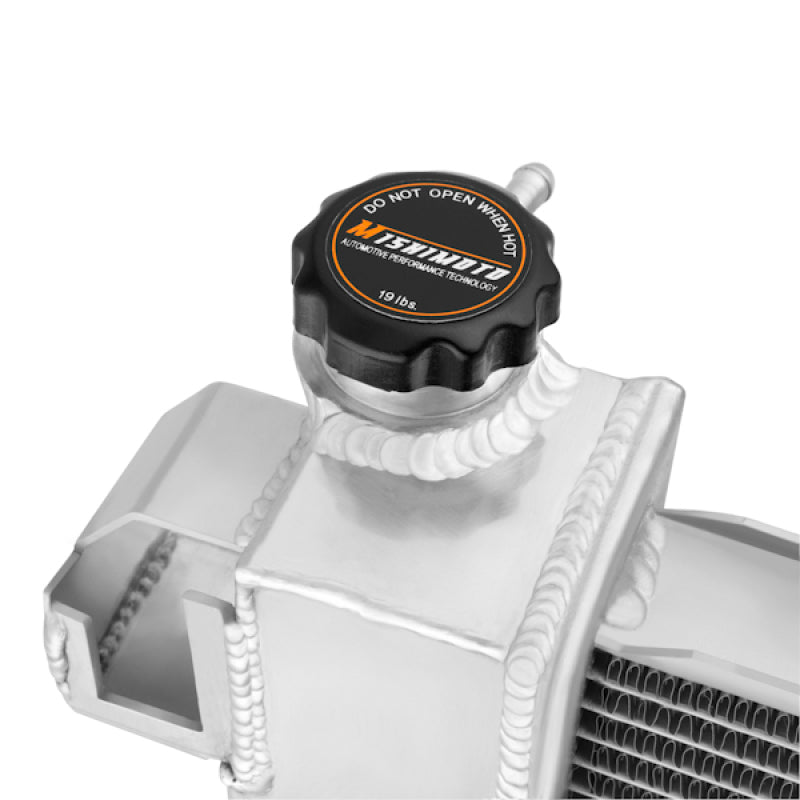

Radiator Cap Included: Yes
