McLeod Racing Part # MLR6430107M

McLeod Street Twin Steel Ford 1964-Up 260 To 351 Eng 1-1/8X26 Brz 157 Includes 28oz & 50oz CW - 6430107M

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

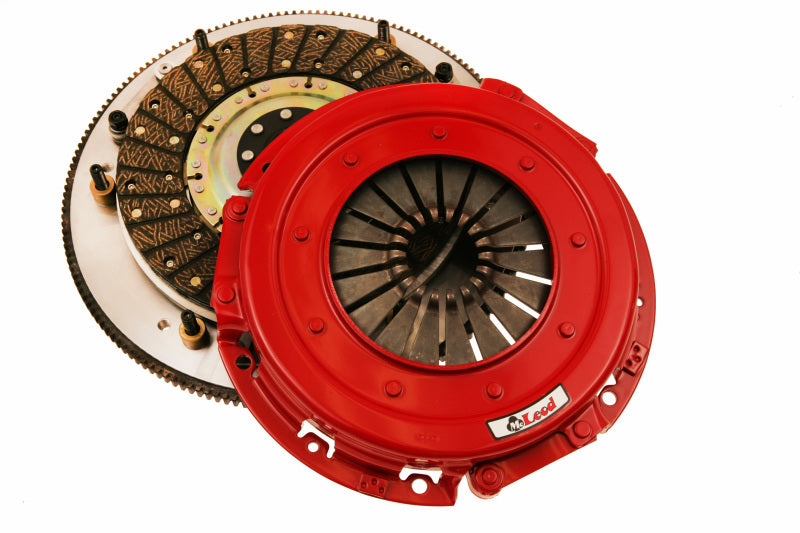

Original Street Twin: Steel: Ford 1963-95 SBF 289/302/351: 1-1/8 x 26 Spline: 157T: Aftermarket Transmission

Original Street Twin - Rated up to 1200 HP, this clutch system is perfect for high horsepower street cars applications. Designed for vehicles with superchargers, turbochargers, NOS or big cubic inch engines. Available with either organic or ceramic discs. Performance aluminum or steel flywheel included with the Original Street Twin system.

  • Counter Weight Kit if Required 563333 (sold separately)
  • • Street Twin. • Street Friendly. • Ceramic or Organic Discs. • Strap Drive. • Flywheel Included.

Specifications

Input Shaft Diameter (in.) 1.125
Input Spline Quantity 26
Disc Material Ceramic
Disc Style Segmented
Hub Style Solid
Clutch Disc Quantity 2
Pressure Plate Style Diaphragm
Counterweight Assist No
Alignment Tool Included Yes
Hardware Included Yes
Clutch Usage Performance
Pilot Bushing Included No
Throwout Bearing Included No
Flywheel Included Yes
Flywheel Material Billet steel
Ring Gear Tooth Quantity 157-tooth
Engine Balance Internal
Crankshaft to Flywheel Bolt Quantity 6-bolt
Quantity Sold as a kit.
Counter Weight Kit if Required 563333 (sold separately)
Horsepower Rating 1500
Disc Diameter (in.) 10.500

Note: Aftermarket Transmission

Installation
