SKU: SKU: MLR4916-00-07
Soft Lok: Chevrolet 55-85 SBC: 70-90 BBC: 10 x 1-1/8 x 26 Spline: 153T

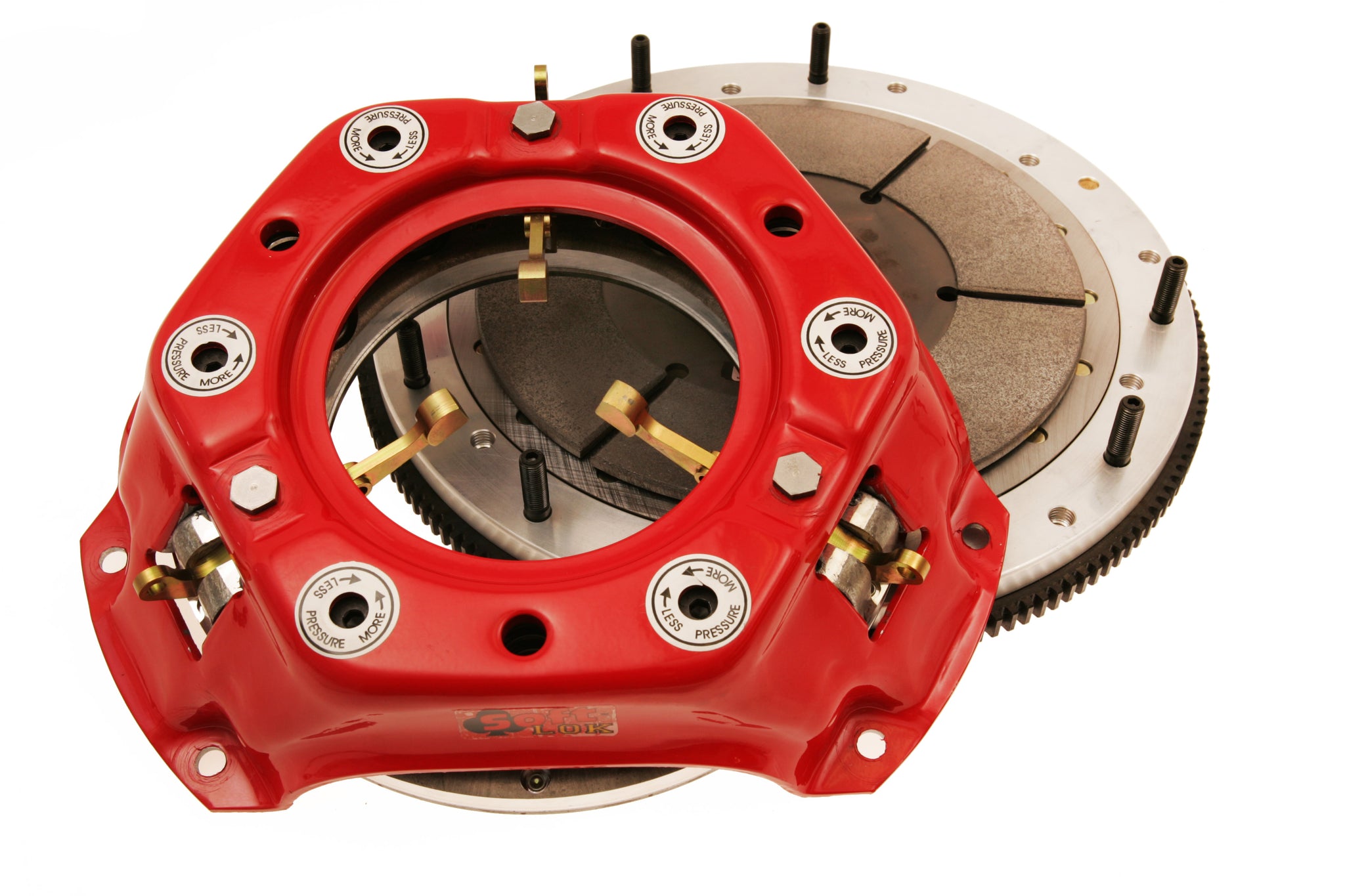

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
| Disc Diameter (in.) | 10.000 |
| Input Shaft Diameter (in.) | 1.125 |
| Input Spline Quantity | 26 |
| Disc Material | Sintered Iron |
| Disc Style | Full face |
| Hub Style | Solid |
| Clutch Disc Quantity | 1 |
| Pressure Plate Style | Long |
| Counterweight Assist | Yes |
| Alignment Tool Included | Yes |
| Hardware Included | Yes |
| Clutch Usage | Performance |
| Pilot Bushing Included | No |
| Throwout Bearing Included | No |
| Flywheel Included | Yes |
| Flywheel Material | Billet aluminum |
| Ring Gear Tooth Quantity | 153-tooth |
| Engine Balance | Internal |
| Crankshaft to Flywheel Bolt Quantity | 6-bolt |
| Quantity | Sold as a kit. |
| Rear Main Seal Style | 2-piece |
| Counter Weight Kit if Required | 560222 (sold separately) |
Note: Also fits 1991-2022 crate BBC 1pc Seal large crank flange.
