SKU: SKU: MLR360823

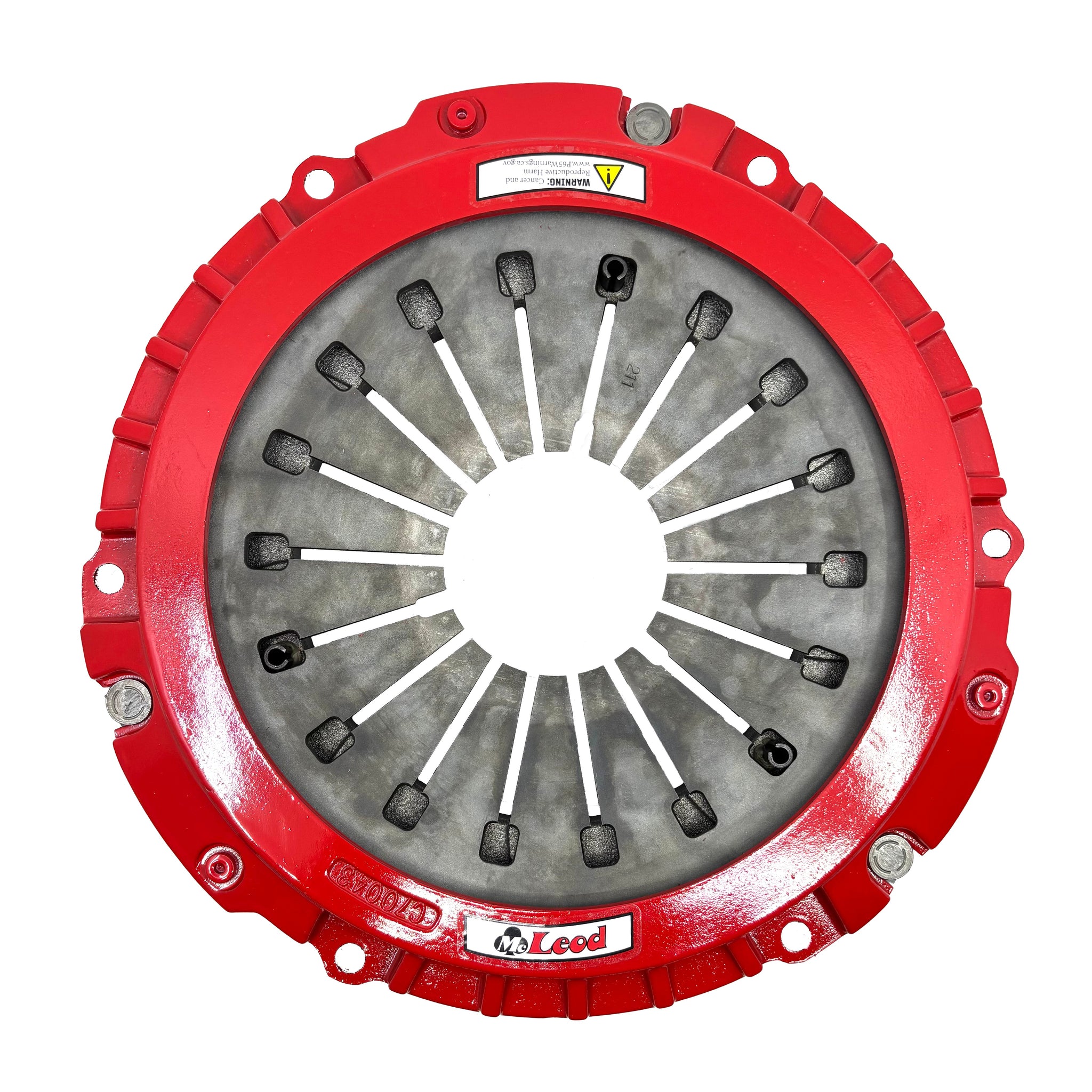

SPECIAL ORDER: Pressure Plate: Diaphragm: 11" Pull Style: Corvette: #2250: GM
McLeod Racing makes quality performance pressure plates for a wide variety of vehicles--domestic, imported, new, classic, you name it. We manufacture diaphragm, Borg & Beck, and Long types, with both aluminum and ductile-iron pressure rings. Not only that, we have applications designed for drag racing, road racing, oval tracks, and even the fabled dry lakes and salt flats of California, Nevada, and Utah. Chances are, we have what you need!
| Application | 1989-1996 LT1/LT4/LT5 Corvette |
| Pressure Plate Diameter (in.) | 11.000 |
| Pressure Plate Pattern | Borg & Beck Even Pattern |
| Bolt Circle | 11-5/8In. |
| Clamp Load | 2200 Lbs |
| Counterweight Assist | No |
| Bolt Holes Dia | 3/8-16 |
| Dowel Pins Required | No |
| Hardware Included | No |
| SFI Approved | Yes |
Note: SPECIAL ORDER made to order item. They come with a lead time of 4-6 weeks.
