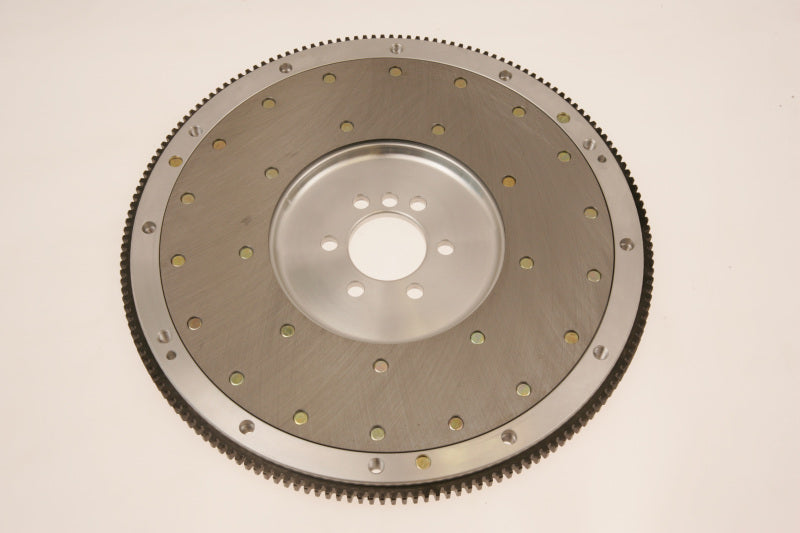

McLeod Flywheel Aluminum Chevy LS Motor 1997 Up 12in Steel Insert 168 - 560530

Flywheel: Aluminum: Chevrolet 1997-13 LS-X 6 Bolt Crank: 168T: 15 Lbs

Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.

• Replaceable Friction Surface
• • Billet Aluminum 6060-T6. • 1045 Steel Hardened Ring Gear. • SFI rated.

Specifications

Note: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.

Installation

• BoltTorqueSpecs_McLeod(11_2024).pdf
• BreakInProcedure_McLeod.pdf
• McLeodProductInstructions.pdf
