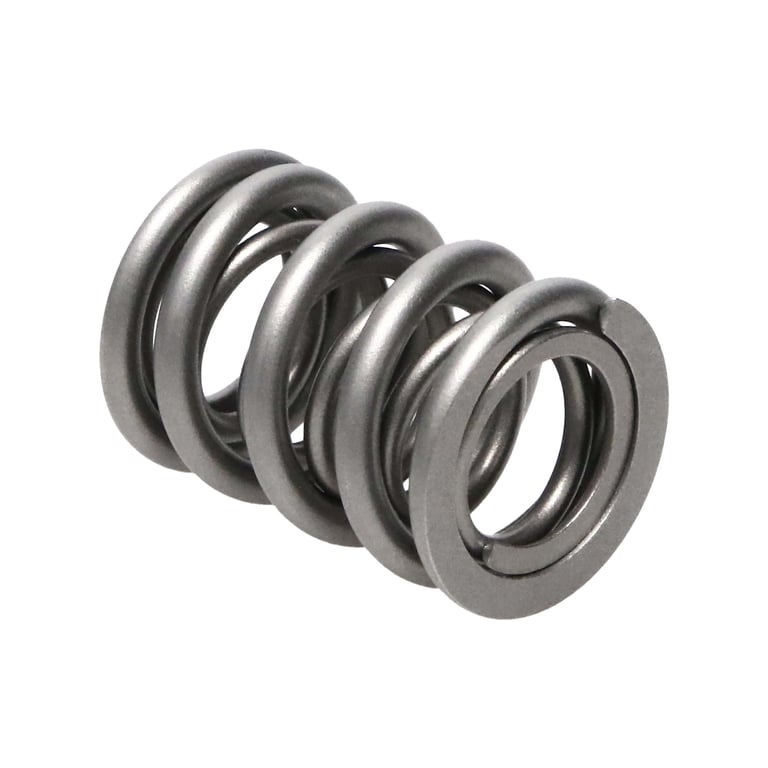

Manley Valve Spring, SPRING-1.677 TRIPLE - 221449-16

From drag strips to short track and endurance circuits, the Manley NexTek® series is engineered for serious racers. NexTek® springs resist pressure loss and valve-train degradation even in the most demanding race conditions. That means more consistent spring force deep into a run, reduced valve bounce, and improved overall stability for high-RPM performance. Built to outperform and outlast in real-world competition.

Features

• Specially processed premium-grade chrome silicon that is virtually free of impurities or surface irregularities
• Better valve train stability and component life
• Ideally suited for Sportsman Drag Racing applications
• Available in polished versions to reduce friction, improve fatigue life, and minimize load loss

Specs

• Manley Valve Spring, SPRING-1.677 TRIPLE
• Product Market: Domestic
• Average Gram Weight: 195
• Product Type: Engine Valve Spring
• Valve Spring Outer Diameter: 1.677
• Valve Spring Inner Diameter: 0.632
• Valve Spring Quantity: 16
• Valve Spring Series: NexTek? Series
• Valve Spring Material: Chrome Silicon
• Valve Spring Type: Triple
• Valve Spring Coil Bind Height: 1.142
• Valve Spring Rate: 720
• Valve Lift - Maximum: 1.000
• Installed Pressure and Height: 350 @ 2.200
• Open Pressure and Height: 1070 @ 1.200
• Industry: Automotive
• Out of Stock Message: Call for Availability
• Title: Manley Valve Spring, SPRING-1.677 TRIPLE
• Prop 65 Yes/No: Yes
• Prop 65 (C, R or CR): CR
• Prop 65 - Short Label: Prop 65 Warning Label.JPG
• Engine Type: ICE
