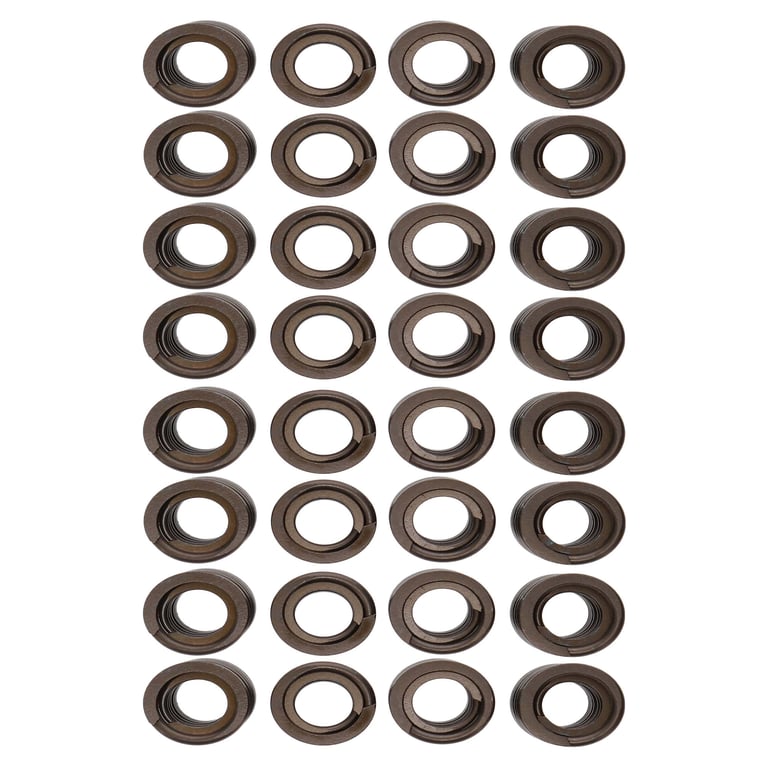

Manley Toyota 3UR-FE Valve Spring and Retainer Kit (Use factory valve locks) - 26205

Manley Performance Valve spring and Retainer Kits take the guess work out of making your valvetrain race-ready. Engineered for maximum durability, stability, and precision in high-performance and racing applications, these chrome-silicon alloy springs provide exceptional fatigue resistance and high-tensile strength, ensuring consistent valve control at extreme RPMs. Save time and money with these kits, featuring premium springs, retainers, designed to handle aggressive aftermarket camshafts.

Features

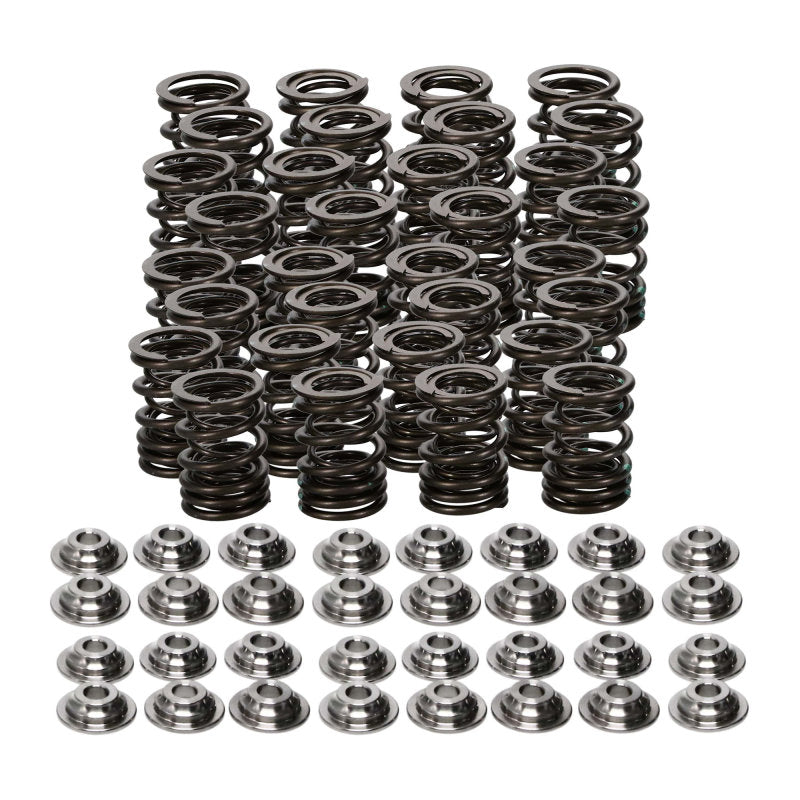

• Includes matched Valve Springs, Retainers, and Locks (if part number ends in "K"). Spring Locators included in some applications.
• Designed to handle aftermarket camshafts and up to 10,000 RPM

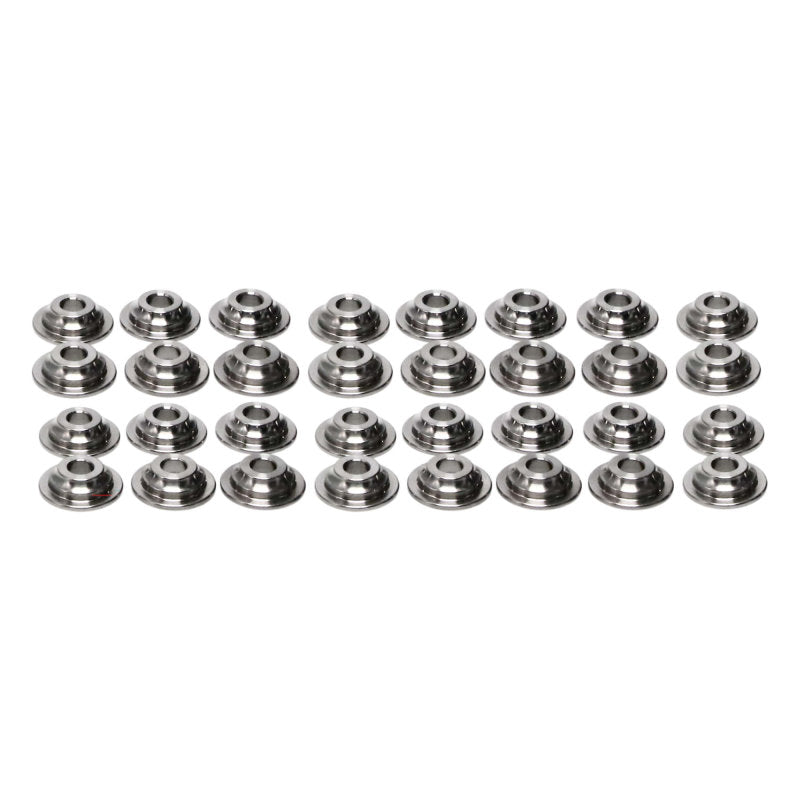

• Heat treated aerospace grade titanium retainers CNC machined to exacting tolerances
• Includes 7 Machined Valve Locks manufactured from the premium quality heat treated steel

Specs

• Max Lift: 0.480"

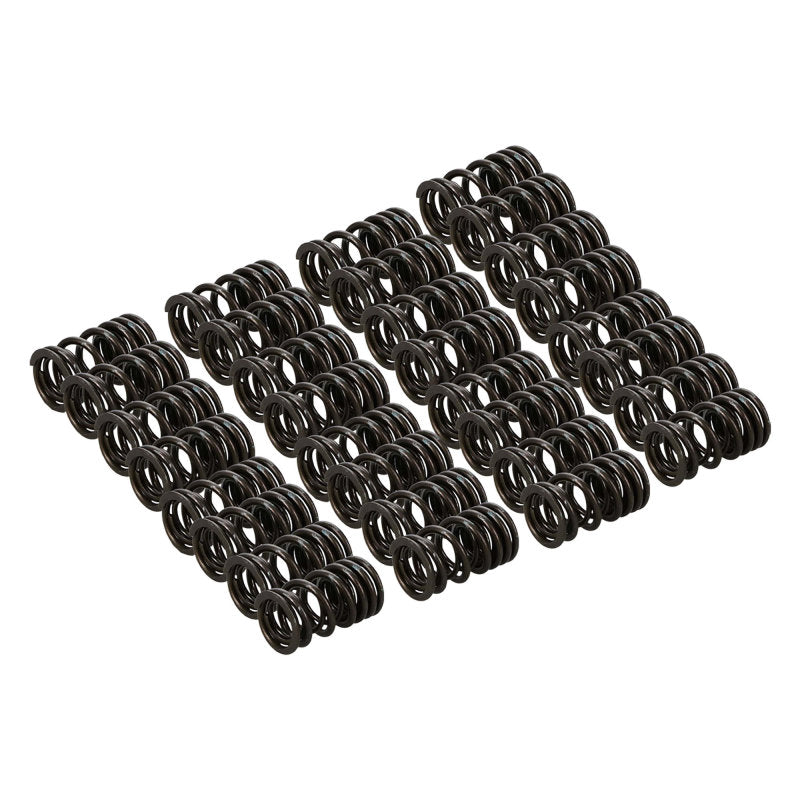

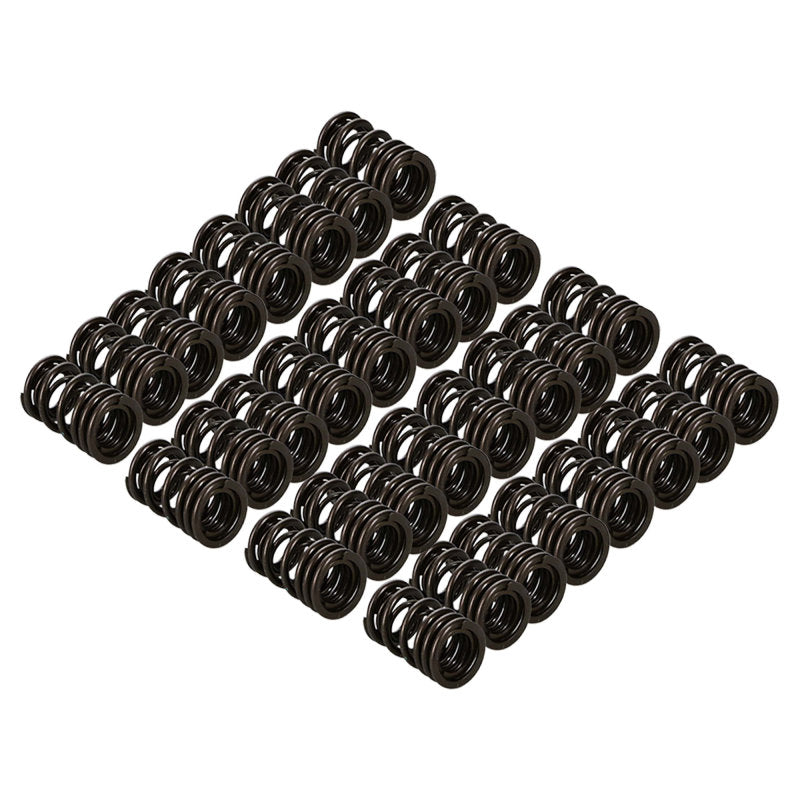

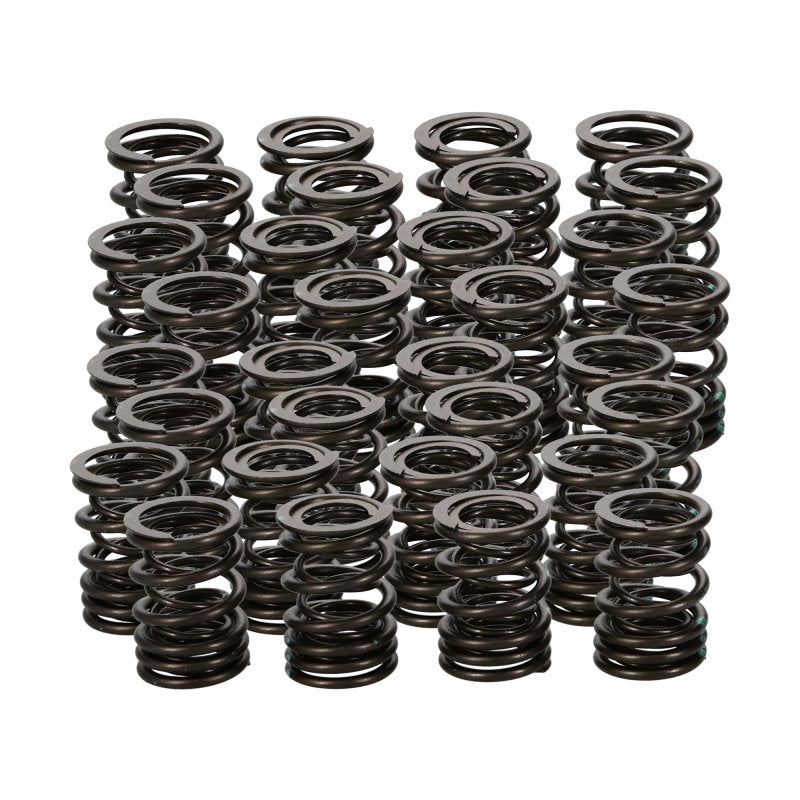

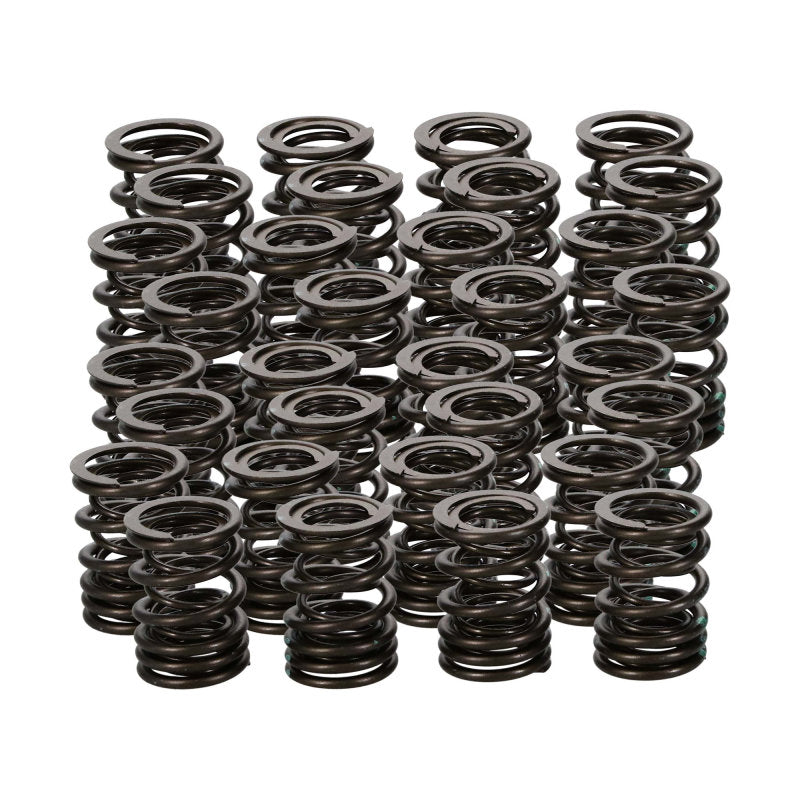

• Spring: 22205-32

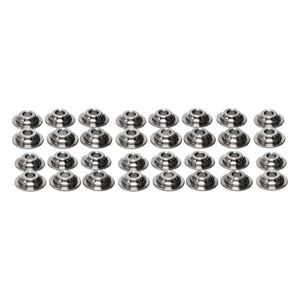

• Titanium Retainer: 23205-32
• Manley Sport Compatct Valve Spring and Retainer Kit
• Stem Diameter: 5.50
• Valve Stem Diameter: 5.50
• Product Type: Valve Spring Kit
• Valve Spring Outer Diameter: 0.990
• Valve Spring Inner Diameter: 0.710
• Valve Spring Quantity: 32
• Valve Lift - Maximum: 0.480
• Installed Pressure and Height: 75 @ 1.450
• Open Pressure and Height: 205 @ 0.970
• Valve Lift - Stock: 0.430
• Valve Spring Rate: 265
• Valve Spring Coil Bind Height: 0.920
• Valve Spring Retainer Step Height: 0.080
• Valve Lock Angle: 6
• Industry: Automotive
• Title: Manley Valve Spring & Retainer Kit - Toyota Tundra 5.7L 3UR-FE (Uses factory spring seat) - Valve Locks NOT Included
• Prop 65 Yes/No: Yes
• Prop 65 (C, R or CR): CR
• Prop 65 - Short Label: Prop 65 Warning Label.JPG
• Engine Type: ICE
