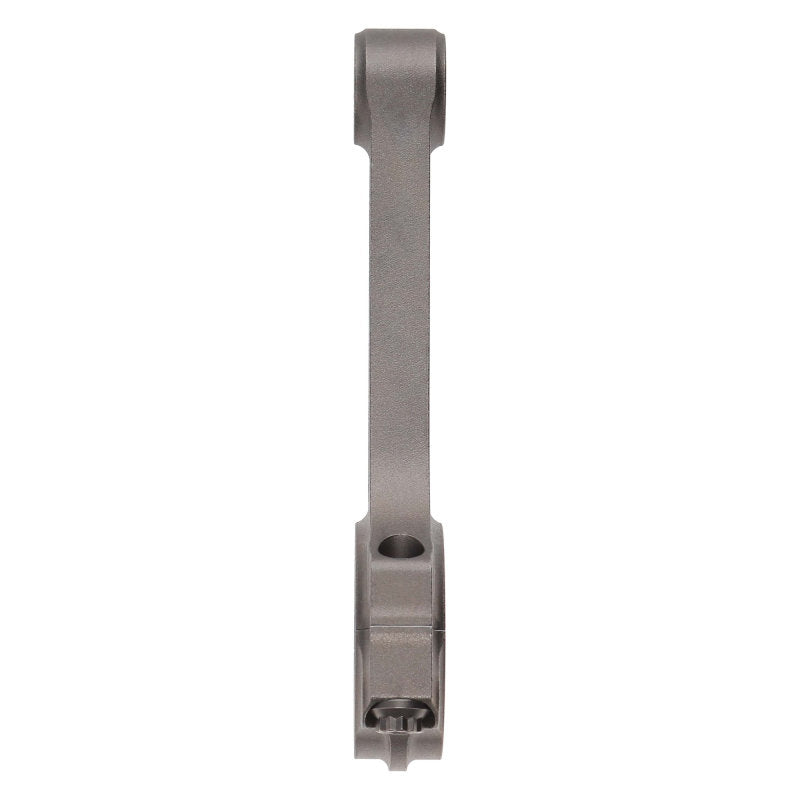

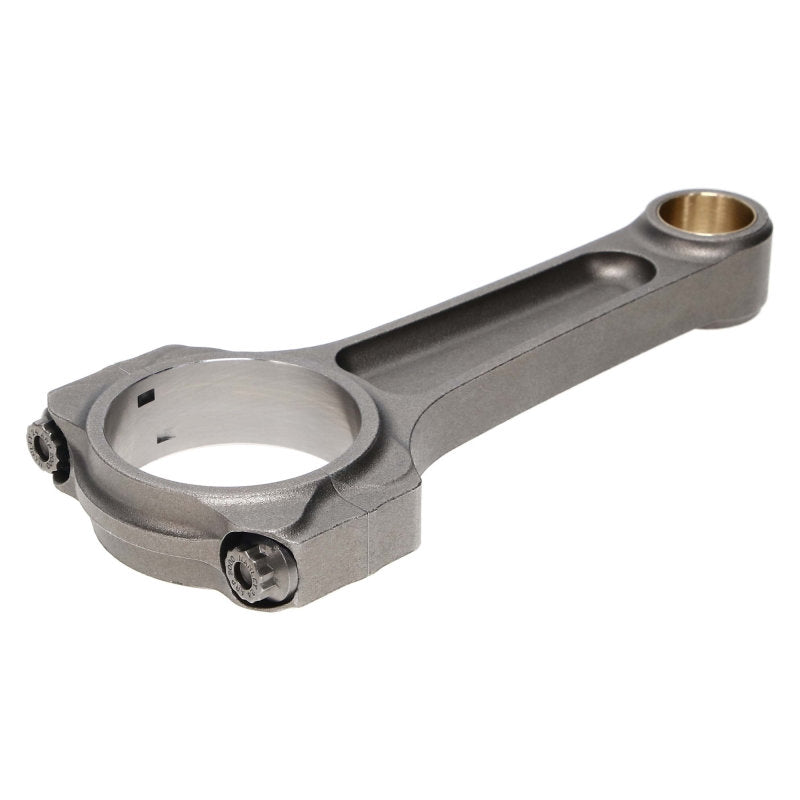

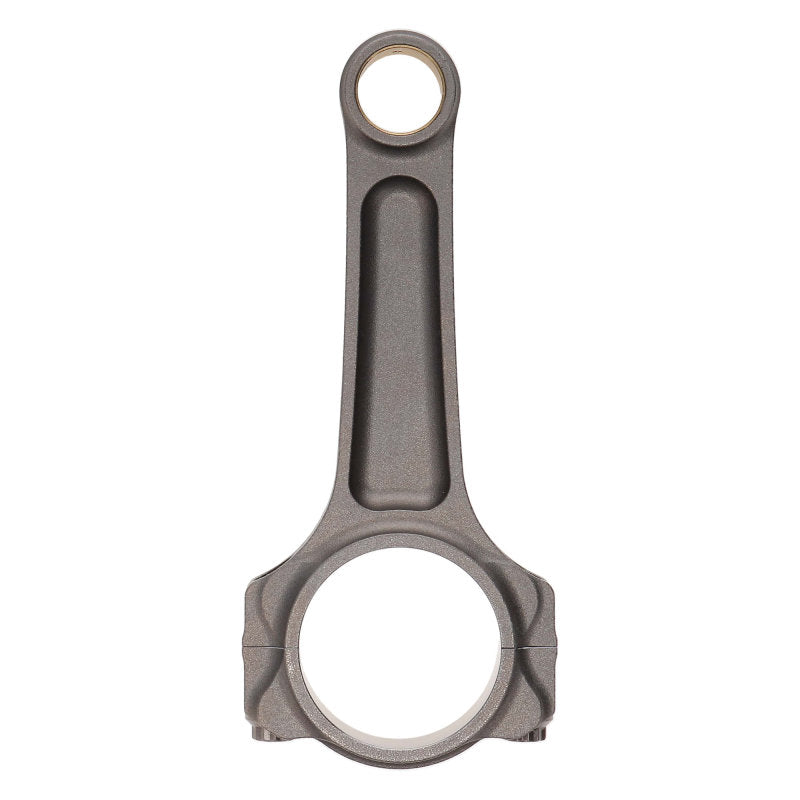

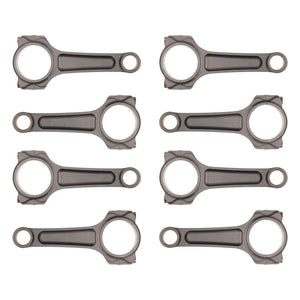

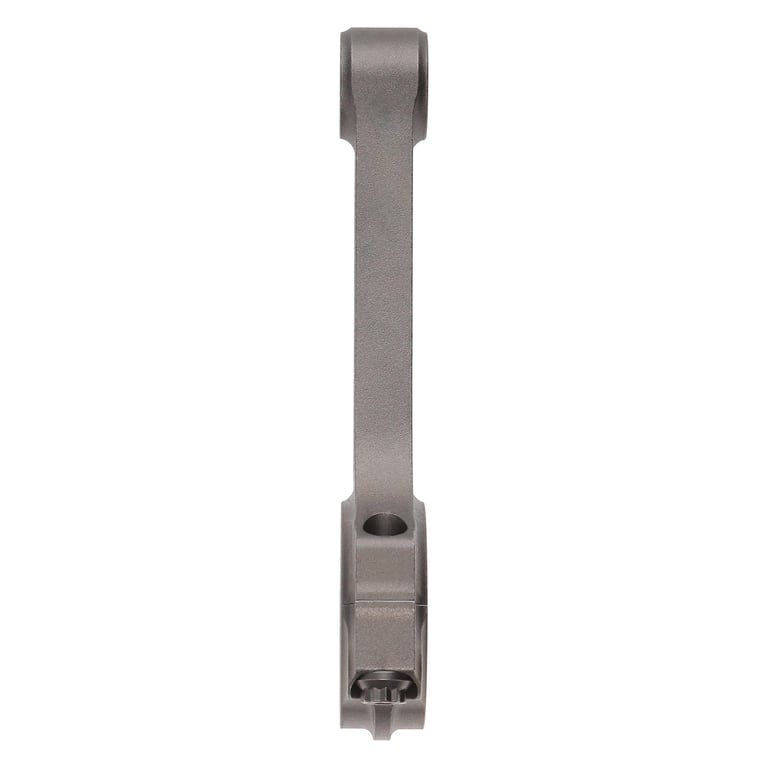

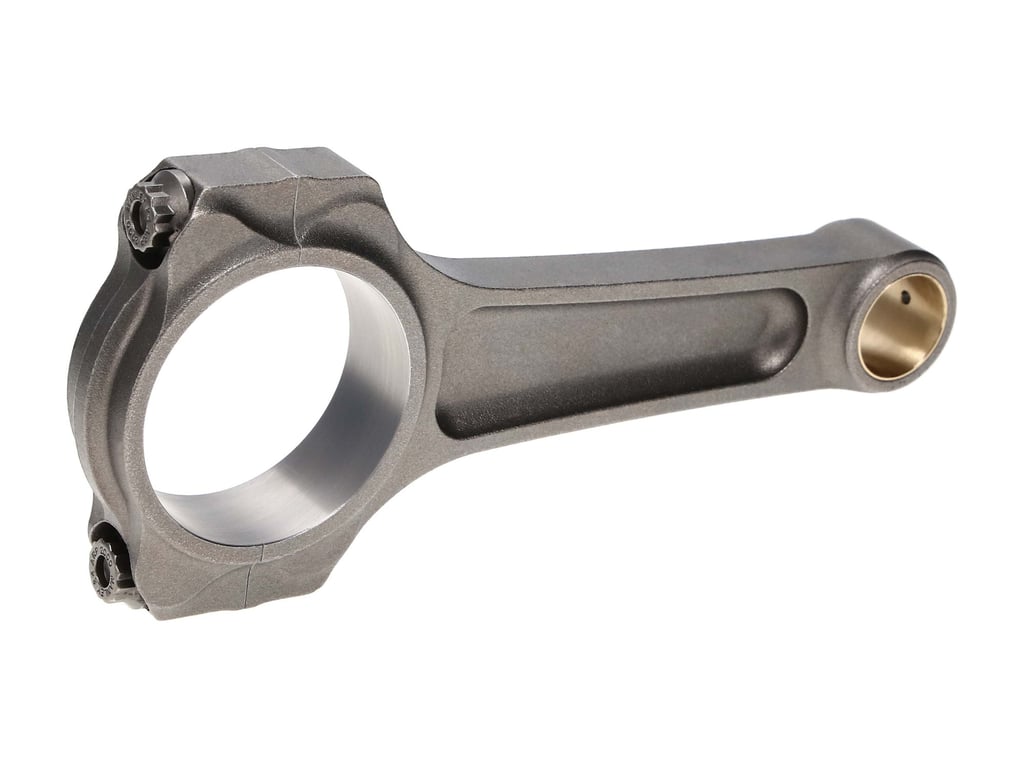

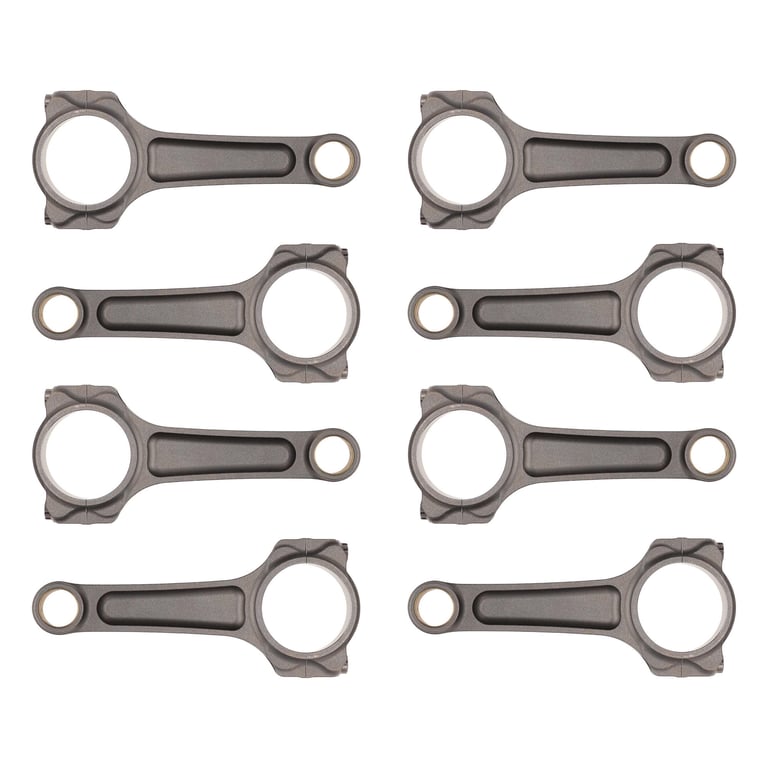

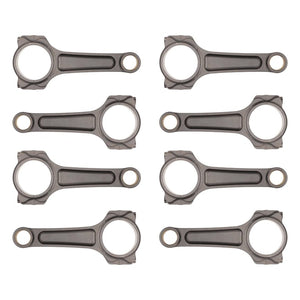

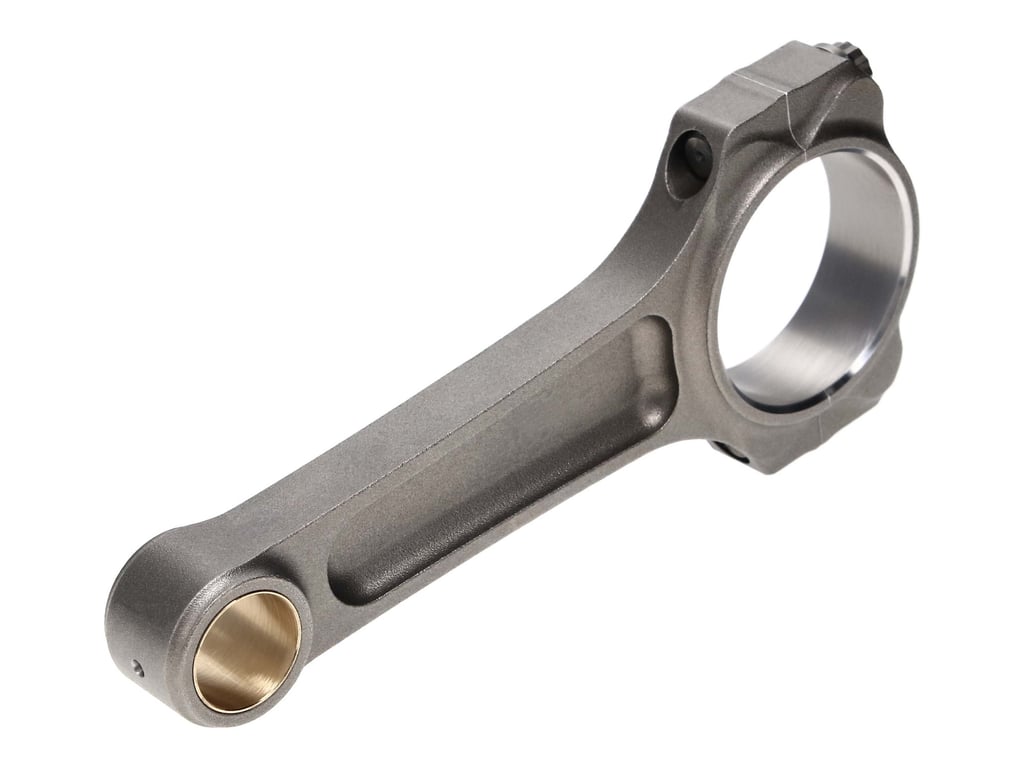

Manley Small Block Chevy .025in Longer LS-1 6.125in Pro Series I Beam Connecting Rod - Single - 14359-1

Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.

Features

• Versatile Weight Options: Tour Lites, Light, Standard, Heavy
• Designed for ultimate performance with superior materials: forged 4340 or 300M vacuum degassed steel alloys
• NHRA Legal Certification for some SKUs - Stock and Super Stock

Specs

• Center To Center Length: 6.125 in
• Big End Bore: 2.225 in
• Pin Bore: 0.9281 in

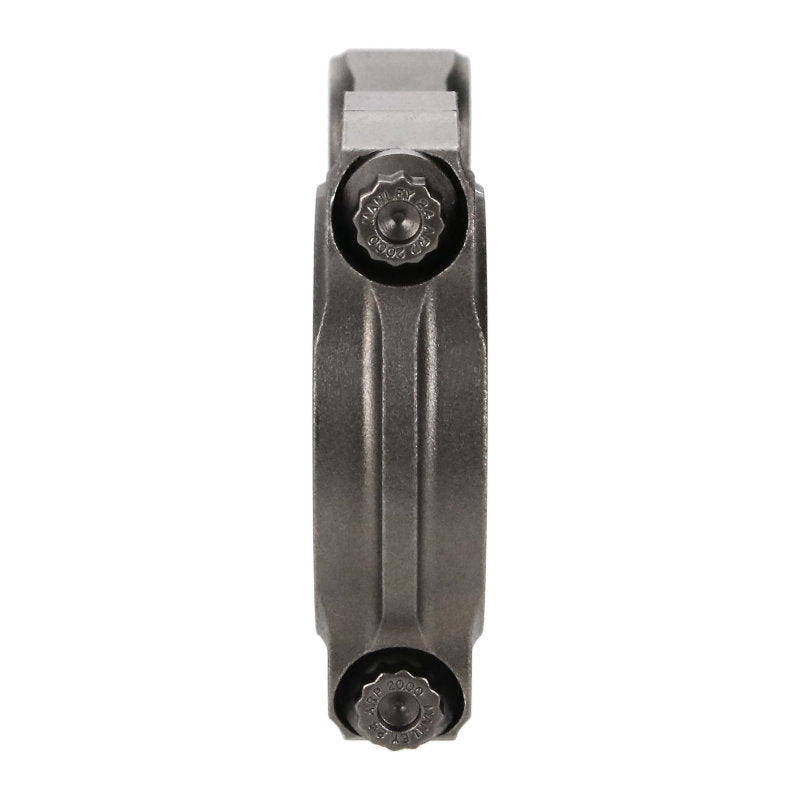

• 7/16" ARP 2000 Bolts
• Approx. HP Rating: 700+
• For LS engines with pistons ready to accept 6.125” length rods. Stock LS rods are 6.100” long. Note the pin bore is .9281”. Stock LS pins are .945” diameter. The 14359-8 has no offset on the crank journal, same as the stock LS connecting rods
• Wrist Pin Diameter: 0.927
• Connecting Rod Series: Pro Series I-Beam
• Connecting Rod Sub-Series: Lightweight
• Product Type: Engine Connecting Rod
• Rod Quantity: 1
• Rod Bolt Material: ARP 8740
• Connecting Rod Type: I-Beam
• Pin End Width: 1.000
• Connecting Rod Material: 4340
• Industry: Automotive
• Out of Stock Message: Call for Availability
• Prop 65 Yes/No: Yes
• Prop 65 (C, R or CR): CR
• Prop 65 - Short Label: Prop 65 Warning Label.JPG
• Engine Type: ICE
• Make: Chevrolet
• Engine: LS
• Product Market: Domestic
• Average Gram Weight: 615
